01.
STABILITY & COMFORT
The Proaim VCT Universal Shoulder Baseplate is designed for Filmmakers seeking high-performance & sturdy camera support for their Hefty Cameras.
Made with High-grade CNC aluminum, the baseplate is designed to withstand the rigors of production life.

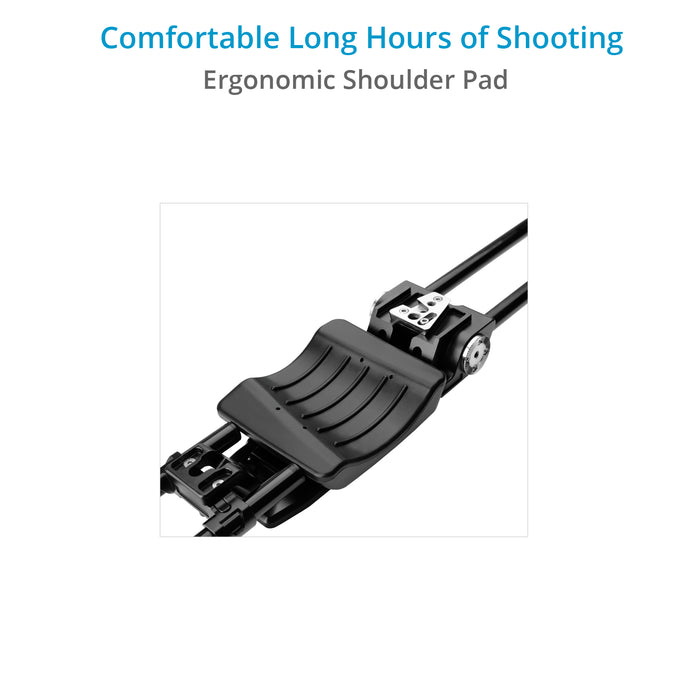

The shoulder pad allows the rig to sit comfortably on your shoulders by eliminating the discomfort caused by the camera's weight on your shoulder during shooting.
Make Your Shoulder Comfortable & Your Shots More Stable!
02.
SECURITY & BALANCE
This Universal Camera Baseplate allows quick attaching and detaching of your camera setup fastened by Safety Pins and Ratchet Knobs.

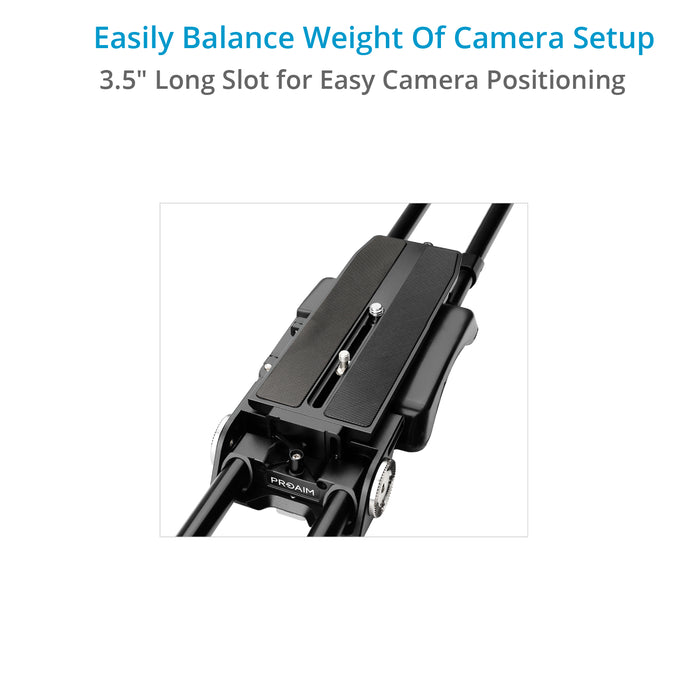

It has a 3.5" long slot that allows quick positioning of your camera & accessories to evenly distribute the weight of your camera.
The top of the camera baseplate has two rubber strips to protect your camera from scratches.

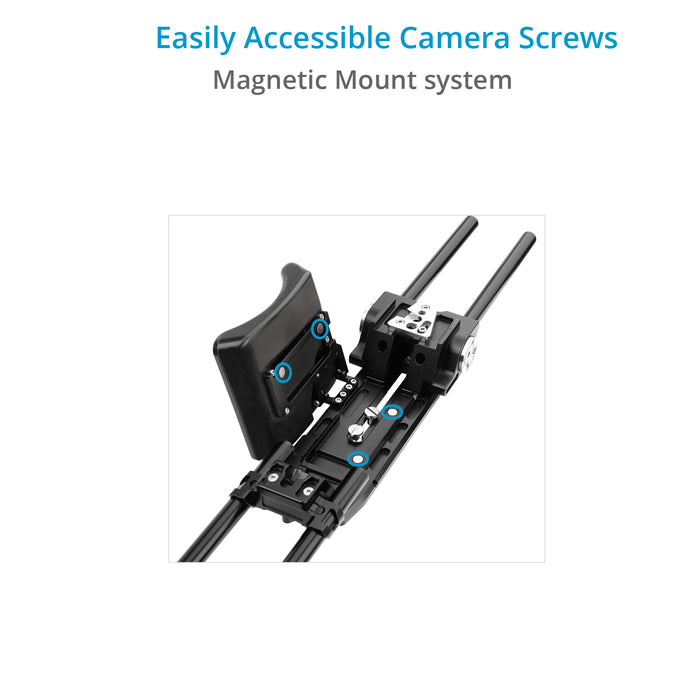

Also, it has a magnet mount system that allows easy access to the camera screws; just by flipping the camera base plate.
03.
CONVENIENT MOUNTING

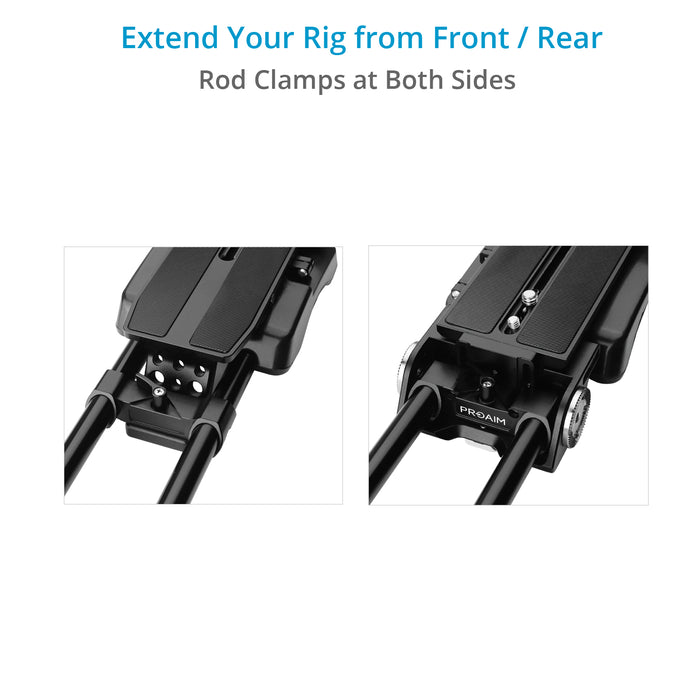

The front and rear have 15mm rods to accommodate more camera accessories.
Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories.

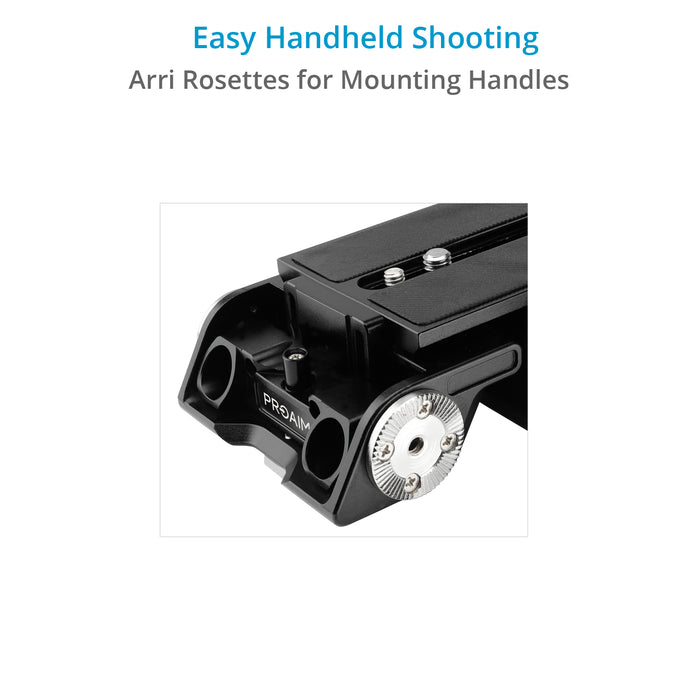

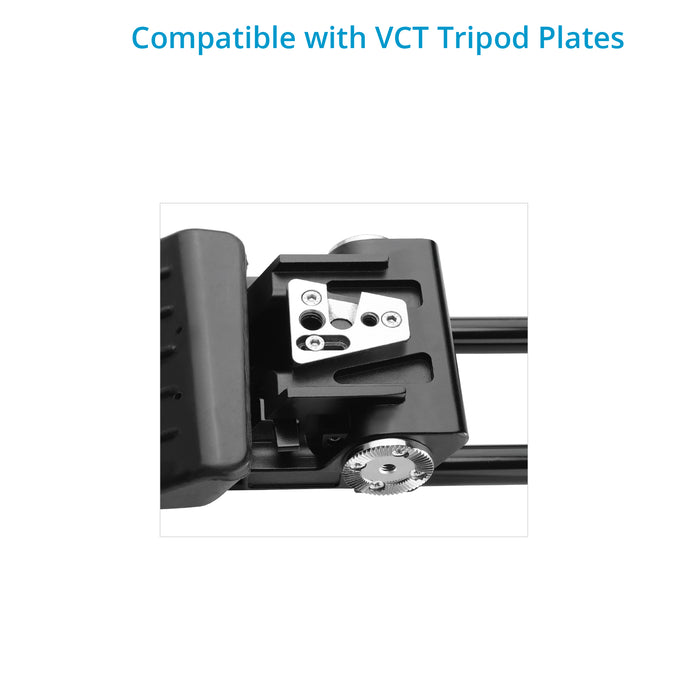

It is designed with two ARRI-compatible rosettes for mounting handle attachments and a standard V-lock plate compatible with most VCT tripod plates.

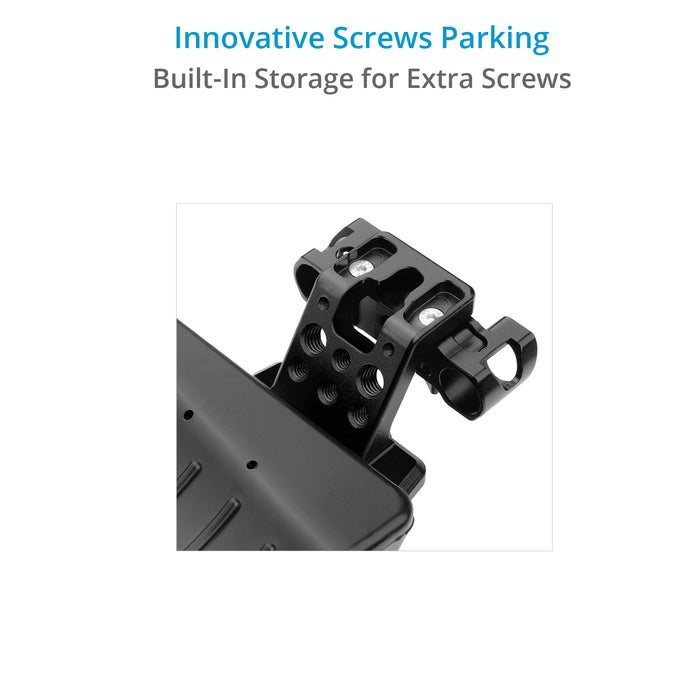

The shoulder plate has 1/4"-20 and 3/8"-16 threaded holes for parking & storing additional screws.
SPECIFICATIONS
Construction
Base plate: High-Grade CNC Aluminium
Shoulder Pad: High-Quality Rubber
Mounting
Camera: Universal, ¼”-20 & 3/8”-16 Screws
Tripod: ¼”-20 & 3/8”-16 / V-Mount
Rod Ports
2 x Ø 15mm, 300mm Long Female Rods
2 x Ø 15mm, 200mm Long Female Rods
Compatible Cameras
RED, Arri, Sony, Canon, Panasonic, Blackmagic
Compatible Tripod Plate
Product Weight (with packing)
1.900kg / 4.188lb
Product Weight (without packing)
1.2kg / 2.64lb
Dimensions
IN THE BOX
Proaim SBP-02 VCT Shoulder Base Plate
2 x Ø 15mm, 300mm Long Female Rods
2 x Ø 15mm, 200mm Long Female Rods
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
What's the difference between this and the SBP-01 VCT shoulder plate?
The main difference between P-SBP-01 & P-SBP-02 models is the base plate. The baseplate of the P-SBP-02 model has a 3.5" long slot that allows quick positioning of your camera & accessories to evenly distribute the weight of your camera.  Also, it has a magnet mount system that allows easy access to the camera screws; just by flipping the camera base plate. Whereas the baseplate of the P-SBP-01 features a front-to-back sliding plate that allows quick positioning of your camera & accessories and optimal adjustment of your camera's weight distribution.
