Proaim Supreme Professional Camera Dolly System
With Telescopic Bazooka & Flight Case
Professional Filmmaking Equipment
For Moving Camera Shots
Proaim Supreme Allows You to Achieve Most Subtle & Powerful Camera Moves
Immediately Improving the Production Value.
A Full-Fledged Production Tool with Extra Comfort and Stability!
Accomplish taking stunning moving camera shots with our Proaim Supreme Dolly with Telescopic Bazooka - quickly, easily and affordably! This versatile design can be configured as a 3 or 4-Leg Dolly when combined with Proaim’s Straight Aluminum Track or Flexi Track. The Dolly comes with adjustable Center Column, a Seat that pivots 360° around the column, Foot Platforms, a Push bar and a Telescopic Bazooka. Its components are of high-grade CNC aluminum construction ensuring protection, durability, and stability, with a load capacity of up to 200kg/441lb. It's capable of negotiating an extremely tight circle of 98”. This ingenious engineering concept provides virtually unlimited camera positioning as the dolly rolls.
Proaim Supreme Dolly is a wonderful piece of equipment to own when making a movie because the movement of the camera adds to your project immediately improves the production value. It’s strong enough to hold the camera and camera operator while pushed or pulled by a dolly grip. This is a vital piece of equipment for any Videomaker / Filmmaker and serves an important purpose in a Film.
"WHAT YOU SEE IS WHAT YOU GET"

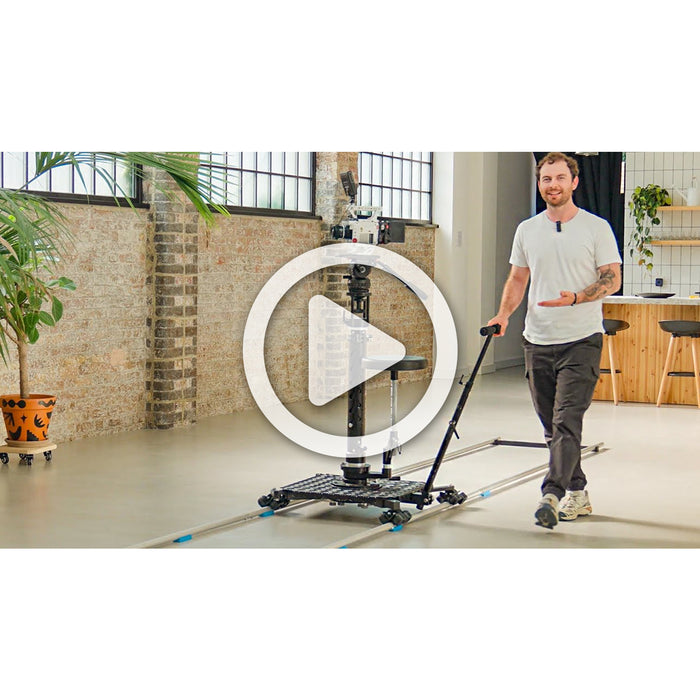

Video is for demonstration only
Actual Product may vary due to Product Improvements

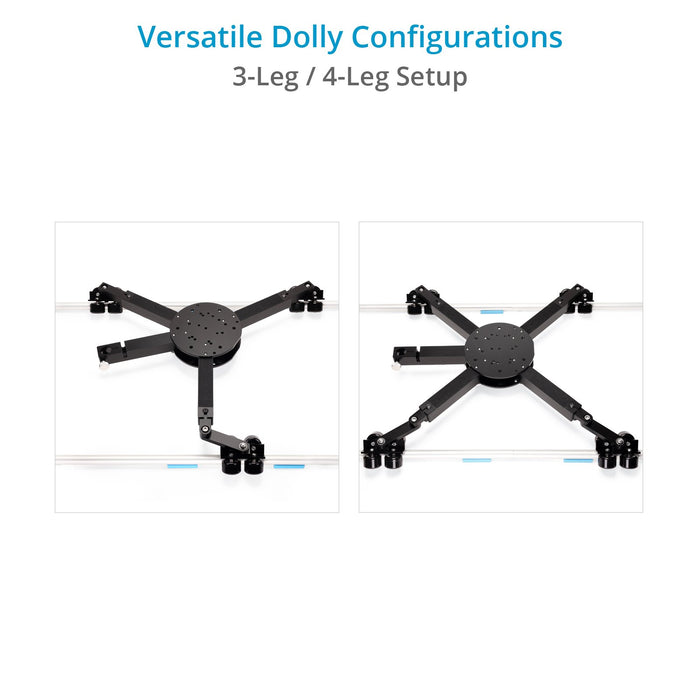

Incredible Flexibility
The versatile design allows configuration as a 3- or 4-Leg Dolly. The simple 3-Leg Dolly is an extremely portable tracking camera dolly if one needs to work alone. Add a fourth leg, and you can configure it to a fully rideable 4-Leg Dolly with Center Column, Telescopic Bazooka, and Comfortable Seat.

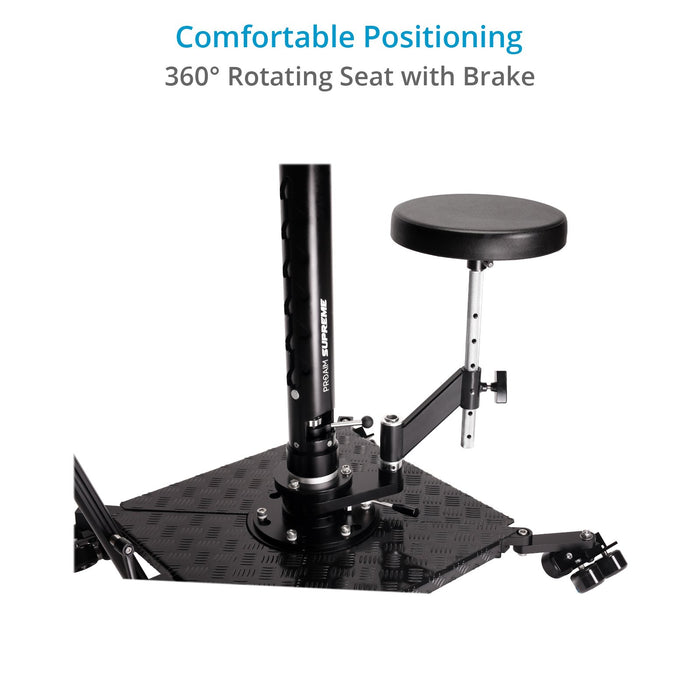

360° Pivoting Seat
The swivel feature allows your body to move effortlessly in sync with the panning motion of your camera fluid head. It is equipped with a break on its base to stop the movement. Fix your seat movement and shoot freely!

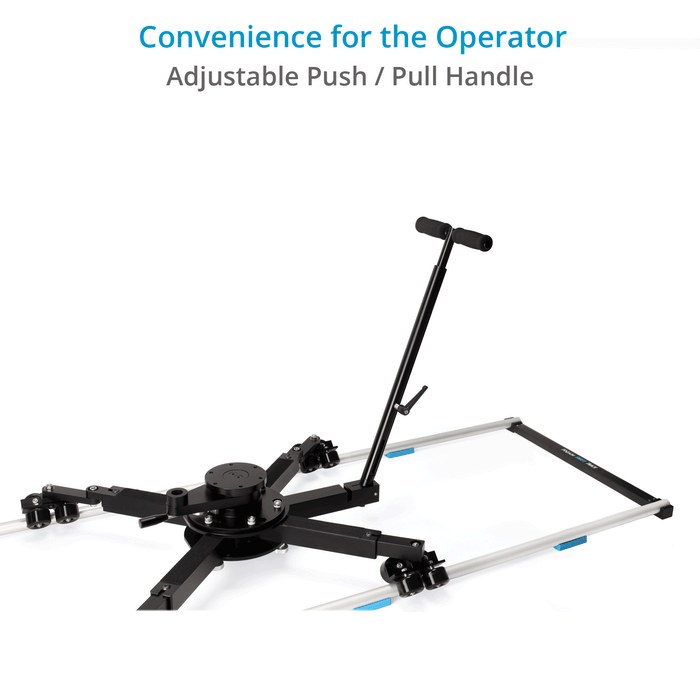

Push Bar Steering
The push bar permits adjusting the length and angle to meet the needs, which ensures more convenience for the dolly grip.
Tracking Capability
The Dolly uses a unique wheel system that can follow the straight, curved and non-parallel track of any length, and a diameter between 1”-1.5”. The floating wheels move in and out to compensate for any deviation in the spacing. This makes setting-up-a-run on Flexi Track almost instantaneous.

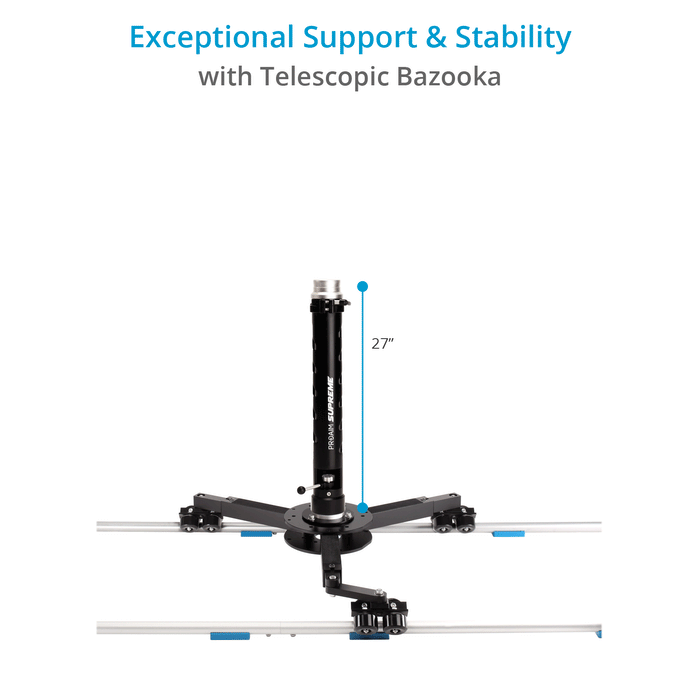

Telescopic Bazooka
Telescopic Bazooka (known for its stability & solid design), when attached to Supreme camera dolly, provides a myriad of camera mount configurations using optional accessories. It is extendable from 81cm-117cm / 32”-46”, and enables instant adjustment of the camera position with ease and comfort.

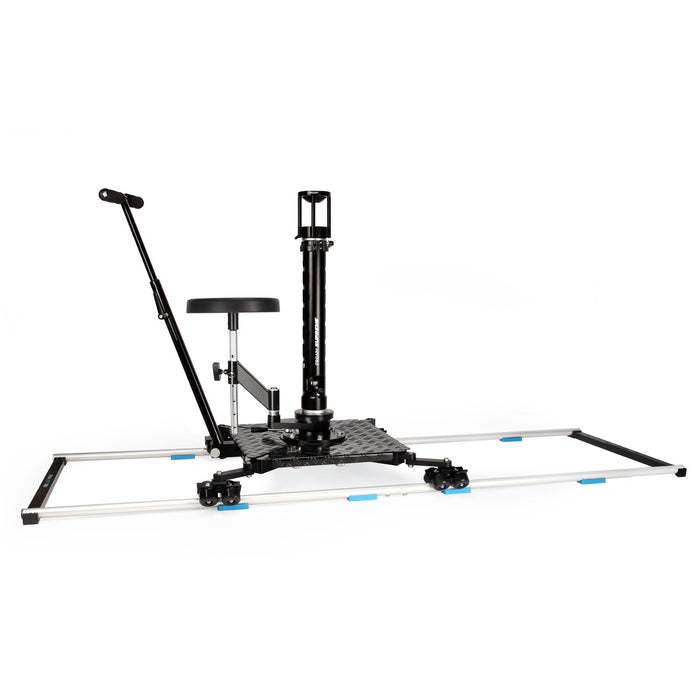

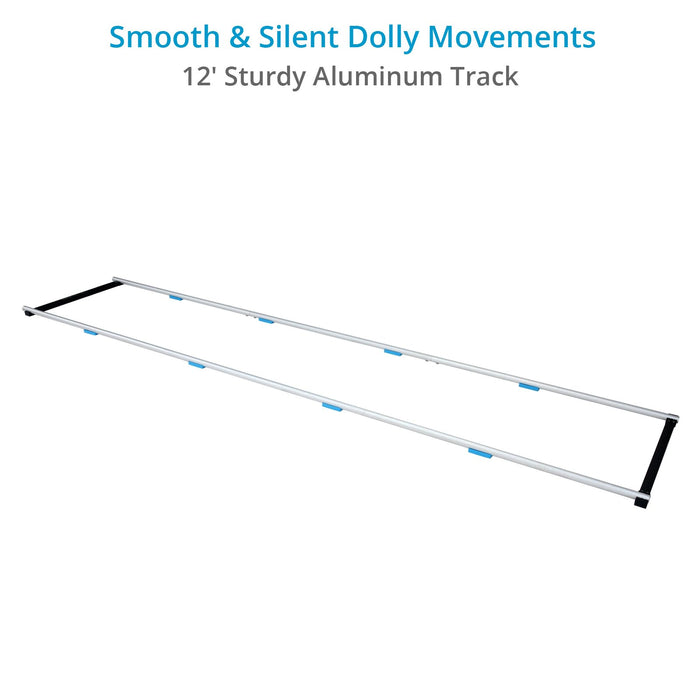

Straight 12ft Track
The Dolly Track is standard 12' long made of silver aluminum and is extremely stable and has ultra-smooth running surface. The Supreme Camera Dolly with Straight Track completes the moving shots without any intricacy. The track rails have a center distance of 28"/71cm with 1.25" in diameter. The track also supports other types of camera dollies providing their wheels match with our rail track.
We also provide two different types of wedges to shim up the track and to maintain a sturdy straight base on smooth and uneven surfaces.
IMAGE GALLERY
Ultimate Stability for Advanced Video Shooting

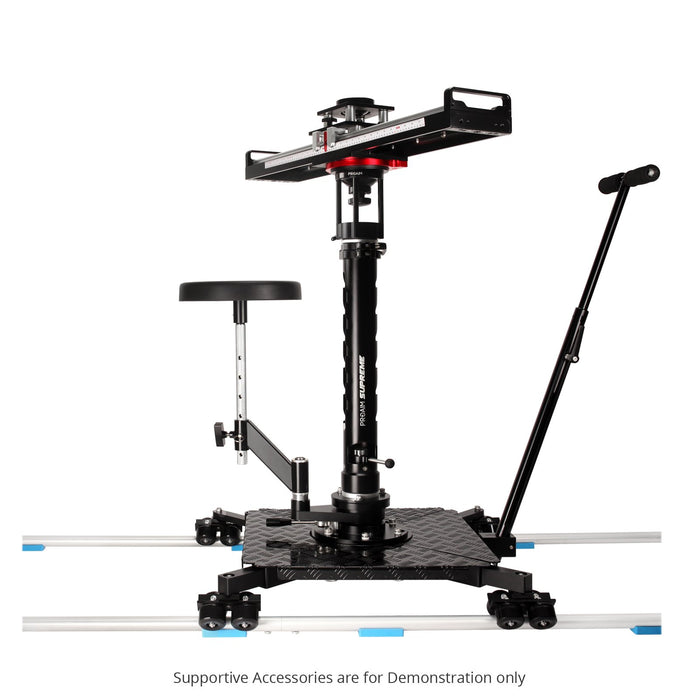

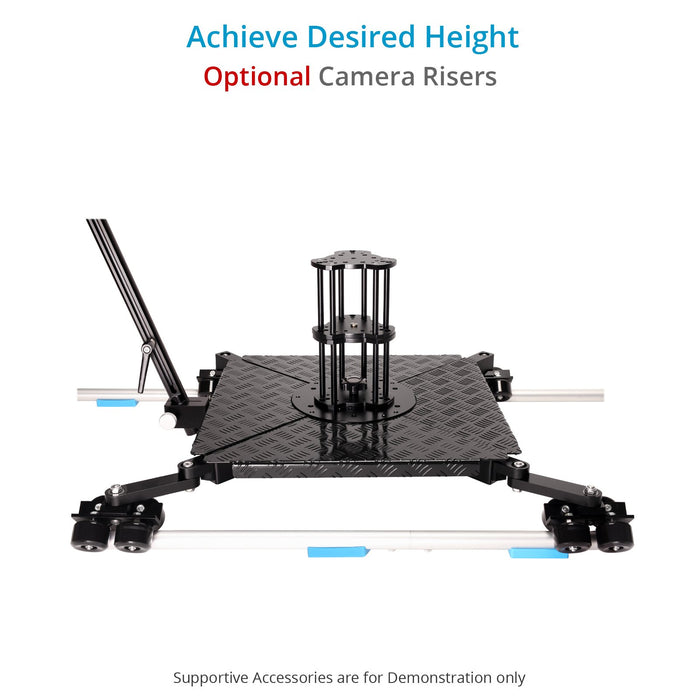

The Supportive accessories are for demonstration purpose only.
DOLLY
- Construction: CNC Machined Aluminum
- Weighing Capacity: up to 200kg/441lb
- Mounting Option of Dolly: 3 or 4 Leg
- Height from ground: 5.5”
- Compatible Track Distance: 24.5-28”
- Compatible Track Rail Diameter: 25-40mm / 1-1.5”
- Other Compatible Tracks: Proaim Stream Track (TK-STRS-00), (VLVT-TRK)
- Dolly Weight with Hard case: 35.5kg / 78.1lb
- Hard Case Dimensions (LxWxH): 69x58x32 cm
BAZOOKA
- Construction: High-grade CNC Aluminum
- Weighing Capacity: up to 200kg/441lb
- Maximum Height: 46"/117cm
- Minimum Height: 32"/81cm
- Bowl: 100mm
- Bazooka Weight with Hard case: 33.5kg / 73.7lb
- Hard Case Dimensions (LxWxH):85x45x32 cm
12ft TRACK
- Rails: High-grade Aluminum
- Weighing capacity: up to 400kg / 880lb
- Center to Center Distance: 28"/71cm
- Diameter of Rails: 1.25"
- Total Sections: 6
- Length of Each Section: 4ft
- Track Weight: 7kg / 15lb
- Weight with packing: 7.5kg / 16.5lb
- Packing Dimensions: 132x19x15 cm
Q : How much camera weight will the bazooka hold?
Ans : The bazooka can take upto 20kg camera weight.
Q : Will I be able to connect my Cartoni Gamma head with its 100mm bowl directly to the bazooka?
Ans : Yes, the bazooka can take the Cartoni Gamma 100mm head and rather it can take any head with 100mm bowl.
Q : Does the track fold easily into smaller sections?
Ans : Yes, the track has 4ft sections that are connected together to make it 12ft.
Q : What weight will the platform seat hold?
Ans : The platform seat can easily hold upto 450lbs.
Q : Is the dolly firm and steady when negotiating complex moves?
Ans : Yes, its absolutely stable in any kind of moves.
Q : What materials are used in its construction?
Ans : The dolly and bazooka are made up of Aluminum , the seat is made up of mild steel and all fasteners are of stainless steel (SS) for more durability.
Q: What is the maximum height of bazooka?
Ans: The bazooka can be extended upto 57”.
Q: Can you sell 50ft long track?
Ans: We sell this track in 12ft length. You can buy extra track of 12ft length to make it 50ft.
Q: Will there be any alignment problem in using more than one track?
Ans: No, there will be no problem while using more than one track. We provide the blue supports that help to keep the track in a stable position.
Q: Can I use tripod with this dolly?
Ans: Yes, you can use this dolly as a 3-leg dolly in order to use this with tripod.
Q: What will be the center distance for using this dolly?
Ans : This dolly has adjustable wheel leg that allows you to use it on track from 25” to 28” center distance.
Q: Will 75mm Fluid head fit on the bowl?
Ans: The bowl accepts 100mm fluid head only.
Q: Is the seat fixed or rotating?
Ans: The seat is 360” rotating.
Q: What is wheel material?
Ans: Wheels are made up of polyurethane.
Q: Will this dolly work on flexi or curved track?
Ans: Yes, the dolly will work on flexi and curved tracks.
Q: What is the diameter of track?
Ans: The dia of track is 1.25”.
Q: How heavy is the dolly itself?
Ans: The dolly itself is approx. 40kg.
Q : What is the warranty?
Ans : We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
Q : Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans : Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 14 days and you get a 100% refund.
Q : Who handles warranty repairs?
Ans : We will provide the replacement items which are covered by the warranty period at no cost to the customer. After the Warranty Period has expired, the replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers.

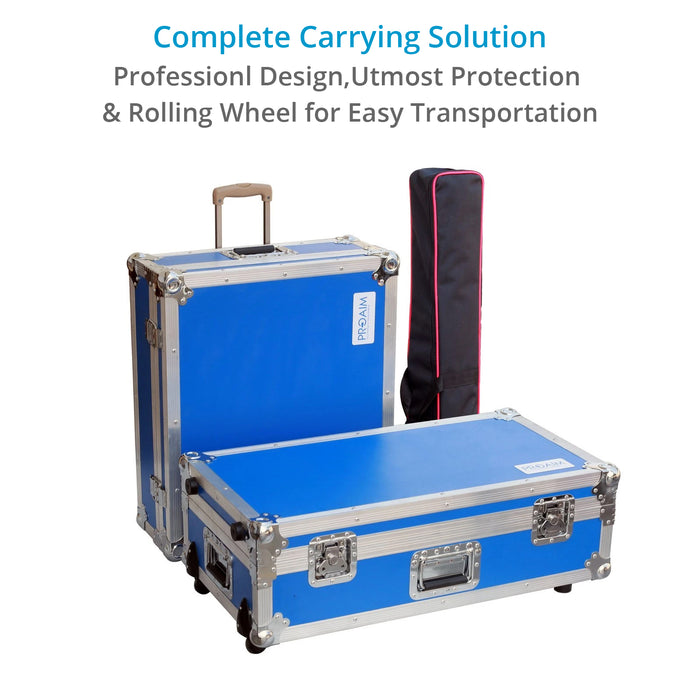

Q : Is there a case available for the dolly kit?
Ans : Yes, this Proaim Supreme dolly kit includes the foam packaging with hardcase.
