VERSATILE REMOTE HEAD

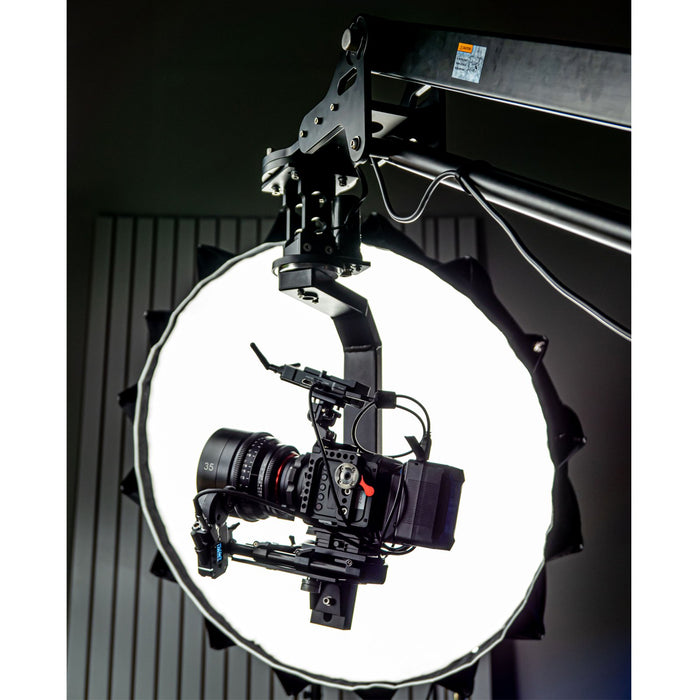

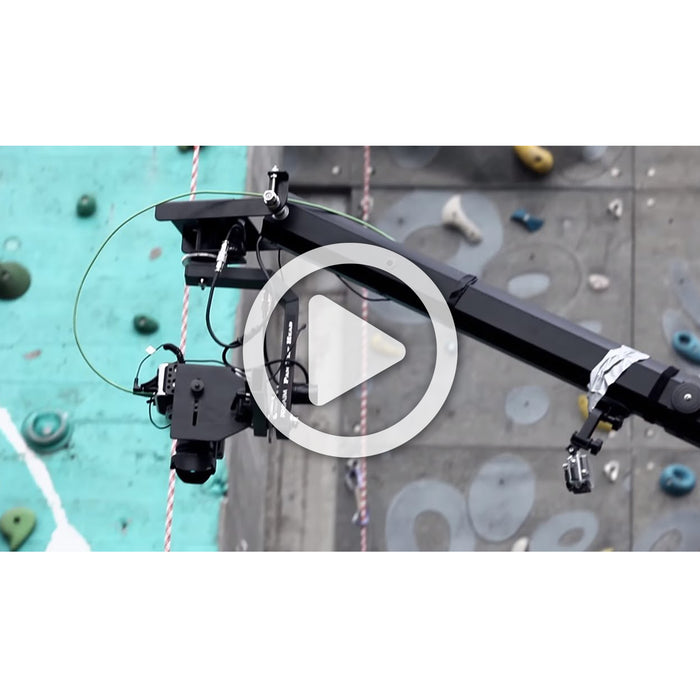

The Proaim Sr. Pan-Tilt Head with Joystick Control remotely controls your Camera when it's mounted on a tripod, jib or crane.
The Sr. Pan-Tilt Runs conveniently on 12 VDC from either a battery pack or the included AC power supply.

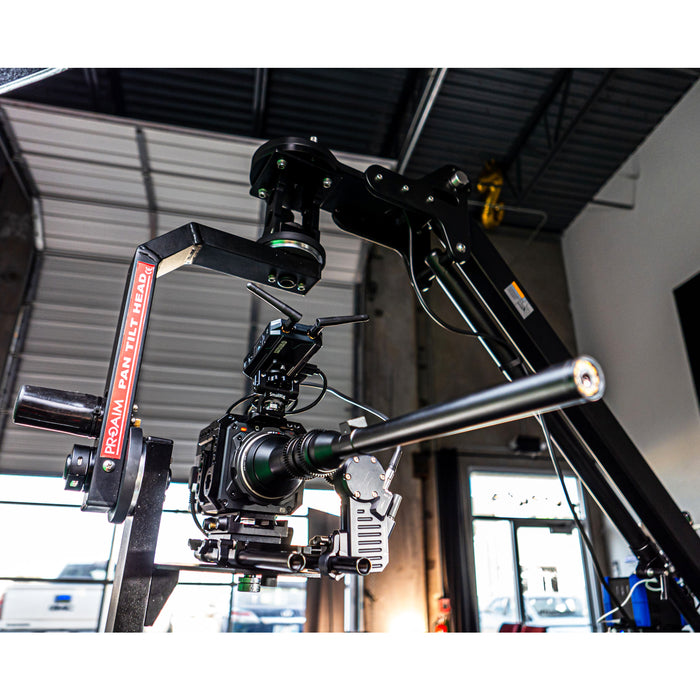

No jib is complete without a motorized pan/tilt head, and the Sr. Pan tilt’s robust yet light construction, the universal mounting base and intuitive control box makes it a breeze to set up and operate on virtually any jib.

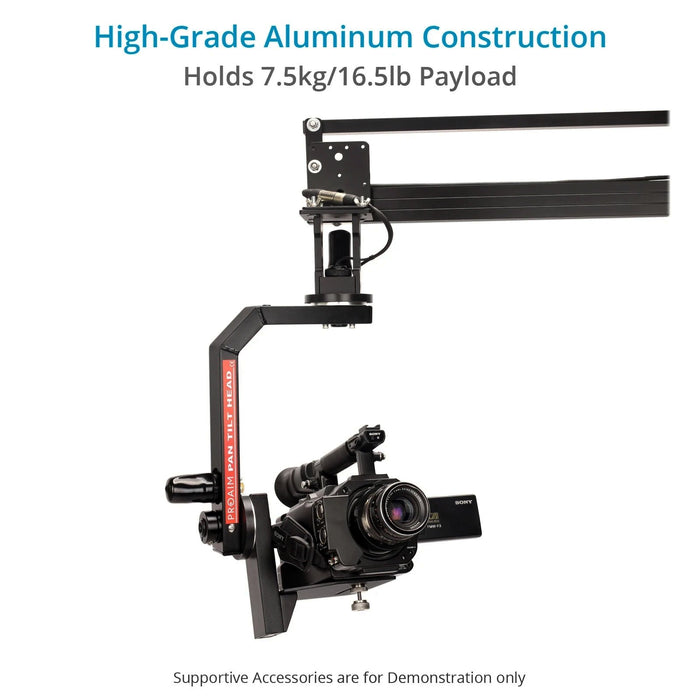

The universal camera plate is adjustable for different sized setups and can support film and video cameras weighing up to 7.5kg / 16.5lb.
The precisely designed Head gives you incredible freedom of movement and gets you cinematic footage virtually anywhere.
SMART REMOTE HEAD GIVES YOU THE FREEDOM
Recently Viewed Items
HIGH PERFORMANCE WITH ADVANCED FEATURES
Professionally designed 2-Axis Sr. Pan-Tilt Head ensures a perfect camera balance and offers smooth camerawork at all times.

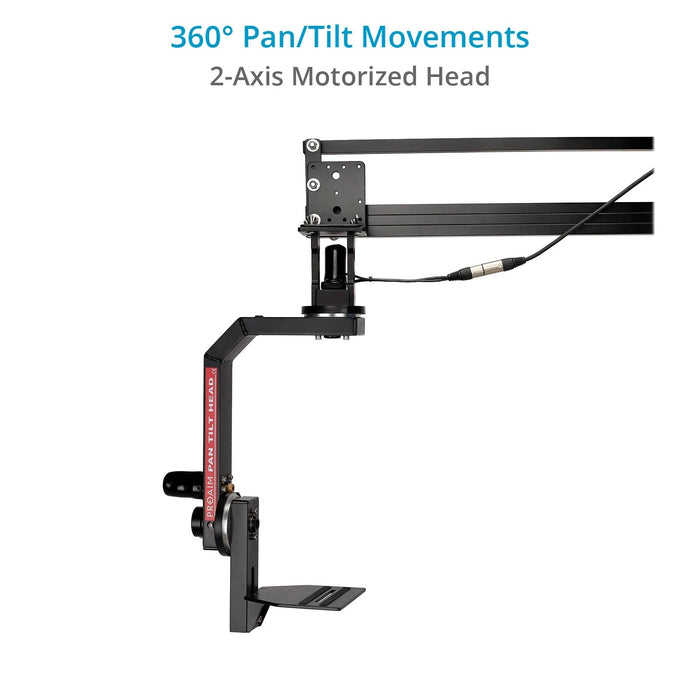

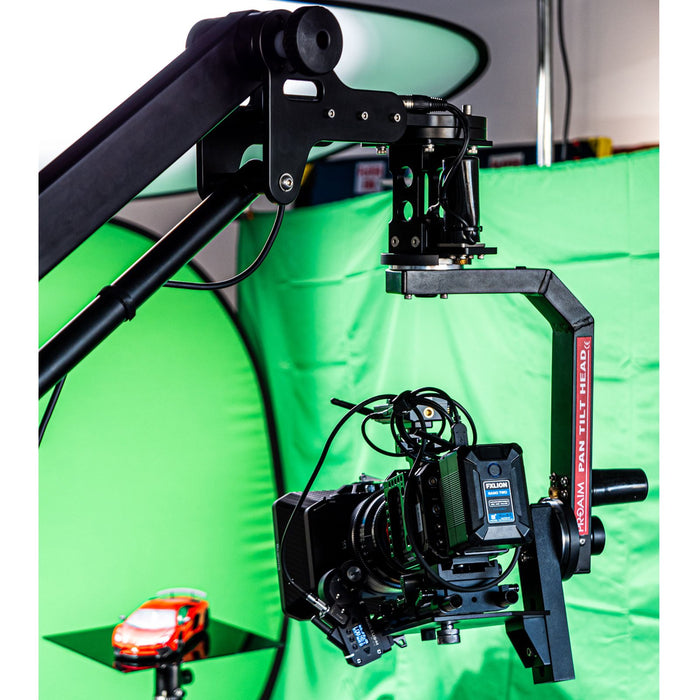

It can be mounted vertically or underslung. The Head will pan and tilt through 360°, and this enables the camera to point directly upwards or downwards when required.
The head has variable pan and tilt speeds, with a minimum speed of 6° per second for slow and smooth pans and tilts. For faster, yet smooth pan and tilts, the head has a maximum pan/tilt speed of 51° per second.

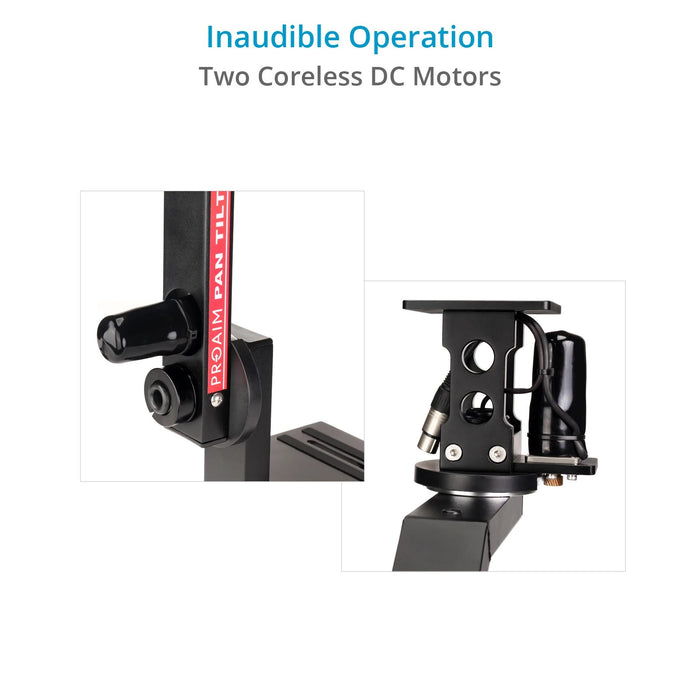

Two high-quality coreless motors and backlash-free gears work precisely, quietly and dynamically. The motor drive can be easily disengaged to balance the Camera on the camera plate.
The high strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.

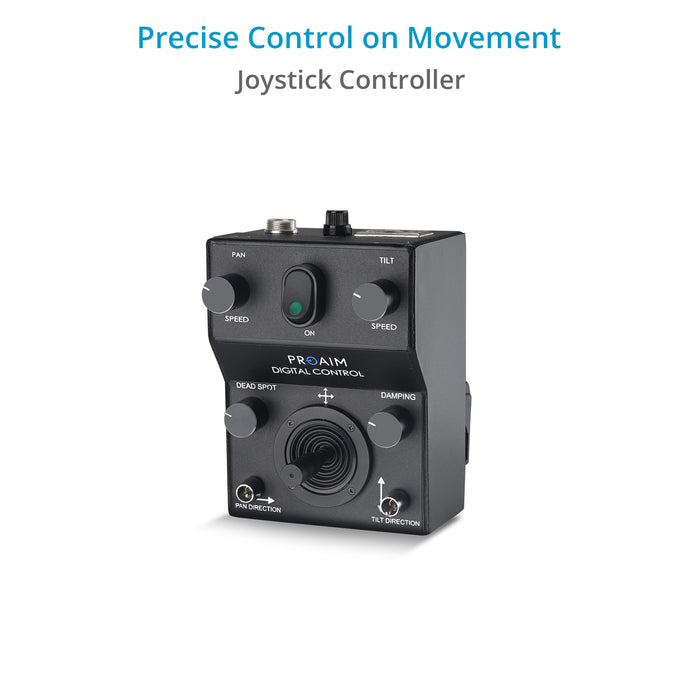

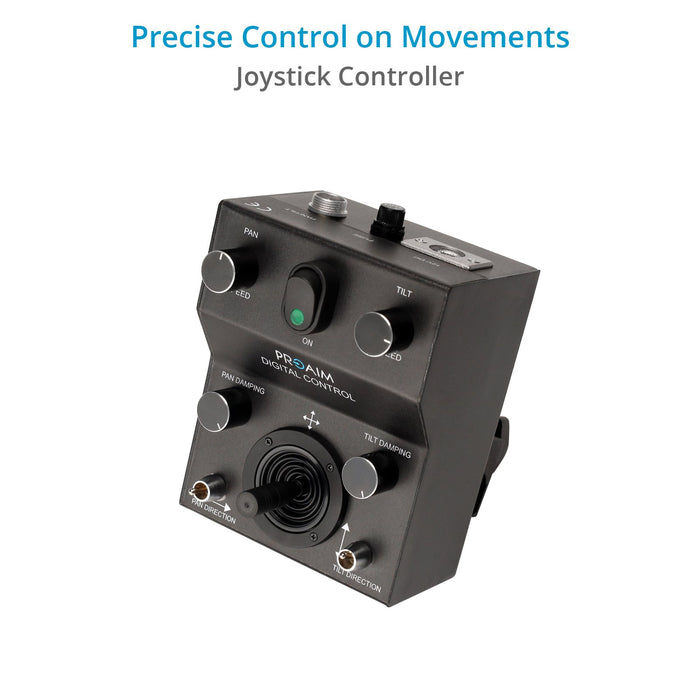

The Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.
Damping control prevents the Head from stopping with a jerk enabling you to achieve smooth endings.
You can reverse the panning & tilting direction as & when required.
BUILT TO LAST
Precision CNC machining, rigorous parts inspection, and thorough individual unit testing ensure A-grade quality, which serves for the lifetime.
Technological advancements make the unit light, smooth and easy to operate.

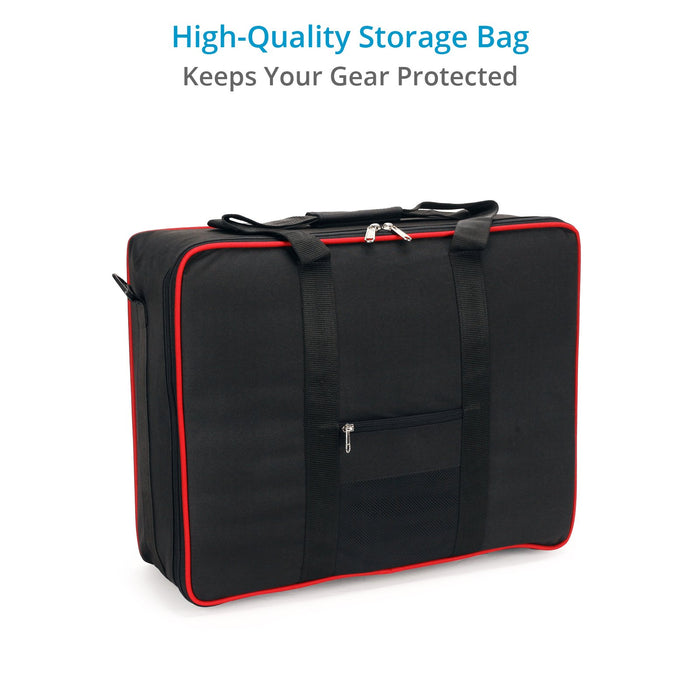

The high-quality carrying bag with custom-fit foam protects the Pan-Tilt Head for storage and transport via air or land.
Made of Construction
High-grade CNC Aluminum
7.5 kg / 16.5 lb
Pan & tilt
Covers 360° at Slowest Speed in : 2 minutes
Covers 360° at Highest Speed in : 7 seconds
Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)
2 Small: ⌀ 13.5mm (Brass)
2 Large: ⌀ 88mm (Aluminum)
Minimum Height of Head: 18.5" / 46.99 cm
Maximum Height of Head: 26" / 66 cm
Connectors: 2x 4-Pin XLR Male Connectors
Pan/Tilt Direction: Yes
Upgraded with: Damping Knob
AC Adapter input
AC 100-240V ; Output 12V DC-2A
Cable Length: 15 meter (Can be extended up to 50 meter)
Cable Connector: 4-Pin XLR
Battery Cable: 3 meter Long
Pan/Tilt Head: 3 kg / 6.6 lb
Joystick: 800 gram / 28.22 oz
Bag Dimensions: 50 x 35 x 19 cm
7.7 kg / 16.97 lb
Box Dimensions (LxWxH)
22.8 x 14.9 x 7.4" / 58 x 38 x 19 cm

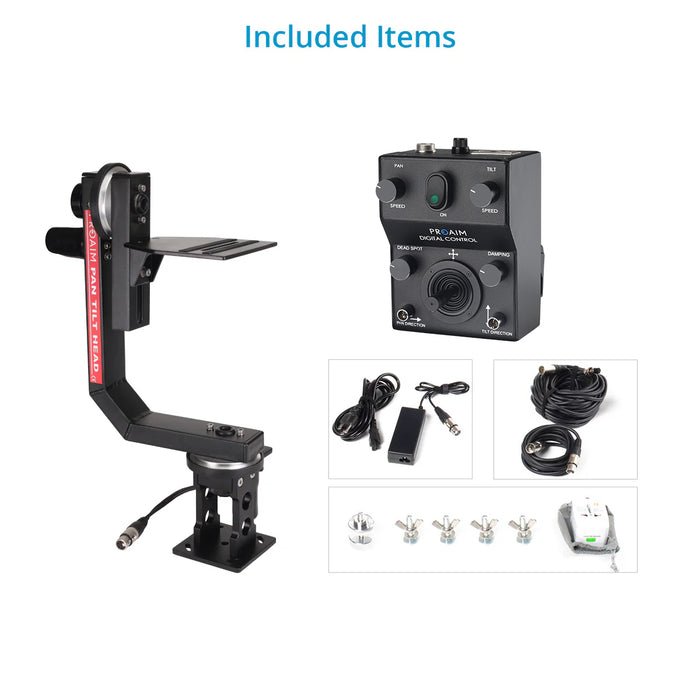

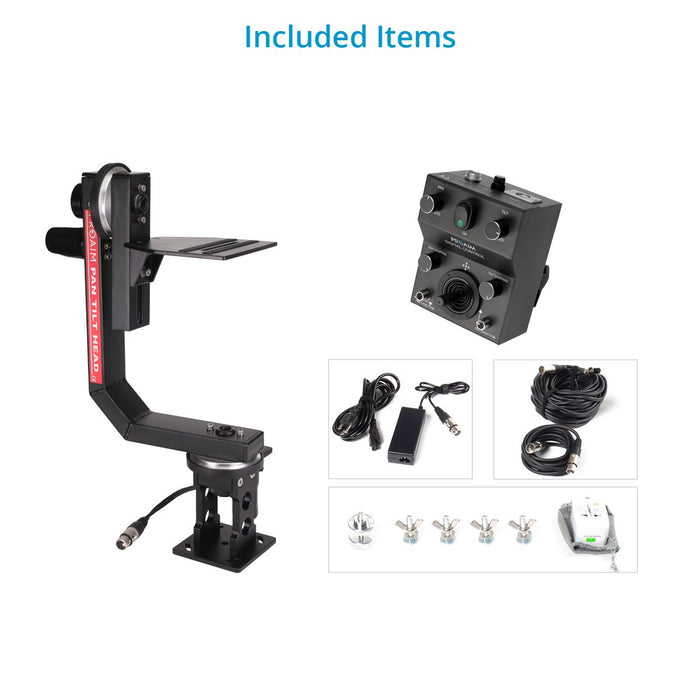

IN THE BOX
Proaim Sr. Pan & Tilt Camera Motorized Head
15 meter/49foot long Control Cable
3 meter long 4pin XLR cable (for using 12VDC Battery Packs)
1/4"-Camera Mounting Screw
Worldwide Universal Adapter
12V AC Adapter
Storage Case with Custom Fit Packing
WHY SR. PAN-TILT IS THE BEST CHOICE?
It can be used with Jibs, Cranes, Tripods, etc., and holds video, film cameras weighing up to 7.5kg/16.5lb.

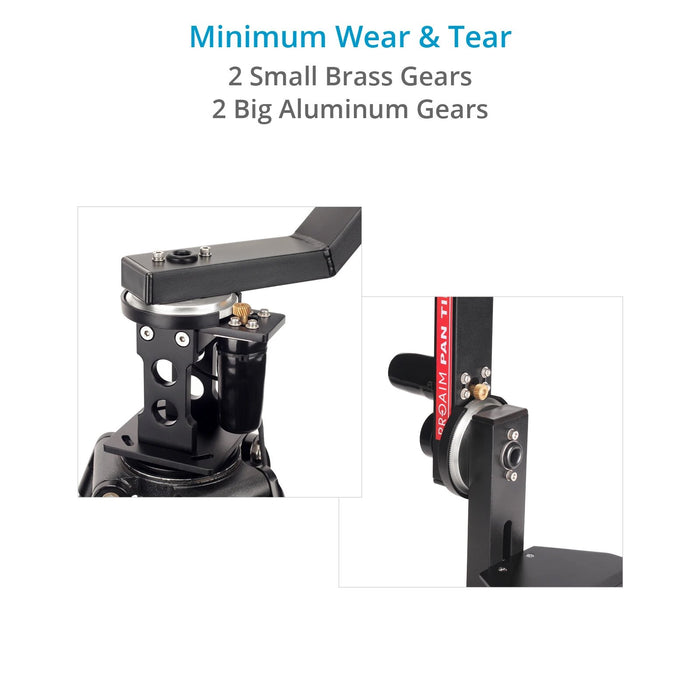

Minimum Wear and Tear
The high-strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.
There is no other product in the market, with these many features even close to this price range. We offer Value for Money!
Q: Will it work with canon 550d camera?
Ans: Yes, it will work with canon 550d camera.
Q: How the head can be mounted?
Ans: This pan tilt head has square plate with four screws mounting at corners.
Q: Will the fluid head fit to this head?
Ans: Yes, you can mount fluid head on the head plate.
Q: Will it fit to 100mm bowl tripod?
Ans: No, It will not fit to bowl tripod.
Q: Will it mount on fluid head?
Ans: No, It will not mount on fluid head.
Q: Can I purchase this head with the compatible tripod?
Ans: Yes, you can purchase this head with tripod and tripod adapter.
Q: Do you provide cable for the battery?
Ans: Yes, we provide 3 meter long cable for using with the battery.
Q: What is the gear material?
Ans: Small gears are made of brass and bigger gears are made of aluminum.
Q: Does the joystick come with handle to clamp on jib crane?
Ans: Yes, the joystick control box comes with a handle to clamp it on a jib crane.
Q: Is the camera plate height adjustable?
Ans: Yes, you can adjust the height of camera plate.
Q: How many circle it can complete?
Ans: This pan tilt head can take two complete 360 degree circles.
Q: Which motors are used in this head?
Ans: High torque, coreless 12V DC motors are used in this head.
Q: What kind of battery I need to operate it?
Ans: You need 12V battery to operate this head.
Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.
Q: What is the warranty?
Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
