Proaim unveils Kite 22 Camera Jib Crane to let you explore your cinematic world. It will give you the whole spectrum of innovative ideas by giving various geographic scenarios & different in-studio angles.
The Kite 22 jib stabilizes your camera to create incredibly detailed, smooth and consistent shots. It is well-engineered equipment which includes a tripod stand, portable floor dolly & Dutch roll pan-tilt head.
The High-Grade Aluminum construction offers unbeatable strength and holds most camera setups.
AN ALL-ROUNDER AND INDUSTRY STANDARD ROBUST CAMERA CRANE
Perfectly Meets Various Production Needs!
WELL DESIGNED ARM SECTIONS
The modular octagonal-shaped arm sections reinforce the sturdiness of the Kite-22ft Camera jib crane.
It is divided into seven sections, each measuring 4' in length, overlapping by up to 1' for varied lengths.

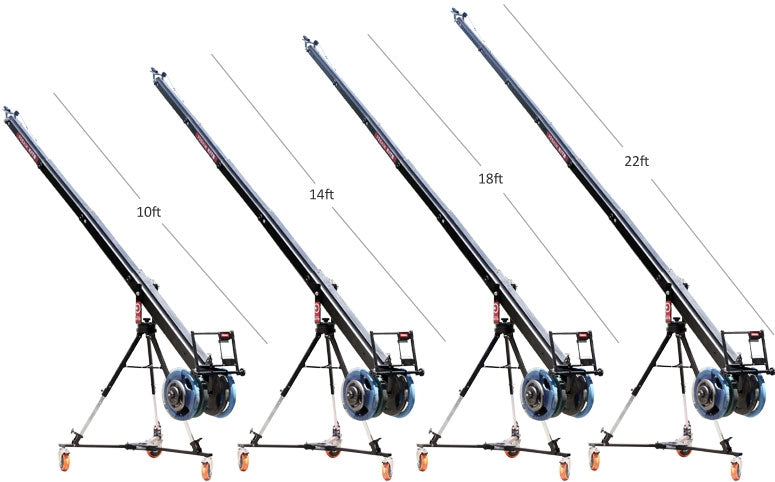

Arm length is adjustable, ranging from 12.8 ft. to 24.5 ft. (24.5ft, 22.3ft, 19ft, 15.10ft & 12.8ft) to meet any professional demands.
Each section is pulled from the previous section, so you can store unused sections in the tail as ballast weight and lighten your counterweight demand.
SOLID FOUNDATION WITH MOBILITY
Proaim Kite 22 Wonder package comes with LW-150 Heavy Duty Jib Stand to provide excellent stability to your heavy camera setups.
It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots.
The Tripod supports an incredible payload of up to 150kg/330lb and is highly stable in use.
The Kite 22 package includes a D-33 Pro Dolly to add mobility to the crane. It's a compact and versatile pro video dolly.
The Locks on the wheels ensure static jerk free shots & easy assembling.
GOLD ROLL PAN TILT HEAD
Proaim Gold Pan tilt offers complete 360-degree pan & tilt movements while keeping your camera safe and secure.
Two coreless high torque motors provide inaudible movements and a payload capacity of 7.5kg/16.5lb.
The high strength brass & aluminum gears are engineered to withstand long hours of function and minimal wear and tear.
Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot as you can reverse the panning & tilting direction as & when required.
Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.
LANC ZOOM CONTROLLER FOR CAMERA
The Proaim LANC Zoom Controller features a sensitive thumb switch that allows for variable-zoom speed from slow to fast.
The zoom lever allows you to zoom out to wide-angle or zoom in to telephoto.
This unit has an outlet cable and can be clamped on the rear frame.
The LANC Zoom controller is compatible with a variety of Sony, Canon & Panasonic Cameras.
The tool/accessory roll pouch provides rapid access to various tools such as Allen keys or wrenches. It has ten pockets to neatly organize multiple hand tools so you can work quickly and efficiently.
The complete Crane Package fits in customized storage cases to ensure full protection. These storage cases are easy to carry with you to different sets and locations.
|Finish||Hard Black Powder Coated for Lifetime use||Powder Coated|
|Shape||Octagonal (Re-enforced engineering for Triple Strength)||Rectangular|
|Telescopic||Yes||No (fits into very heavy 3' x 3' x 4.5')|
|Assembly||Within 15 minutes||Takes more than 30 minutes for setup|
|Material||High Grade Aluminum||Aluminum|
|Stand||150mm Tripod Stand Included||Others recommend photography Tripod Stand that is not recommended for jib|
|Spreader||Spreader Included for high stability||Not Included|
|Pan Tilt Head||Gold Pan Tilt Head Included||Not Included|
|Zoom Controller||Proaim Lanc Zoom Controller Included||Others charge $250 for this|
|Packing||Lightweight High Impact Professional Hard case Packing||Heavy Bulky packing made out of board and aluminum and has equal weight as of the product|
TELESCOPIC CAMERA JIB
Jib Arm Material
High Grade Aluminum HE30
Jib Arm Shape
Height from Ground
19ft / 5.8m
Jib Arm Thickness
Jib Crane Length
24.5ft / 7.5m
Jib each Arm length
Jib Arm Dimensions
|Jib Arm Octagonal Tube||Outer Diameter||Inner Diameter|
|Ist Section(weight section)||164mm||156mm|
|7th Section (Top Section)||104mm||96mm|
Height of Jib Arm while Your Stand Adjusted at Maximum height of 4ft:19ft high at 24.5ft length
16.6ft high at 22.3ft length
14.3ft high at 19ft length
12.2ft high at 15.10ft length
10ft high at 12.8ft length
Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart :
|Self Balancing||When 2.2lbs weight is on the Head Plate|
24.5ft jib arm balances at about 121.5lbs.
24.5ft arm balances at around 133lbs.
22.3ft arm balances at about 119lbs.
22.3ft arm balances at around 128lbs.
19ft arm balances at about 116lbs.
19ft arm balances at around 122lbs.
15.10ft arm balances at about 114lbs.
15.10ft arm balances at around 117lbs.
12.8ft arm balances at about 112lbs.
12.8ft arm balances at around 115lbs.
Crane Pan Lock
Crane Tilt Lock
Black Powder Coated
Coupling Jib Arm Sections
A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System
Jib Arm Break downs to
7 Sections of 4ft each
Camera Platform Leveling
By Control Cable
High carbon steel with electro galvanized 4mm tested wire at 800kg
Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve
Carrying Case size
Jib Crane Weight
30 kg / 66 lb
Max Camera Package Load Capacity(including Pan Tilt Head)
20 kg / 45 lb
PAN TILT HEAD
High Grade Aluminum
Max Camera Package Load Capacity
7.5 kg /16.5 lb
Variable-controlled speed from 6 degree / sec (low speed) to 51 degree / sec (high speed)
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees
2- Brass Small Gears (Dia- 13mm)
2- Aluminium Big Gear (Dia-88mm)
Minimum height of head
Maximum height of head
AC Adapter input
AC 100 - 240V ; output - DC 12V -2A
3 Meter long
Weight of Pan Tilt head
3.9 kg / 8.59 lb
51 X 42 X 22 cm
2x 4-Pin XLR male connectors
Weight of Joystick box
0.81 kg / 1.78 lb
Hub Assembly Material
High Grade Aluminum HE30
Stand Minimum Height With Bowl
2ft 2 inch
Stand Maximum Height With Bowl
3ft 2 inch
Distance from Center
Weight of Stand
6.7 kg / 14.7 lb
Weight of Spreader
1.8 kg / 3.9 lb
Max Opening : 24 inch
Min Opening : 15 inch
Length of Hard Case
150 kg / 330.6 lb
Maximum Load capacity
800 kg / 396 lb
MS powder coated
Steel bolts with washers
Folded (L x W x H) 84 x 28 x 22 cm
Doorway Width - 144cm
Height From Ground
Weight of Dolly
15.2 kg / 33.5 lb
Three leg Floor dolly
Height From Ground
Exchange switch: LANC / P
(LANC - Most Sony and Canon cameras with LANC jack/P -Panasonic cameras with Cam Remote jack)
REC: Record start/stop
ZOOM: Zoom lever can be variable for zoom speed
Clamp distance (diameter): 0.4 - 1.2" (10 - 30mm)
Connector cable: 2.5mm Stereo mini jack
Cable Length: 22ft + 3ft (Extension)
32-104°F(0 - 40°C)
IN THE BOX
Proaim Kite-22 Video Camera Jib Crane with Accessories
Gold Pan and Tilt Head with Accessories (PT-GOLD)
Proaim 150mm bowl Jib Stand with spreader (LW-150)
Proaim Zoom Control (P-ZC-3DV)
D-33 DOLLY (D-33)
Tools and Tool Pouch/Wrap- Complimentary
Proaim Customized Storage cases
Guaranteed Fast Delivery
Quick and Efficient
