01.
ULTIMATE SOLUTION FOR PROFESSIONALS

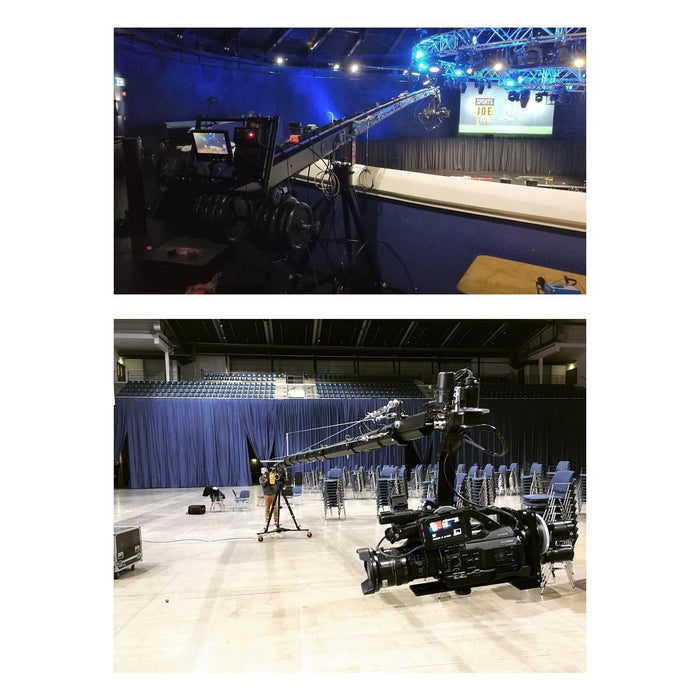

Proaim unveils Kite 22 Camera Jib Crane to let you explore your cinematic world. It will give you the whole spectrum of innovative ideas by giving various geographic scenarios & different in-studio angles.
The Kite 22 jib stabilizes your camera to create incredibly detailed, smooth and consistent shots. It is well-engineered equipment which includes a tripod stand, portable floor dolly & Dutch roll pan-tilt head.
The High-Grade Aluminum construction offers unbeatable strength and holds most camera setups.
An All-Rounder And Industry Standard Robust Camera Crane
Perfectly Meets Various Production Needs!
02.
WELL DESIGNED ARM SECTIONS
The modular octagonal-shaped arm sections reinforce the sturdiness of the Kite-22ft Camera jib crane.
It is divided into seven sections, each measuring 4' in length, overlapping by up to 1' for varied lengths.
Arm length is adjustable, ranging from 12.8 ft. to 24.5 ft. (24.5ft, 22.3ft, 19ft, 15.10ft & 12.8ft) to meet any professional demands.
Each section is pulled from the previous section, so you can store unused sections in the tail as ballast weight and lighten your counterweight demand.
03.
SOLID FOUNDATION WITH MOBILITY
Proaim Kite 22 Popular package comes with LW-150 Heavy Duty Jib Stand to provide excellent stability to your heavy camera setups.
It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots.
The Tripod supports an incredible payload of up to 250kg/551lb and is highly stable in use.
The Kite 22 package includes a D-33 Pro Dolly to add mobility to the crane. It's a compact and versatile pro video dolly.
The Locks on the wheels ensure static jerk free shots & easy assembling.
04.
SENIOR ROLL PAN TILT HEAD
Proaim Senior Pan Tilt offers complete 360-degree pan & tilt movements while keeping your camera safe and secure.
It is engineered to support cameras up to 7.5kg/ 16.5lb with ease.
The Pan Tilt head is creatively designed to use jib crane arms, tripods, and other remote operating situations that deliver increased production value.
Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot as you can reverse the panning & tilting direction as & when required.
Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.
05.
SIMPLIFIED CARRYING
The tool/accessory roll pouch provides rapid access to various tools such as Allen keys or wrenches. It has ten pockets to neatly organize multiple hand tools so you can work quickly and efficiently.
The complete Crane Package fits in customized storage cases to ensure full protection. These storage cases are easy to carry with you to different sets and locations.
IN-ACTION VIDEOS
SPECIFICATIONS
TELESCOPIC CAMERA JIB
Jib Arm Material
High Grade Aluminum HE30
Jib Arm Shape
Octagonal
Height from Ground
19ft / 5.8m
Jib Arm Thickness
3mm
Jib Crane Length
24.5ft / 7.5m
Jib each Arm length
4ft
Jib Arm Dimensions
Jib Arm Octagonal Tube | Outer Diameter | Inner Diameter |
Ist Section(weight section) | 164mm | 156mm |
2nd Section | 154mm | 146mm |
3rd Section | 144mm | 136mm |
4th Section | 134mm | 126mm |
5th Section | 124mm | 116mm |
6th Section | 114mm | 106mm |
7th Section (Top Section) | 104mm | 96mm |
Height Range
Height of Jib Arm while Your Stand Adjusted at Maximum height of 4ft:19ft high at 24.5ft length
16.6ft high at 22.3ft length
14.3ft high at 19ft length
12.2ft high at 15.10ft length
10ft high at 12.8ft length
Balancing Chart
Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart :
Self Balancing | When 2.2lbs weight is on the Head Plate |
24.5ft jib arm balances at about 121.5lbs. | 24.5ft arm balances at around 133lbs. |
22.3ft arm balances at about 119lbs. | 22.3ft arm balances at around 128lbs. |
19ft arm balances at about 116lbs. | 19ft arm balances at around 122lbs. |
15.10ft arm balances at about 114lbs. | 15.10ft arm balances at around 117lbs. |
12.8ft arm balances at about 112lbs. | 12.8ft arm balances at around 115lbs. |
Crane Pan Lock
Yes
Crane Tilt Lock
No
Finish
Black Powder Coated
Coupling Jib Arm Sections
A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System
Jib Arm Break downs to
7 Sections of 4ft each
Camera Platform Leveling
By Control Cable
Stress cable
High carbon steel with electro galvanized 4mm tested wire at 800kg
Multiple Alignment
Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve
Carrying Case size
51 inches
Jib Crane Weight
30 kg / 66 lb
Max Camera Package Load Capacity(including Pan Tilt Head)
20 kg / 45 lb
PAN TILT HEAD
Pan-Tilt Material
High Grade Aluminum
Max Camera Package Load Capacity
7.5 kg /16.5 lb
Pan movement
360°
Tilt movement
360°
Speed
Variable-controlled speed from 6 degree / sec (low speed) to 51 degree / sec (high speed)
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
Motors
Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees
Gears
2- Silver Big Gears (Dia- 89mm)
2- Brass Small Gears (Dia- 14mm)
Minimum height of head
18.5 inches
Maximum height of head
26 inches
AC Adapter input
AC 100 - 240V ; output - DC 12V -2A
Cable Length
9 meter
Cable Connector
4-Pin XLR
Battery Cable
3 Meter long
Weight
7.2 kg /15.8 lb
Bag Dimensions
50 x 35 x 19 cm
JOYSTICK CONTROLLER
Joystick Controller
2-Axis
Connectors
2x 4-Pin XLR male connectors
Pan/Tilt Direction
Yes
Upgraded with
Damping knob
TRIPOD STAND(LW-150)
Material
Solid Aluminum
Hub Assembly Material
High Grade Aluminum HE30
Bowl Mount
150mm
Bowl Thickness
30.8mm
Stand Minimum Height With Bowl
2ft 2 inch
Stand Maximum Height With Bowl
3ft 2 inch
Distance from Center
22 inch
Weight of Stand
6.7 kg / 14.7 lb
Weight of Spreader
1.8 kg / 3.9 lb
Spreader
Max Opening : 24 inch
Min Opening : 15 inch
Length of Hard Case
28.7 inch
Weighing Capacity
250 kg / 551 lb
D-33 DOLLY
Maximum Load capacity
400 kg / 881lb
Material
MS powder coated
Bolts
Steel bolts with washers
Wheels Diameter
148.7mm
Wheels Thickness
49.40mm
Wheel Material
Polyurethane
Central Distance
72cm
Dimensions
Folded (L x W x H) 84 x 28 x 22 cm
Doorway Width - 144cm
Height From Ground
9 inch
Weight of Dolly
15.2 kg / 33.5 lb
Dolly Type
Three leg Floor dolly
Wheel Lock
Yes
PACKING INFO
Product Volumetric Weight (with packing)
Case 1 = 14kg / 32lb
Case 2 = 12kg / 27lb
Case 3 = 38kg / 82lb
Case 4 = 12kg / 27lb
Case 5 = 15kg / 35lb
Case 6= 8kg / 18lb
Product Gross Weight (with packing)
Case 1 = 22kg / 48lb
Case 2 = 16kg / 37lb
Case 3 = 27kg / 59lb
Case 4 = 17kg / 40lb
Case 5 = 20kg / 44lb
Case 6= 7kg / 16lb
IN THE BOX
Proaim Kite-22 Telescopic Camera Jib Crane
Proaim 150mm bowl Jib Stand with spreader (LW-150)
Proaim D-33 Pro Dolly (D-33)
Proaim Sr. Pan Tilt Head with Joystick Controller & Accessories (PT-SR)
Customized Storage cases for Camera Jib Arm , Jib Stand & Accessories
Tools and Tool Pouch/Wrap- Complimentary
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
Which size of Tripod legs can fit in the D-33 dolly?
The tripods with up to 48mm diameter legs can be used with the Proaim D-33 Portable Camera Tripod Dolly.
-
Could it be controlled by a computer
The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.
-
Can the Sr. Pan Tilt Head be moved by hand if i don\'t want to use the motor?
Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.
-
How to assemble Kite-22 crane, i am very confused ?
"Here is the assembling video of the Kite 22 Crane Jib:
https://www.dropbox.com/s/ajrtm7ywfsr7f5v/Kite-22-crane-assembly-Final.mp4?dl=0" -
Hello, is screen includes in the crane packages ?
The Proaim Camera Crane Packages does not include the monitors or screens.
