Proaim Kite-22 Camera Crane Starter Package

Proaim 24.5ft Octagonal Camera Crane with 150mm Bowl Jib Stand with Spreader (LW-150) & D-33 Pro Dolly

Sold out
€1.887,60
SKU : KITE-22-STARTER

Our Proaim Kite-22 Starter camera crane package bestow creative’s with flexible shot selection, easy setup and rugged long life construction. From commercials to industrials, motion pictures to wedding events, broadcast cameras to film and DSLR camera production, Proaim Kite-22 Telescopic Camera Crane is the right choice for you. It includes solid aluminum 150mm bowl heavy duty tripod stand with spreader to stabilize the jib crane system.

Congratulations to Sébastien PINS (Wildlife Cinematographer)

We are extremely Happy and Proud to be a part of Mr. Sebastien's Journey of making this extremely successful Short Film featured across Various Film Festivals and Received an Award in the United Nations. Congratulations and All the Best for the Future !

The whole package comes in high impact protective packing for carrying, transporting and storing your valuable camera equipment. Maximum performance in a flexible package designed to satisfy the most demanding cinematographers/ operators, no matter what’s the venue. Get those super heroic shots you have always admired in high budget Hollywood movies at an affordable price. If it is from Proaim, you can count on it.


"WHAT YOU SEE IS WHAT YOU GET"

Exclusive of Weights

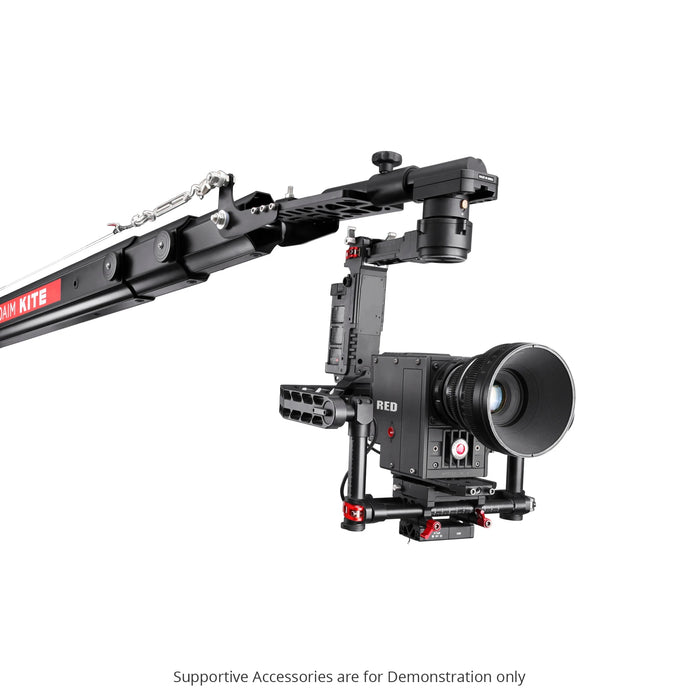

Camera crane head

FEATURES
-  Expandable from 4ft (1 section) to 24.5ft (7 sections) in 3ft increments.
-  Each extendable section is 4ft long giving 1ft overlaps between sections.
-  As each section is pulled from the previous section, you can store unused sections in the tail as ballast weight and lighten     your counterweight demand.

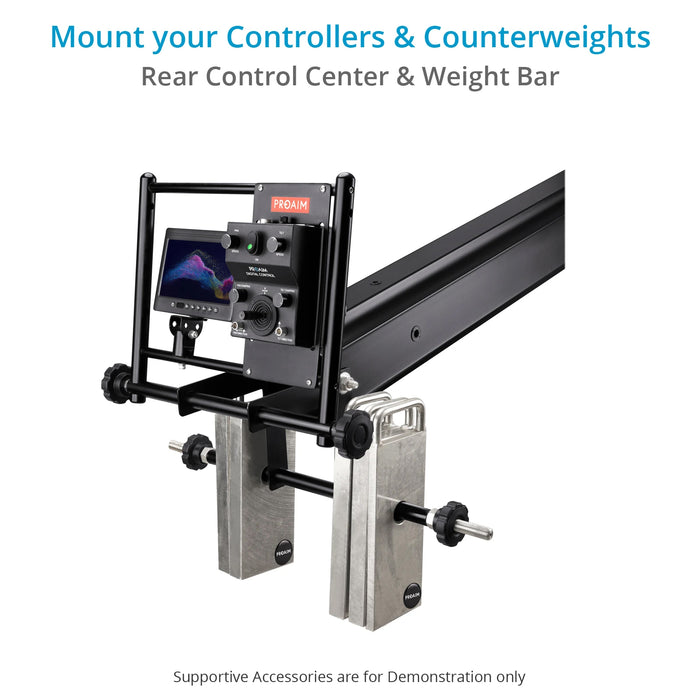

-  The Rear Control Centre has provisions for mounting the Joystick Control box, LCD Monitor & Zoom Controller.
-  Heavy Duty Jib Stand with Spreader included for high stability.
-  As a quality constructed reinforced lightweight jib it should last a lifetime.
-  Respected International Reputation for Quality in All That We Do.
-  Adjustable tripod foot for jib stand allows this dolly to match with many tripods
-  Locking rubber wheels allow for a secure smooth pro dolly
-  Has smooth 360 degree rotating wheel bearings
-  100% Satisfaction Guarantee.

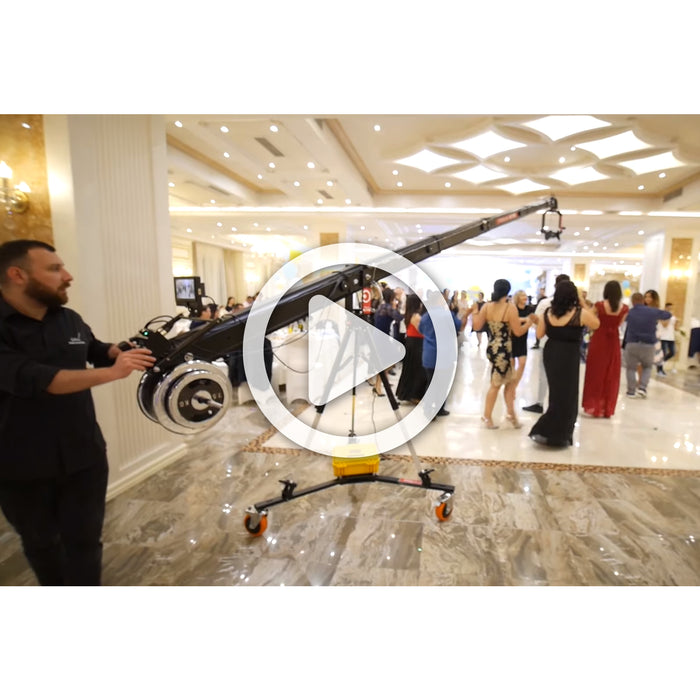

Video is for demonstration only
Actual Product may vary due to Product Improvements

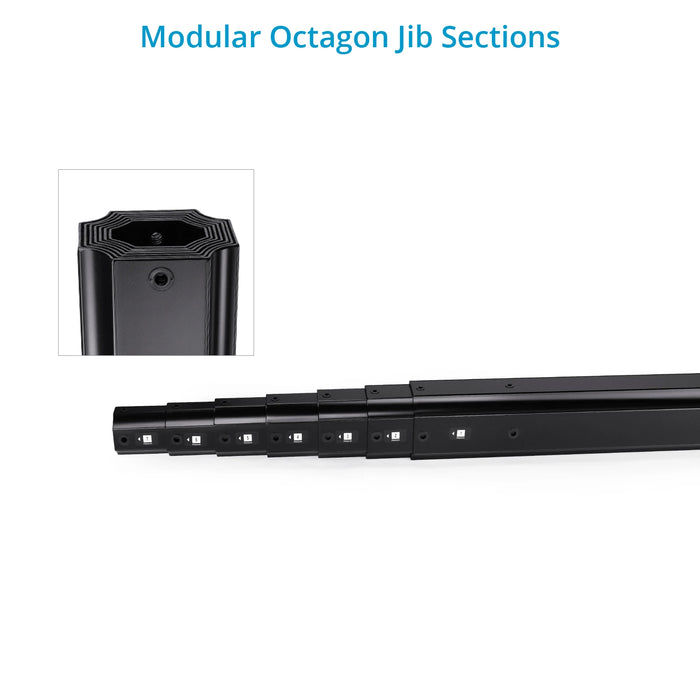

CAMERA JIB ARM:
The Kite-22 telescopic camera jib sections are made from hi-grade Aluminum constructions that make it enough sturdy and robust. Its sections collapse into each other for compact storage.
- Each jib sections are expandable from 4ft (one section) to 24.5ft (seven section) in 3ft increments giving 1ft overlaps between sections.
- As each section is pulled from the previous section, you can store unused sections in the tail as ballast weight and lighten your counterweight demand.

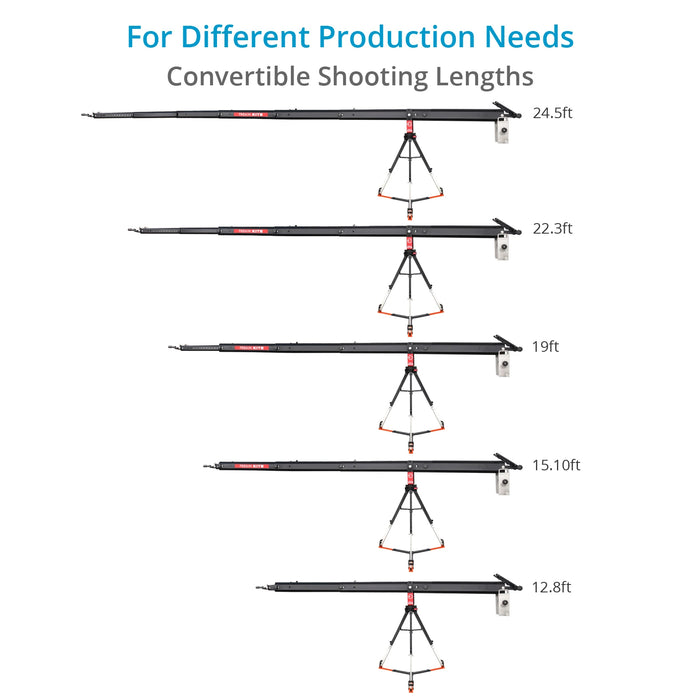

24.5ft Crane can also be used in the following lengths : 24.5ft, 22.3ft, 19ft, 15.10ft & 12.8ft

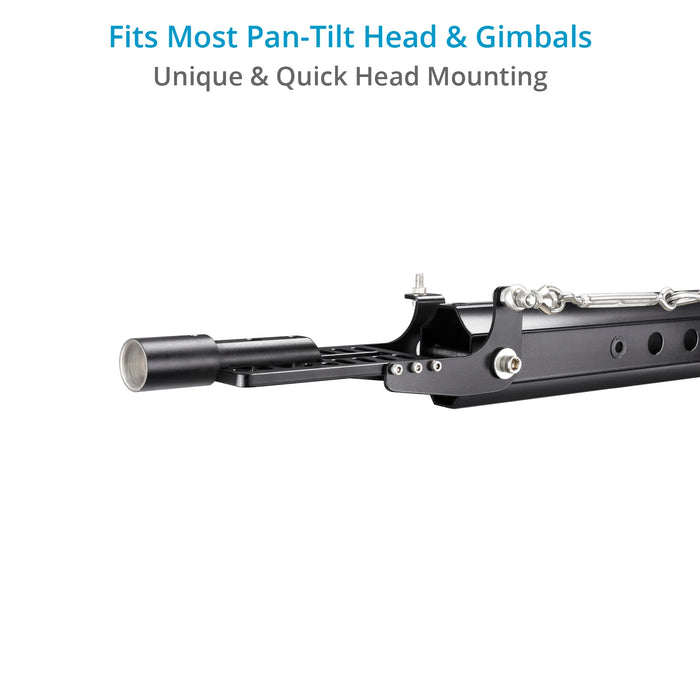

camera mounting crane

LW-150 Jib Stand
The LW-150 Heavy Duty Jib Stand specifically designed for Kite-22 Octagonal camera cranes. It comes with Spreader for higher stability & to support heavy loads.



Camera jib dolly

Quality constructed reinforced Tripod Stand

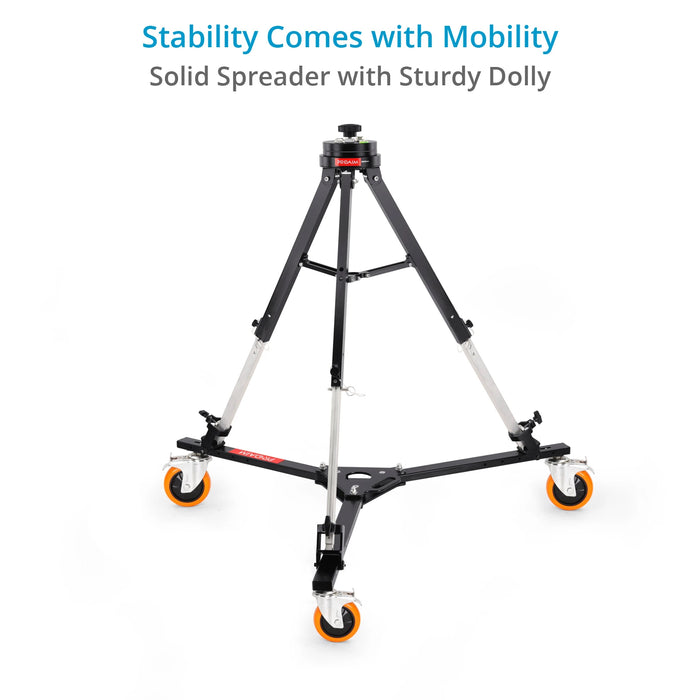

D-33 PRO DOLLY
D-33 Pro Dolly is the most portable dolly in the market. It's a compact, lightweight and versatile camera crane dolly best suited for supporting all heavy duty stands.
-  Adjustable tripod holding allows this dolly to match with many other tripods.
-  Has smooth 360-degree rotating wheel bearings.
-  Inbuilt wheel lock freezes the rubber wheels and stabilizes the system.
-  It folds to a compact size for easy transport.


For Dslr Video Camera Camcorder

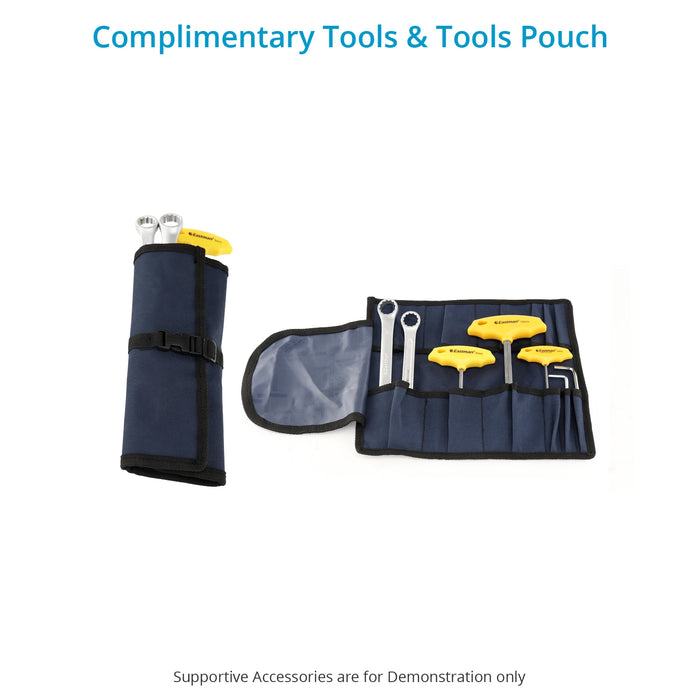

COMPLIMENTARY TOOLS AND TOOL POUCH/WRAP
This tool / accessory roll pouch provides Rapid Access to Various Tools such as Allen Keys or wrenches. This premium quality tool roll has 10 Various Pockets to neatly organize a variety of hand tools so you can work quickly and efficiently.


Aluminum Camera Crane

IMAGE GALLERY


camera crane 22 feet

Heavy duty Cinema crane
Reinforced high tensile design


The Supporting accessories are for demonstration purpose only.

 JIB ARM DIMENSIONS
 Jib Arm Octagonal Tube Outer Diameter Inner Diameter
 Ist Section(weight section) 164mm 156mm
 2nd Section 154mm 146mm
 3rd Section 144mm 136mm
 4th Section 134mm 126mm
 5th Section 124mm 116mm
 6th Section 114mm 106mm
 7th Section (Top Section) 104mm 96mm

 TELESCOPIC CAMERA JIB SPECIFICATIONS
 Jib Arm Material High Grade Aluminum HE30
 Jib Arm Shape Octagonal
 Height from Ground 19ft(5.8 Meter)
 Jib Arm Thickness 3mm
 Jib Crane Length 24.5ft (7.5 Meter)
 Jib each Arm length 4ft
 Crane Pan Lock Yes
 Crane Tilt Lock No
 Finish Black Powder Coated
 Coupling Jib Arm Sections A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System
 Jib Arm Break downs to 7 Sections of 4ft each
 Camera Platform Leveling By Control Cable
 Stress cable High carbon steel with electro galvanized 4mm tested wire at 800kg
 Multiple Alignment Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve
 Carrying Case size 51 inches
 Jib Crane Weight 30kg (66lbs)
 Max Camera Package Load Capacity(including Pan Tilt Head) 20kg (45lbs)

 HEIGHT RANGE
 Height of Jib Arm while Your Stand Adjusted at Maximum height of 4ft - 19ft high at 24.5ft length
-  16.6ft high at 22.3ft length
-  14.3ft high at 19ft length
-  12.2ft high at 15.10ft length
-  10ft high at 12.8ft length

 Balancing Chart Self Balancing When 2.2lbs weight is on the Head Plate
Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart : 24.5ft jib arm balances at about 121.5lbs.
22.3ft arm balances at about 119lbs.
19ft arm balances at about 116lbs
15.10ft arm balances at about 114lbs.
12.8ft arm balances at about 112lbs.
24.5ft arm balances at around 133lbs.
22.3ft arm balances at around 128lbs.
19ft arm balances at around 122lbs.
15.10ft arm balances at around 117lbs.
12.8ft arm balances at around 115lbs.

 SPECIFICATIONS OF JIB TRIPOD STAND(LW-150)
 Weighing Capacity 150kg
 Material Used Solid Aluminum
 Hub Assembly Material High Grade Aluminum HE30
 Bowl Mount 150mm
 Bowl Thickness 30.8mm
 Stand Minimum Height With Bowl 2ft 2 inch
 Stand Maximum Height With Bowl 3ft 2 inch
 Distance from Center 22 inch
 Weight of Stand 6.7kg
 Weight of Spreader 1.8kg
 Spreader Max Opening : 24 inch
Min Opening : 15 inch
 Length of Hard Case 28.7 inch

 SPECIFICATIONS OF D-33 Dolly
 Maximum Load capacity 800kg
 Material Used MS powder coated
  Bolts Steel bolts with washers
  Wheels Diameter 148.7mm
  Wheels Thickness 49.40mm
  Wheel Material Polyurethane
  Central Distance 72cm
  Dimensions Folded (L x w x h) 84 x 28 x 22 cm Doorway Width - 144cm
  Height From Ground 9 inch
 Weight of Dolly 15.2kg
 Dolly Type Three leg Floor dolly
 Wheel Lock Yes

  • Proaim Kite-22 Long Telescopic Camera Jib Crane (P-22)
  • Proaim 150mm bowl Jib Stand with spreader (LW-150)
  • Proaim D-33 Pro Dolly (D-33)

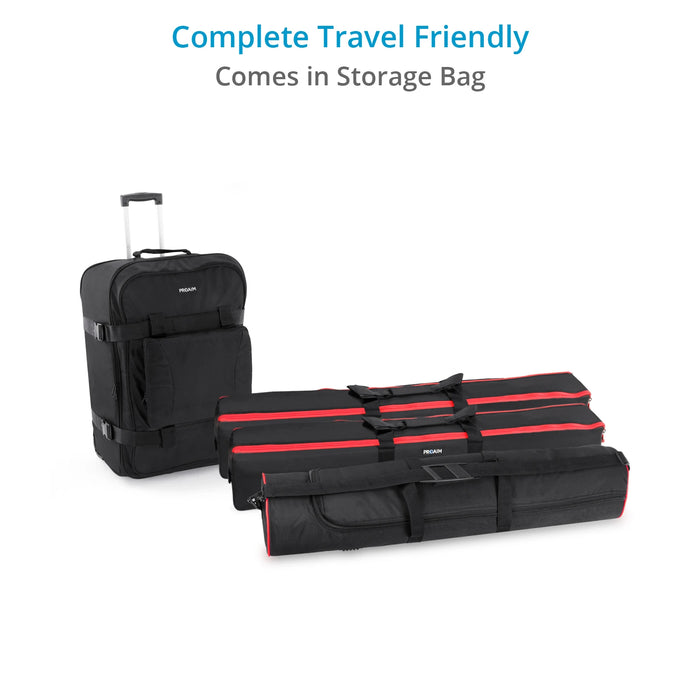

  • Proaim Customized Storage cases for Camera Jib Arm & Jib Stand & Accessories
  • Complimentary Tools and Tool Pouch/Wrap
