01.
Solid & Secure Camera Platform
Proaim Camera mount system is a full-fledged mounting kit to mount your Camera Gimbal Set-up on the Carts.

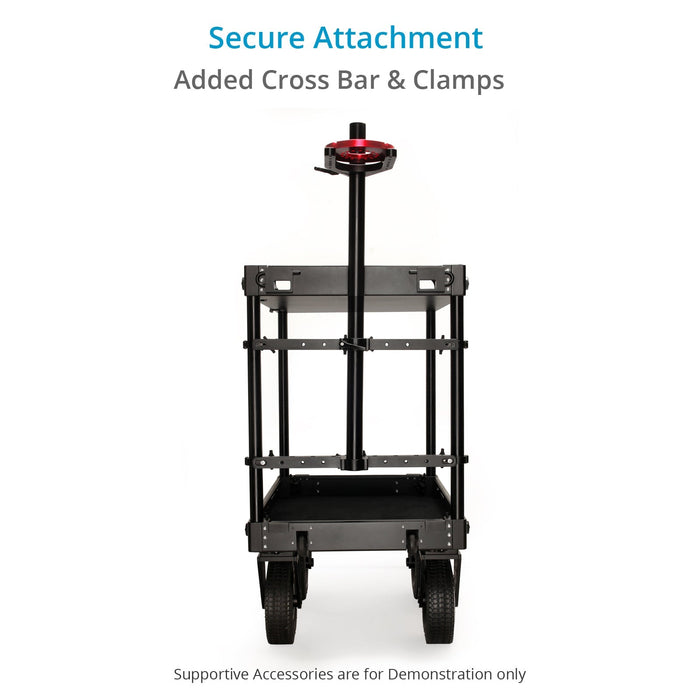

The kit includes a 91cm rod, a horseshoe mount, an additional cross-bar, and two clamps to provide a solid & adjustable platform.

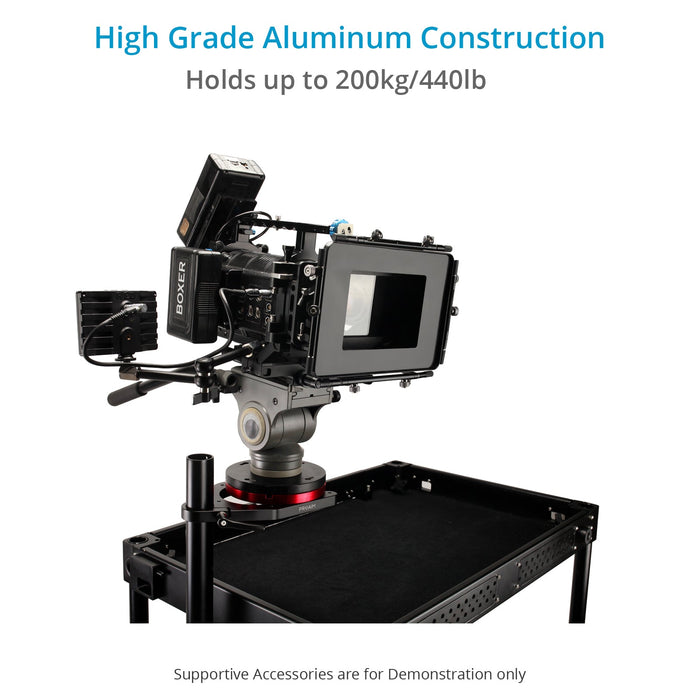

This high-grade Aluminium constructed kit offers an incredible load of up to 200 kg / 440 lb.
Camera Mounting Solution for Your Camera Cart!
02.
Solid & Adjustable & Adaptable
The mounting system allows the camera plate to rotate 360° and adjust the height.
It connects to any Mitchell/Bowl camera plate directly via a 1.5" (38mm) center mast over a top-shelf.

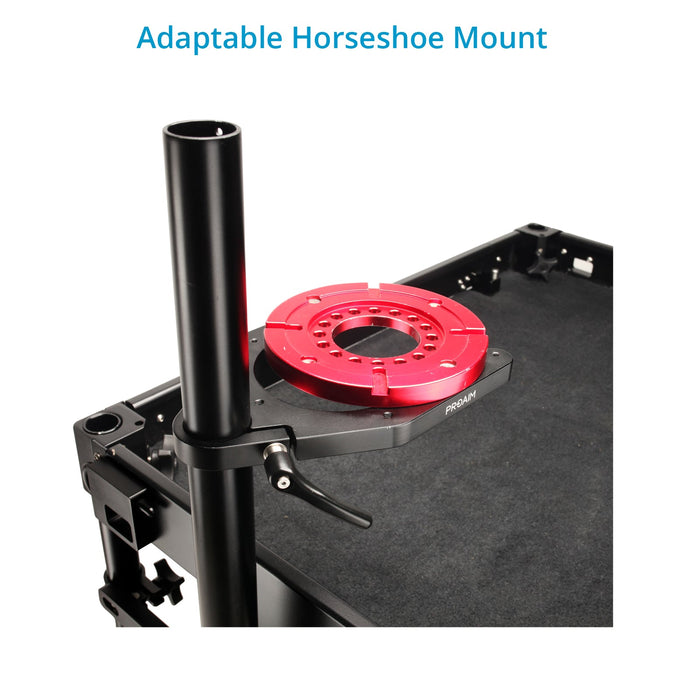

The system accepts several Horseshoes and Camera Plates, allowing one system to handle different camera configurations.

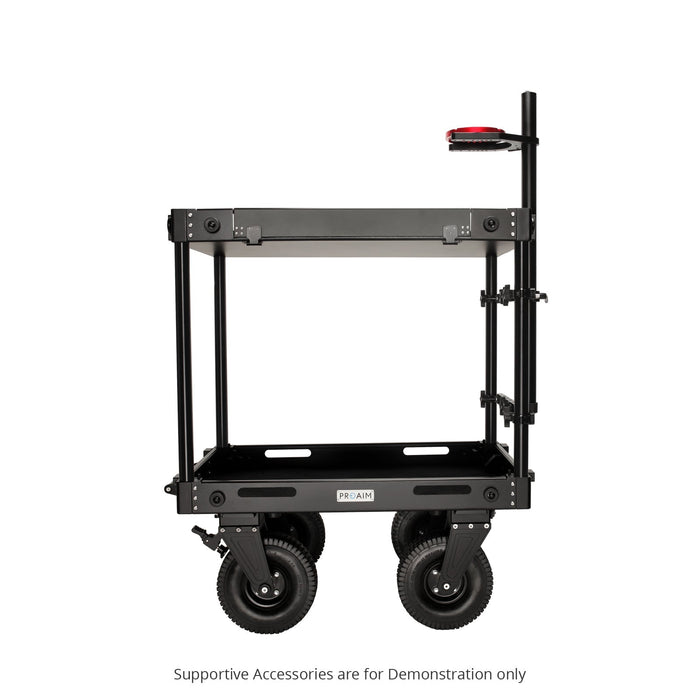

It is compatible with Proaim Atlas Camera Cart & complete Victor Cart Series.
See how the Camera Cart Works
Specifications
Construction
High-Grade CNC Aluminum
Load Capacity
up to 200kg / 440lb
Camera Mount Width
14cm
Rod Length
91cm
Rod Outer Diameter
45mm
Rod Inner Diameter
38mm
Accessory Cross-Bar length
22" / 558.8mm
Cross-Bar Clamp Diameter
1.5" / 38mm
Package weight
04.59kg / 10.14 lb
Product weight
03.76kg / 8.03lb
In the Box
91cm Rod
Horseshoe Mount
Accessory Cross-Bar
2x Clamps
User Manual
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
What is the thread size of the ratchet knob of Horse shoe mount
The thread size of the ratchet knob of Horse shoe mount is M8.
-
will these work on an inovativ cart?
Yes, The Proaim Camera Mount System is compatible with the Inovativ cart , however you will just need an additional crossbar.
-
With the camera mount system for cart, VCTR-CM, does a 100mm bowl (BP 302 00) fit directly on?
Yes, the Proaim Mitchell Base to Bowl Adapter (BP-302-00) can be directly mounted on the Proaim camera mount system (VCTR-CM).
