Proaim Atlas V2 Video Production Camera Cart

Save 4% Save 3%
Original price €2.588,00
Original price €2.360,00 - Original price €2.588,00
Original price €2.588,00
Current price €2.510,00
€2.269,00 - €2.510,00
Current price €2.510,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : ATLS-V2-38

Proaim Atlas V2 Video Production Camera Cart



What Makes Atlas V2 Cart The Best Choice?

Proaim Atlas V2 Video Production Camera Cart

Stable and Sturdy

Solid Aluminum Construction ensures stability even when loaded to the max payload of 500kg/1100lb.

Compact and Quick

Tool-less Assembly/Disassembly within 2-3 minutes. Quickly Packs down to a 7" thick rollable case.

Proaim Atlas V2 Video Production Camera Cart

Adaptable

Multiple accessories are available to calibrate this Cart into precisely what you need.

See how the Atlas V2 Cart Works

Specifications

Construction

  High Grade CNC Aluminum

Load Capacity

  up to 500kg / 1100lb

Leg outer diameter

  38mm

Thickness of Cart Edge's

  8mm

Cart Size

  Assembled (ATLS-V2-38): Length 38'' Width 25.75'' Height 41”
  Assembled (ATLS-V2-48): Length 48'' Width 25.75'' Height 41”

Accessory Mounting

  ¼" -20, 3/8" -16 threads, Arri Standard Nato mountings

Rod Length

  21inch

Cross-Bars length

  22"

Cross-Bar Mounting Diameter

  38mm

Wheel Dimensions

  Diameter – 10 inch
  Width – 3.5 inch
  Alloy Rim Diameter – 4 inch
  Wheel Pressure 30 psi

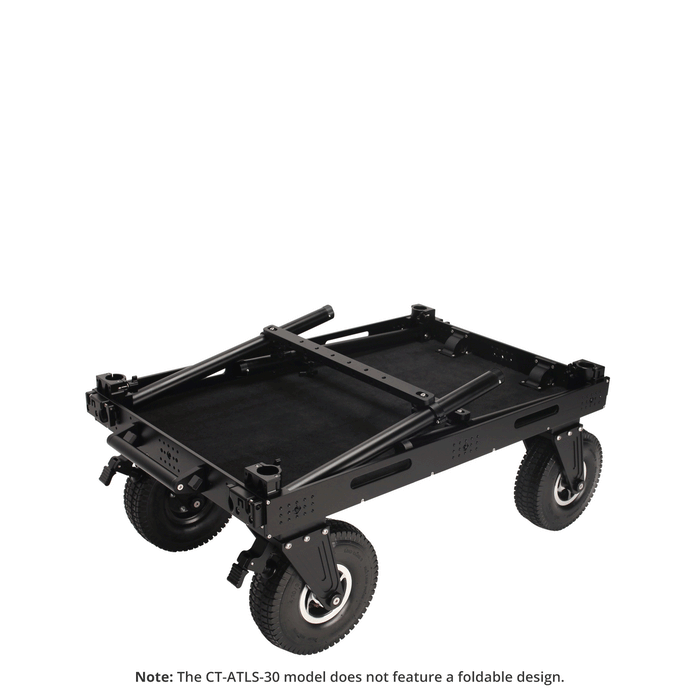

Collapsed Dimensions

Proaim Atlas V2 Video Production Camera Cart

Dimension

Proaim Atlas V2 Video Production Camera Cart

Product Weight (without packing)

  Atlas V2 38" - 53 kg / 116.84 lb
  Atlas V2 48" - 58 kg / 127.86 lb

Product Weight (with packing)

  Atlas V2 38" - 63.02 kg / 139 lb
  Atlas V2 48" - 68.6 kg / 151 lb

Packing dimension

  Atlas V2 38" - 78 x 110 x 40 cm / 31" x 43" x 16"
  Atlas V2 48" - 79 x 137 x 31 cm / 31" x 54" x 12"

In The Box

4 x Supporting Rods
2 x Accessory Cross Bars
4 x Pneumatic Tyres
2 x Handle
Upper Shelf
Lower Shelf

User Manual

01.

Highly Customizable Film Cart

The Proaim Atlas V2 Cart is much more than a standard camera cart. Modular by design, it allows you to attach gimbals, monitors, baby pins, laptop plates, and anything else you might want to use with it. Choose from over 50 different accessories and you can transform it into a DIT Cart, a Sound Cart, a Lighting Cart or even an Equipment Dolly.

The built-in ¼" -20 and ARRI standard 3/8" -16 threaded holes offer creative mounting options on the Cart.

Proaim Atlas V2 Video Production Camera Cart
Proaim Atlas V2 Video Production Camera Cart

02.

Very Convenient Design

The Proaim Atlas V2 Cart has been designed with the convenience of its user in mind. The drawer is affixed to your cart by drilling holes into the cart, ensuring a solid and secure attachment.

An average Assembly/Disassembly Time of 2-3 minutes, Tool-less Design and its ability to Collapse into a Compact 7" Thick Suitcase makes it the most user-friendly Cart out there.

Simply put, the combination of these features helps you in saving the precious time on-set and makes it super easy to travel.

03.

New Adjustable Handles

The new and improved handle grips incorporate a hinge locking mechanism that allows you to remove or adjust the position of the handle quickly and easily without removing the top shelf. It helps in creating leverage needed while lifting the Cart quickly over obstacles, stairs or other incline surfaces.

Proaim Atlas V2 Video Production Camera Cart
Proaim Atlas V2 Video Production Camera Cart

04.

Advanced Wheel System

The Proaim Atlas V2 comes equipped with 10" Pneumatic wheels and 100% sealed bearing housing, which ensures that your Cart endures any load placed upon it and still roll incredibly smooth and silent.

The use of Pneumatic wheels instead of the industry-standard rubber wheels makes sure that the overall setup remains light, smooth and sturdy.

2 x 360° rotatable rear wheels and two non-rotatable front wheels make cart steering extremely smooth and easy.

The wheels attach to the Cart via a Dovetail Mechanism that ensures quick assembly and disassembly.

05.

Always in Control

The specially designed foot brakes of the Atlas V2 Cart keep it completely steady, stable and secure for reliable parking and eliminating your worries even when you are not close to the Cart. The brakes are such that they don't become loose over time even when the tires experience some wear and tear, and the thickness decreases.

Proaim Atlas V2 Video Production Camera Cart
Proaim Atlas V2 Video Production Camera Cart

06.

Grip Cutouts

The Atlas V2 features new Grip Cutouts on both the shelves of the Cart. These allow you to lift the Cart from both sides and load it into the truck or other vehicles. You can also use these to lift the Cart over obstacles or move it from one place to another.

07.

Travel-Friendly

Altas V2 can break down and stored in a few minutes. By design, the Atlas V2 is built to collapse on itself when not in use, making it incredibly easy to transport from one location to the next. No longer are you in need of a grip truck to bring your equipment to the next location, when now it all can sit firmly in the trunk of a midsized Sedan.

Proaim Atlas V2 Video Production Camera Cart
Proaim Atlas V2 Video Production Camera Cart

08.

Built to Last

The Atlas V2 cart is built with long hard-working days in mind. Constructed of aluminum, the Cart itself is incredibly robust in design. Most importantly, its collapsible design seems to have been done with zero sacrifices on the build quality of the Cart as a whole. The machined crossbars add rigidity to the Cart. At no moment whatsoever does the cart sway in its rigidity. Our emphasis on using only the best quality of raw materials makes sure the Cart lasts you a lifetime and is super stable even when fully loaded.


Different Sizes of Proaim Atlas V2 Cart

Proaim Atlas V2 Video Production Camera Cart

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products





  • is there a way to lower the standard height 41” like i just need a 30” to 34” ?

    There is no option to change the height of the Proaim Atlas V2 cart as its top shelf is fixed. But we have the Proaim Victor pro cart as it has an up & down movable top shelf so you can adjust the height. For reference, you can watch this youtube video: https://youtu.be/6dyyoJ1zkqw

  • Is P-MLMT-M2 compatible with Atlas Cart ?

    Yes, the Proaim Multi Monitor Mounting System P-MLMT-M2 is compatible with the Proaim Atlas Cart.

  • What carpet you use for the carts ?

    The Black non woven carpets are used on our Carts.

  • Hi. Can you deliver to Australia?

    Yes, we do ship our products to Australia.
