Proaim Alphabet 21ft Jib Crane Package

€1.926,00
SKU : P-A21-JCP

Proaim presents its new 21ft Alphabet Jib Crane package for shooters who require ultra-portable jib solution with user friendly features. It’s completely tooless, high strength Aluminum construction with unbeatable stability. The camera crane production package comes with a sturdy dolly for dramatic moves, durable motorized pan tilt head for numerous angles, heavy duty stand for stability, zoom lanc controller for zoom controls and lot more.



Exclusive of weights

"WHAT YOU SEE IS WHAT YOU GET"




Video is for demonstration only
Actual Product may vary due to Product Improvements

View More Videos Here

FEATURES
- Quality crafted construction
- Operate with one hand using auto-tilt mode.
- Get shots from below or overhead subject.
- LCD mounting provision for better viewing.

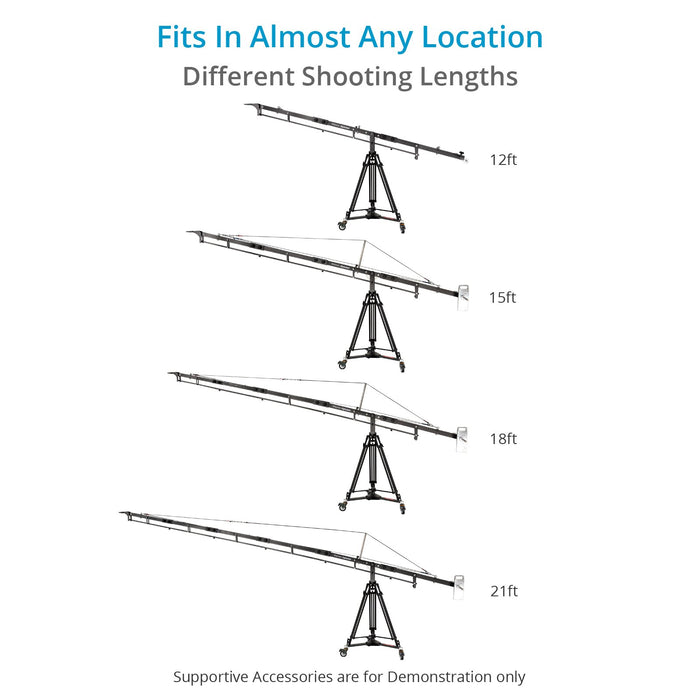

- Easily converts into different sizes.
- Smooth 360-degree panning and tilting ability.
- Heavy Duty 100mm Stand with sturdy dolly for fluid Shots.
- 100% Satisfaction Guarantee.

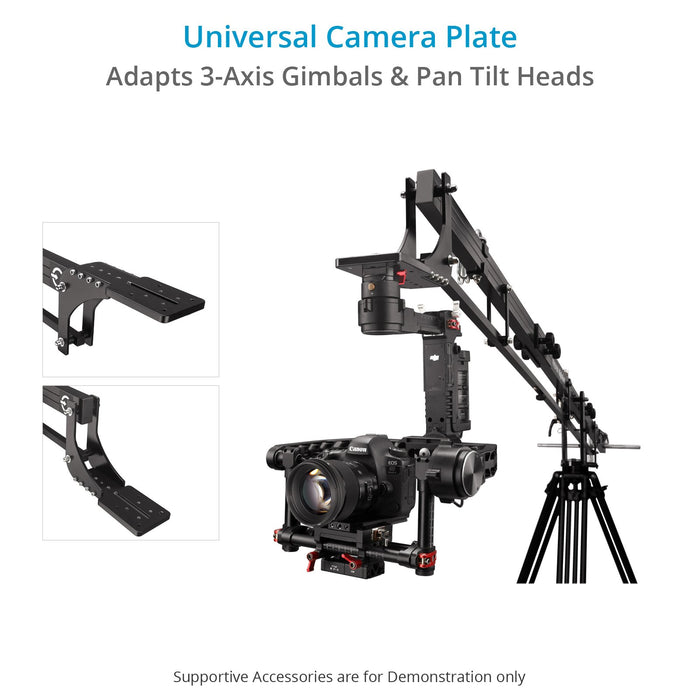

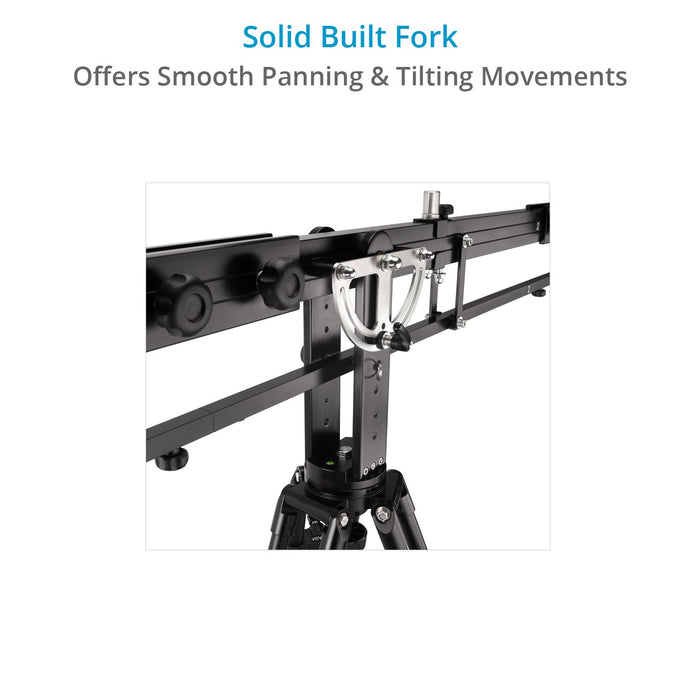

WELL-ENGINEERED HEAD

Complete CNC constructed Rock Solid camera plate can be fixed in any position whether upright or upside down for quick pan tilt connectivity.

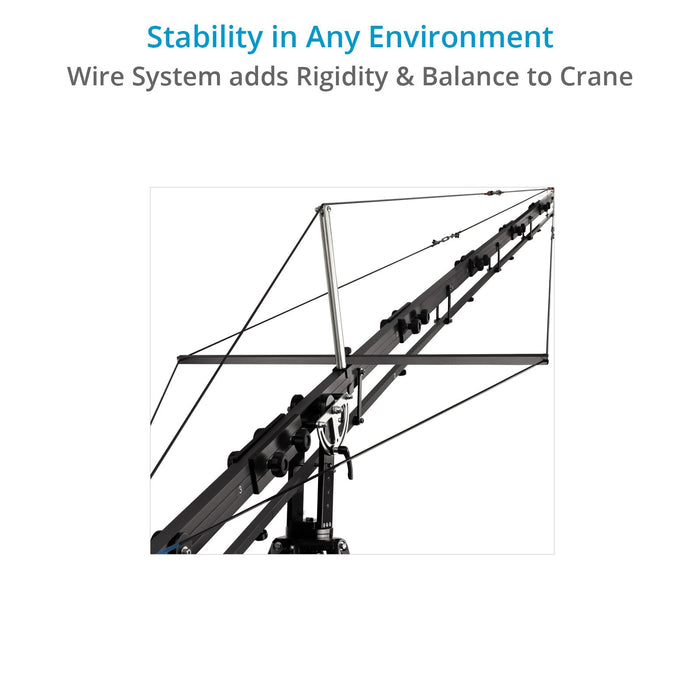

EXCEPTIONALLY STABLE

Hi tensile Balancing cables provide an extra measure of stability and balance adjustment to the jib..


TITLTING LOCK

Features a Tilting lock mechanism to control tilting of the jib.

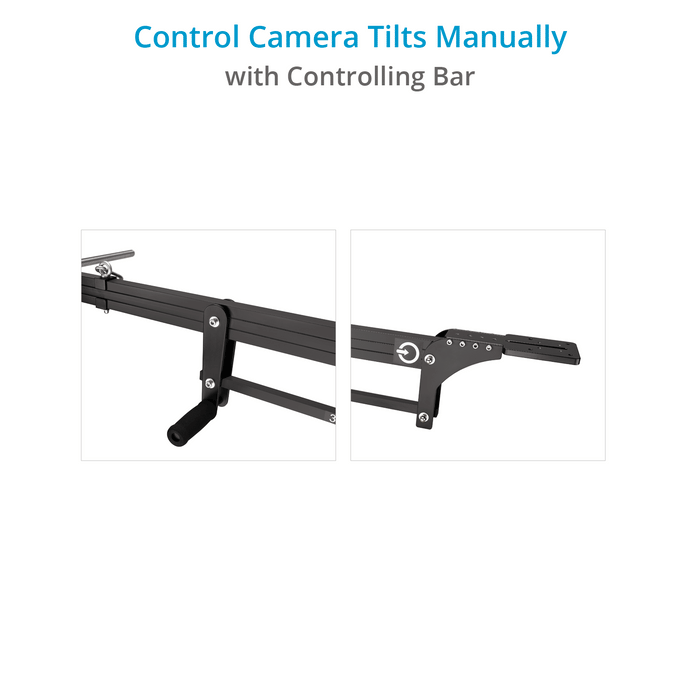

CONTROL OVER INNOVATIVE TILT
The sturdy control bar easily moves the camera plate in different angles.

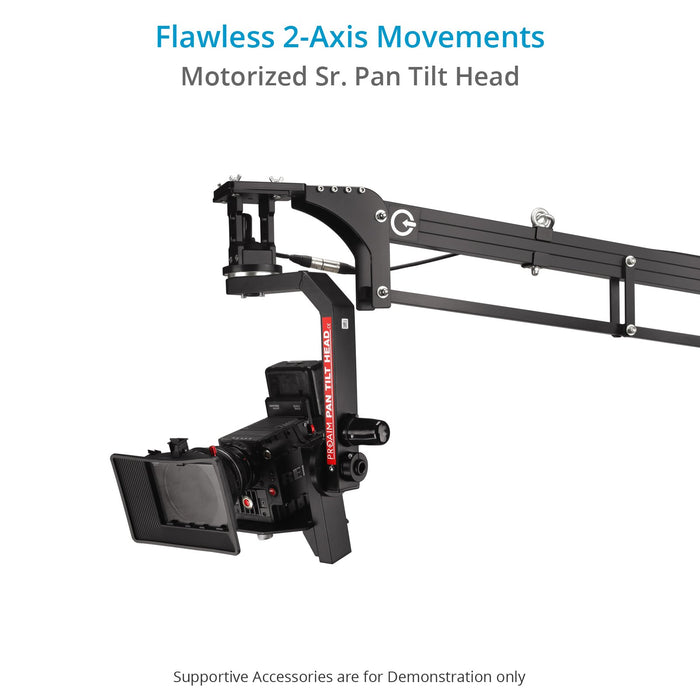

PROAIM Sr. PAN TILT HEAD
Creative flexibility is a built in component as the head can also be used with jib crane arms, tripods and in other remote operating situations that dictate increased production value.

Camera Head Supports maximum camera weight of 16.5lbs.



FEATURES
- Runs on 12V DC power produced by the included A/C adapter or also accepts external 12V DC battery power through the included 3mtr long 4 pin XLR cable for outdoor shooting.
- You receive the Pan-Tilt Head with assembled wiring for Top and Bottom Motor.
- Install Power out to head (4 pin connector) and 12 volt DC power (4 pin XLR) in rear of joystick box and you are ready to go.
- Outdoor use requires rain protection cover.
- Creative flexibility is a built in component as the head can also be used with crane arms, tripods and in other remote operating situations that dictate increased production value.



Achieve unfettered, floating camera moves

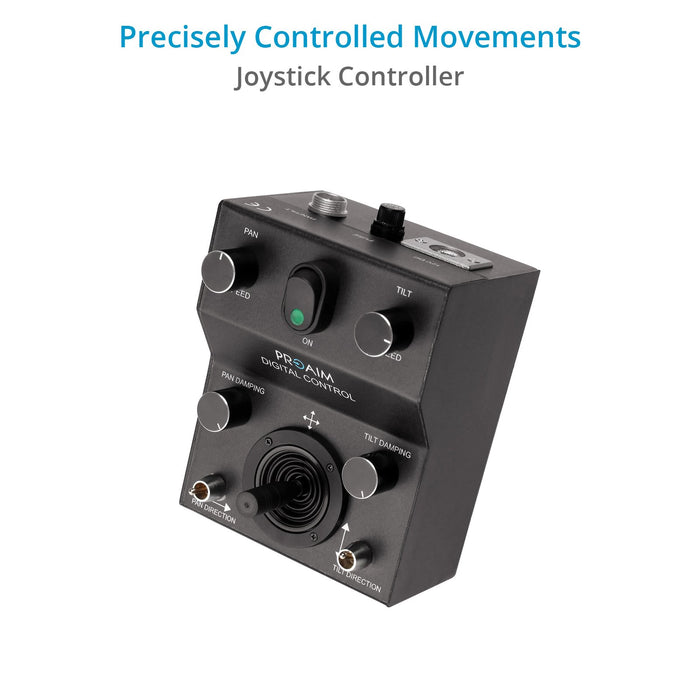

PAN TILT JOYSTICK CONTROL

- The Joystick control system includes a 15mtr long operating cable and AC adapter.
- Variable movement speed control adjusted by 'Speed' and 'Dead Spot' potentiometers on the control stick.
- As the name implies, 'Dead spot' control determines the centre point of the joystick control where no movement will occur
- Operational from a flat surface in handheld mode or when attached to the bottom of the jib arm.


An exquisite body with intuitive control


Superb Proportional Control
- Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
- Joystick is touch sensitive
Small movement – less speed
More movement – more speed



HEAVY DUTY TRIPOD STAND WITH SPREADER
Proaim Heavy duty Tripod Stand ideal for using with the camera jib crane setup upto 200lbs and other heavy duty rigs.




Heavy duty stand ensures stable and smooth shots



Proaim Portable Dolly

Proaim Portable Dolly is a camera tracking device that turns your DSLR or digital camcorder into a pro-style rolling rig and allows silver screen-worthy movement with a max payload of 500kg. Uniquely designed dolly can be used in tabletop, normal and wide modes replacing the need for more costly tracks.


FEATURES
- Use your tripod in 3 legged configuration.
- Quick and easy set up and strike.
- Readily portable dolly.
- Quality design and construction.




Quickly Convertible Design


PROAIM POWER PACK - 12V BATTERY PACK


PROAIM POWER PACK is a high power, professional 12V battery pack designed for portable applications. One of the unique features of PROAIM POWER PACK is that it holds battery check feature wherein LED charge indicator, indicates the power consumption.



FREE PROAIM LANC ZOOM CONTROLLER


The Proaim Zoom Control for DV Cameras is a universal controller for LANC and Panasonic Mini DV or HDV cameras. It works only with most Sony & Canon cameras with a 2.5mm mini-jack LANC input and Panasonic models with a 2.5mm mini-jack Cam Remote input.





An exquisite body with intuitive control


IMAGE GALLERY






The Supportive accessories are for demonstration purpose only.

SPECIFICATIONS

- Fully CNC constructed Camera Jib Crane
- Length of camera Jib arm - 21ft

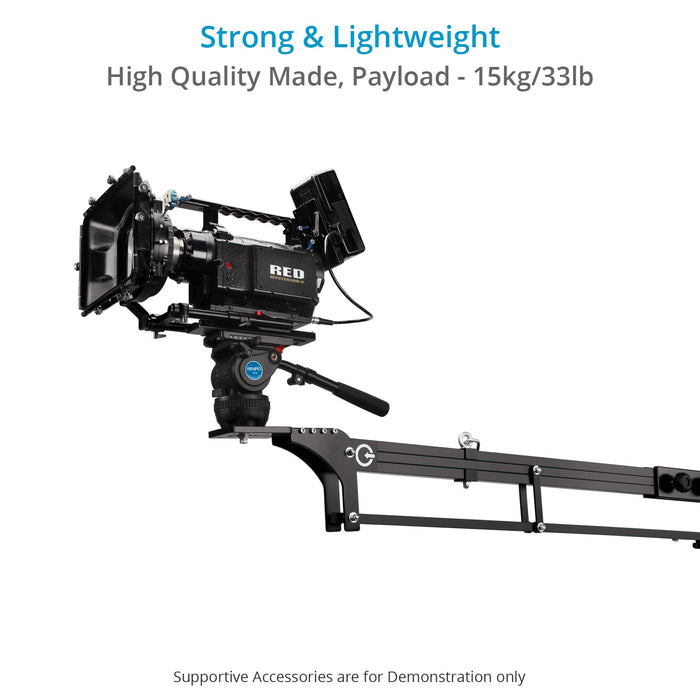

- Load capacity -15 kg/33 lb
- Self balance- 27 kg/59 lb
- Crane Pan Lock - No
- Crane Tilt Lock - Yes


BALANCING CHART
CAMERA WEIGHT 1kg 2kg 3kg 4kg 5kg
COUNTER BALANCE 3kg 6kg 9kg 12kg 15kg

SR. PAN TILT HEAD

- Camera Head Supports maximum camera weight of 16.5lbs.
- Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec. (high speed).
- Minimum height of head 17".
- Maximum height of head 26" .
- Precision machined parts and industrial grade electronic components.
- AC Adapter input - AC 100 - 240V output - DC 12V -2A.
- Driven by two high-torque coreless DC motors that pan and tilt the head through 360 degrees.
- It takes 2 minutes to pan through 360 degrees at its slowest speed without stopping and just 7 seconds at its highest speed.
- Consistent operation at its slowest speed without stopping.
- Camera platform height can be adjusted at any point .

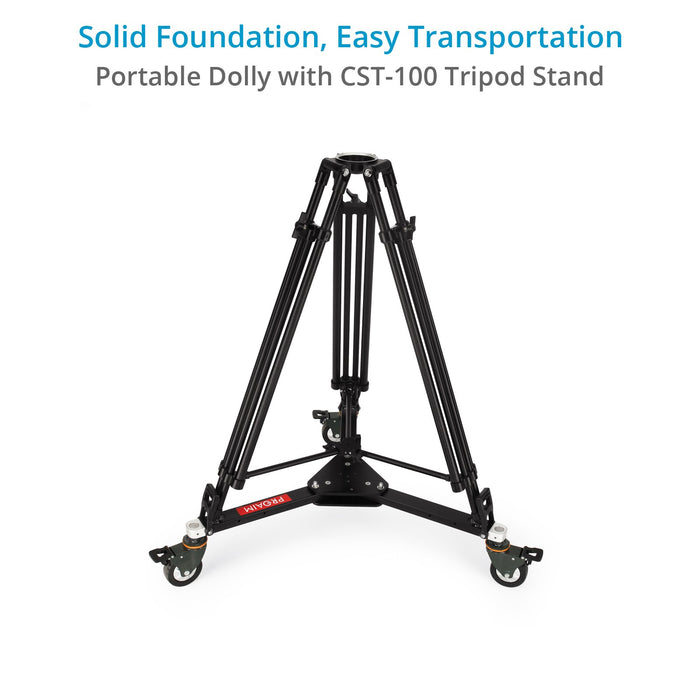

CST-100 STAND

- Max length of tripod: 60 inch
- Minimum length of tripod: 34 inch
- Collapsible height: 36 inch
- Tripod tubes made of Aluminum
- Diameter of tripod tubes: 20mm and 14mm
- Load capacity: 80kgs /176lbs
- Tripod Weight: 6.50 kg

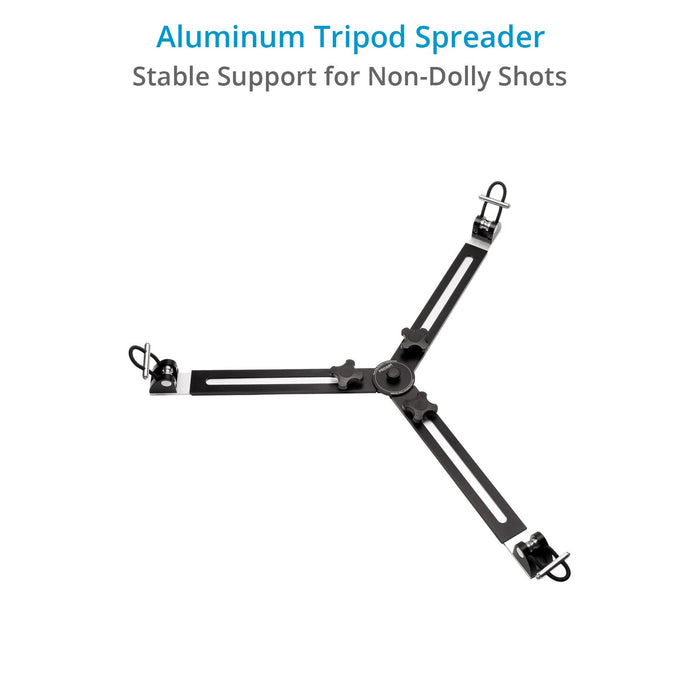

SPREADER

- Max length of spreader leg - 24 inch
- Minimum length of spreader leg - 14.5 inch
- Spreader collapsed height - 37 cm
- Weight kgs / lbs - 1.64 / 3.6
- Height of tripod spreader- 1 inch
- Tie down foot made of - flexible
- Elastic with tightening knobs
- Sleek knob for tightening the telescopic extension


PORTABLE DOLLY

- Machined from heavy duty - rugged use aluminum
- Weighing capacity-500kg
- Quality components ensure long life use
