01.
HIGHLY FUNCTIONAL

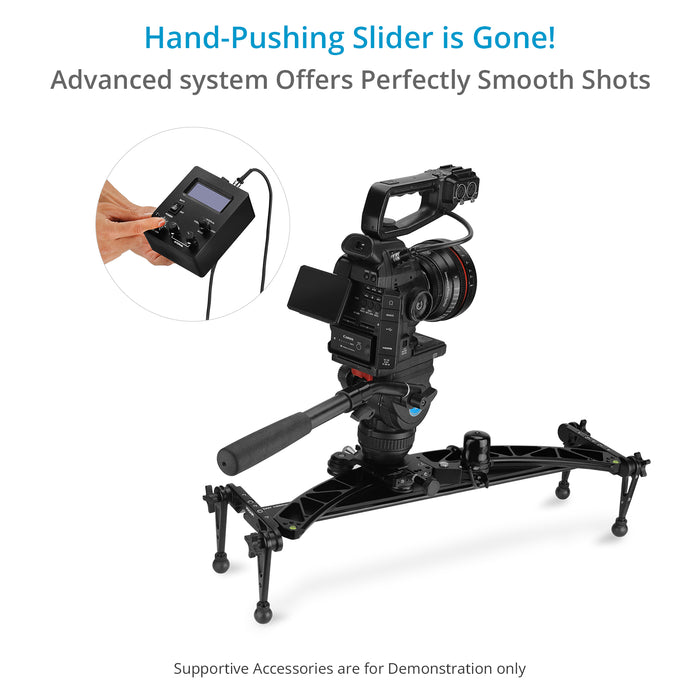

Control the movement of your slider at your fingertips with Proaim’s Advanced Motion Control System, which is exclusively designed to use with Proaim Curve-120, Curve-180, Curve-N-Line, and Line Camera Sliders.
The controller lets you program precise, smooth, incremental camera movements best suited for the interviews, establishing shots, and more.
Likewise, when combined with the slider, this versatile system facilitates fluid motorized slides, thus creating dynamic video and photography sequences.
Precisely Control The Movement Of Slider At Your Fingertips!
02.
EFFORTLESS, GLIDING MOVES

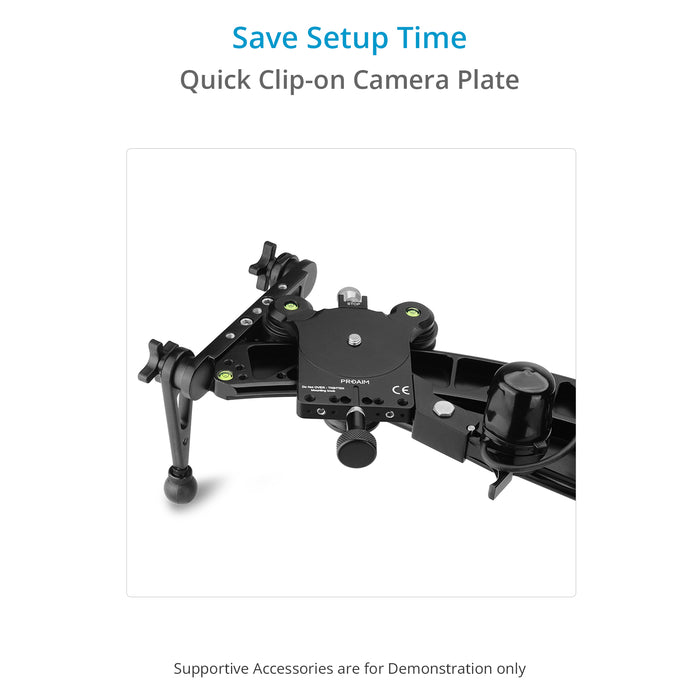

The firm quick-release camera plate is compatible with straight and curved track sliders and connects easily without removing the end feet.

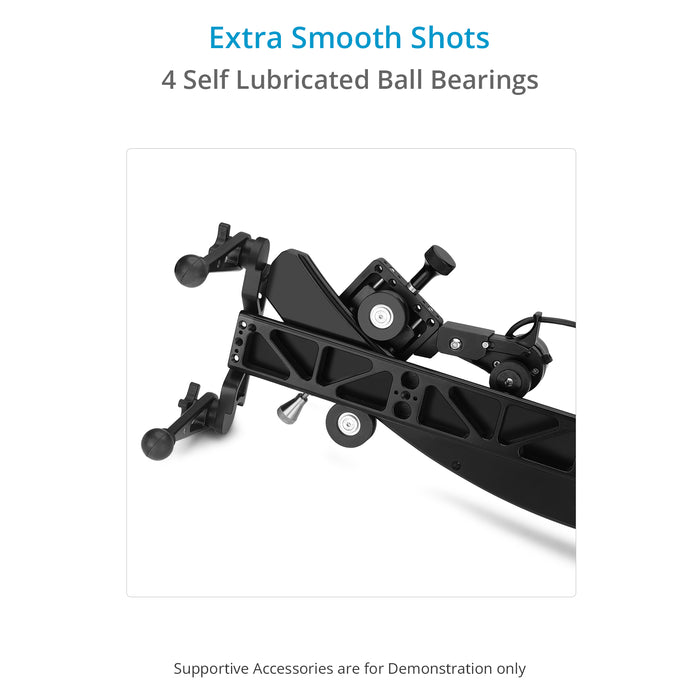

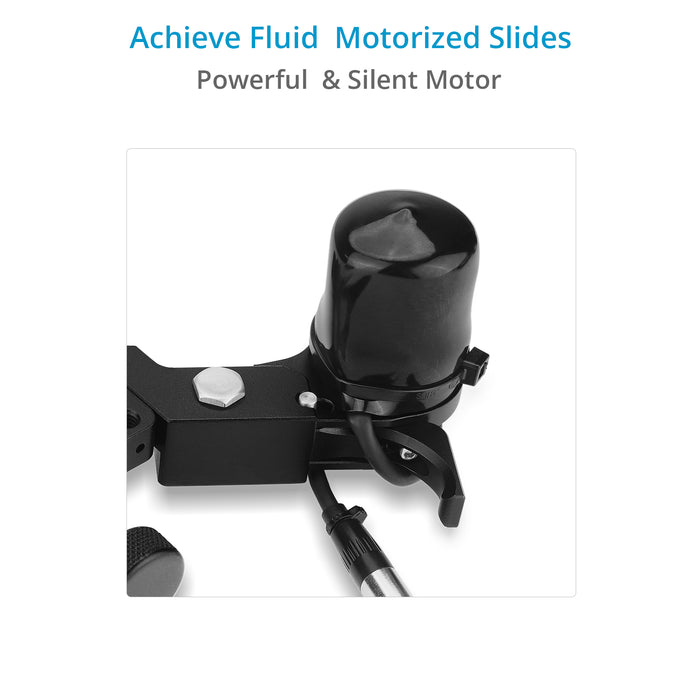

The camera plate, powered by a quiet precision motor, glides effortlessly with a 5kg / 11lb payload using high-end sealed bearings.
03.
PRECISE MOVEMENT CONTROL

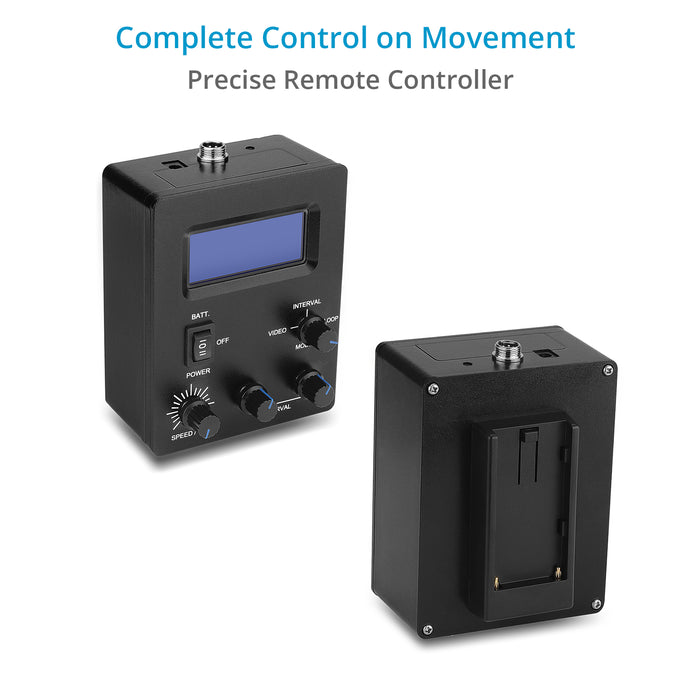

Using the dials of the advanced remote controller, you can program a slide with specific functions and modes.
The controller operates in three different modes:
i. Video/Normal Mode: It lets you create manual video moves from the controller. The farther you turn from 0-10, the faster it goes (10 being the maximum speed).
ii. Interval Mode: This allows you to set the frequency of moves. It includes three adjustable parameters:
a.) Length (in mm) – Adjust the total length of camera travel on the slider from 600/900/1200 mm, through the Speed/Direction dial.
b.) Distance (in mm) – Decide the Distance of each segment, from 1-300mm, to be covered on the total chosen length through the left Interval dial.
c.) Pause (in sec) – Set the period of short breaks, from 1-999 seconds, according to your needs while the camera travels on chosen length through the right Interval dial. The number of breaks is automatically aligned when both Length & Distance parameters are tuned and are achieved by advanced algorithms programmed within the controller.
iii. Loop Mode: You can use the looping feature to automatically move your camera back and forth to focus on your subject. Adjust the speed from 0 to 10, which goes from end to end on the Speed/Direction dial.

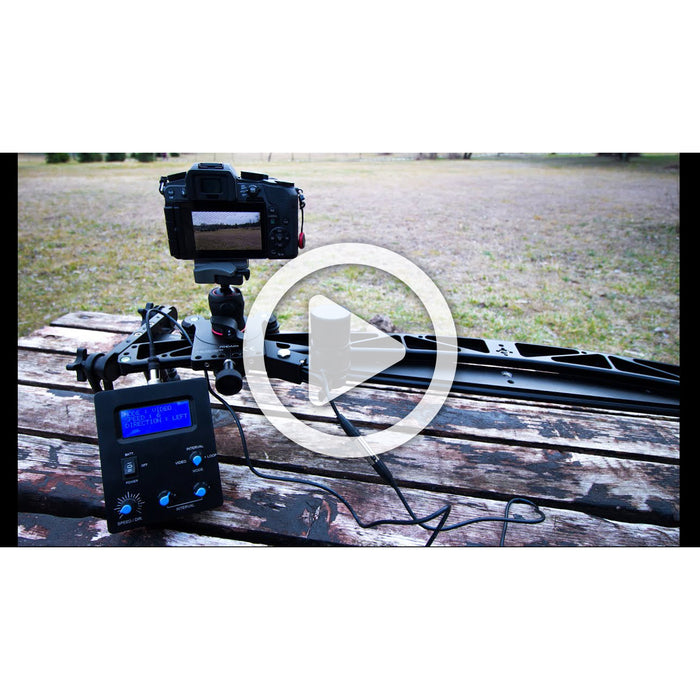

IN-ACTION VIDEOS
SPECIFICATIONS
MOTION CONTROL
Construction
High-grade CNC Aluminum
Motor
30RPM 12V
Noise level of the Motor
<40dB
Load Capacity
5kg / 11lb
Camera Mounting
1/4"-20 Screw
1/4" to 3/8" Convertible Screw included
Dimensions
Product Weight (Without Packing)
1.8kg / 3.9lb
Product volumetric Weight (With Packing)
2.8kg / 6.2lb
REMOTE CONTROLLER
Battery Input Power
7.2-12V DC
Adapter Input Power
100-240V 1A 50/60Hz
Output Power
12V 3A
On/Off Switch
Yes
Battery Plate
Yes
Battery Working Hours
2 hours (Battery is not included)
Speed
2 ft Curve-N-Line Slider
Minimum: 48 sec
Maximum: 11 sec
3 ft Curve-N-Line Slider
Minimum: 1 min 21 sec
Maximum: 17 sec
4 ft Curve-N-Line Slider
Minimum: 1 min 36 sec
Maximum: 22 sec
Curve-120 Slider
Minimum: 1 min 18 sec
Maximum: 13 sec
Curve-180 Slider
Minimum: 2 min 26 sec
Maximum: 26 sec
2 ft Line Slider
Minimum: 48 sec
Maximum: 10 sec
3 ft Line Slider
Minimum: 1 min 29 sec
Maximum: 17 sec

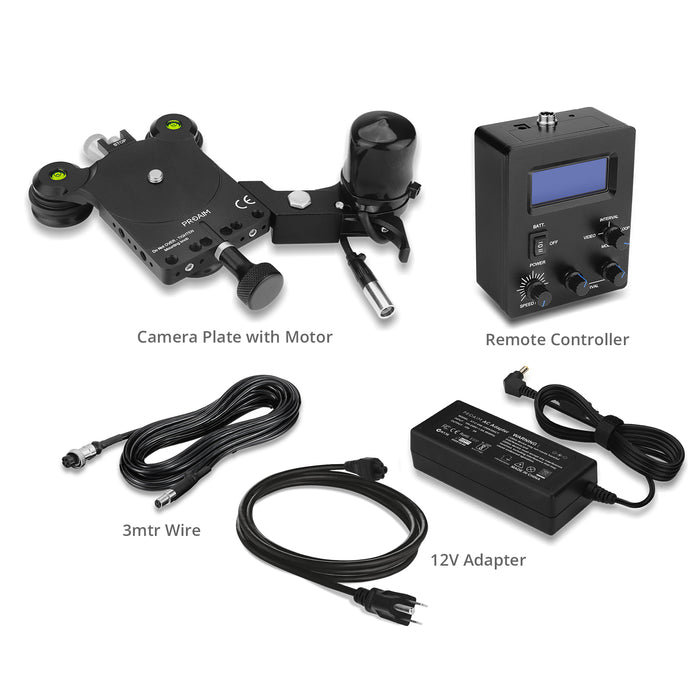

IN THE BOX
Proaim Motion Control System
Remote Controller
3 meter wire
12v Adapter
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
What is the size of the camera screw on the camera plate?
By default the camera plate comes with a screw size of 1/4". We provide a 1/4 to 3/8 Convert Screw Adapter BS-100 with which the camera screw can be easily converted to 3/8".
-
In "loop" mode, does the motor ramp down gently to zero, and then reverse? Or is it a "hard reverse"?
In the loop mode motor ramps down gently and reverse.
-
Do you have a manual for this remote?
Yes.
-
I purchased the Proaim Advanced Motion Control System along with a slider . I noticed that every time I touch the speed control, the motor stops briefly and then resumes at a different speed. I also own a controller by Pro media gear with a similar slider. When I use that controller the slider is stepless and gradually speeds up and does not stop. My question is your is your motor controller supposed to stop when I adjust the speed?
Yes, you are correct, the motor will stop when you change the speed of the controller, and then it will work at that speed.
-
Does your advanced motion controller trigger the camera for timelapse?
Yes, P-MC-CNL-01 has a trigger option in the loop mode but does not have a timelapse feature.
