01.
PROFESSIONAL. STRONG. LIGHT. SMOOTH.

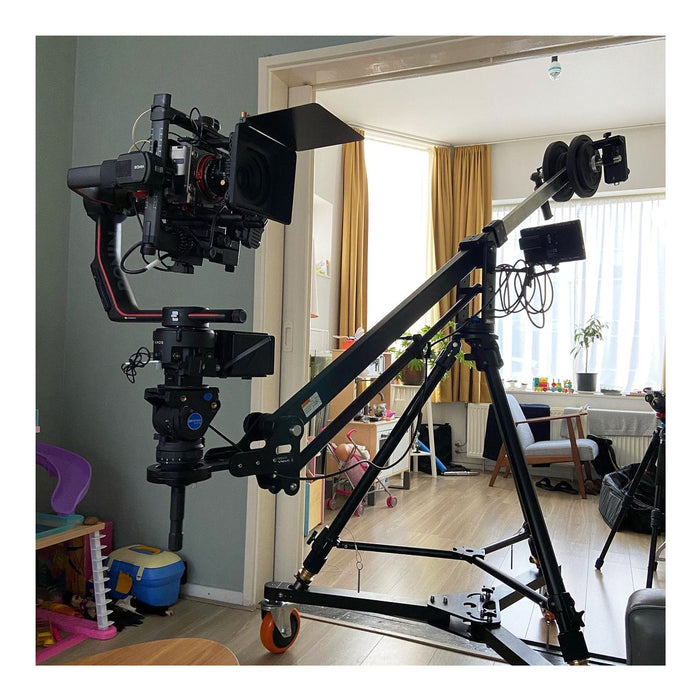

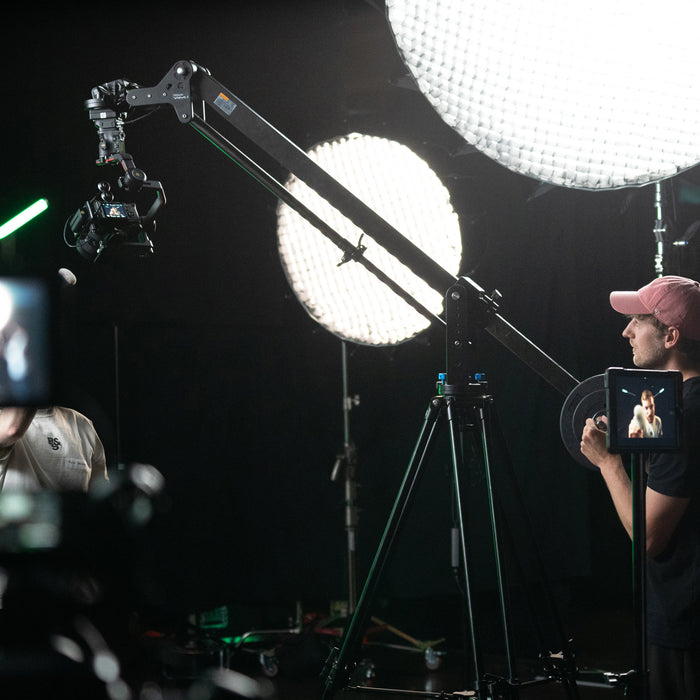

Proaim 7' Wave-2 Plus Video Jib Crane, specifically designed for indoor & outdoor video productions, is a portable filming solution for videographers and cinematographers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as telescopic design, versatile camera mount, sturdy assembly hub, panning knobs, making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.

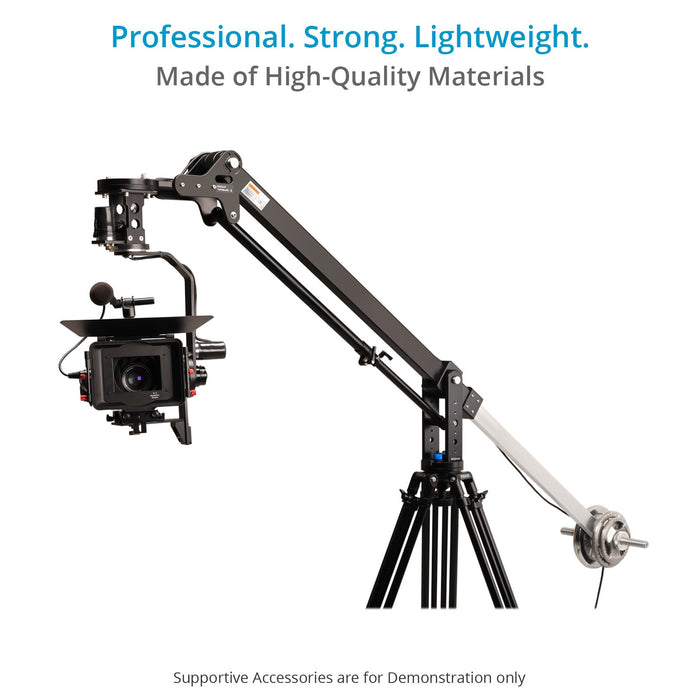

High strength Aluminum construction with unbeatable stability holds camera setups up to 25kg / 55lb payload.
Powerful, Simple & Affordable
Best Travel Crane for Outdoor Extremes & Indoor Studio Shots!!
02.
EXPERTLY CRAFTED JIB

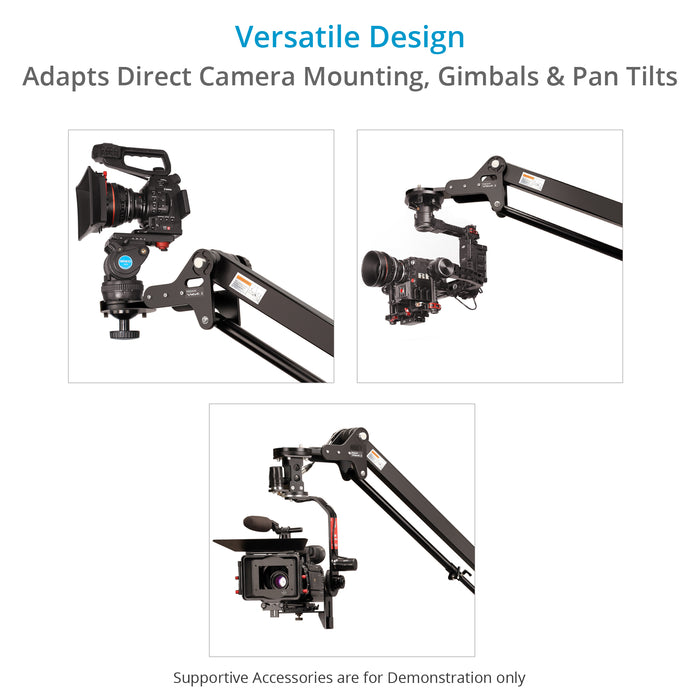

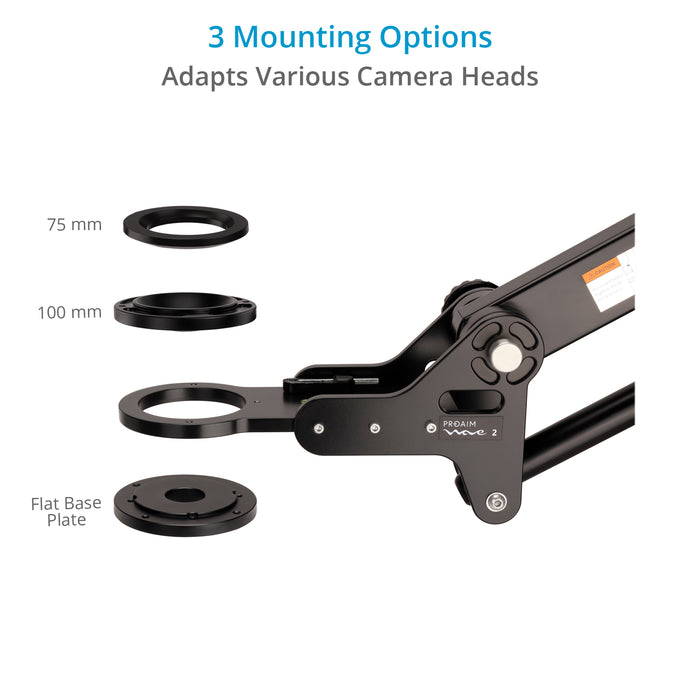

The Jib has a camera head mount that accepts 75mm/100mm fluid heads.

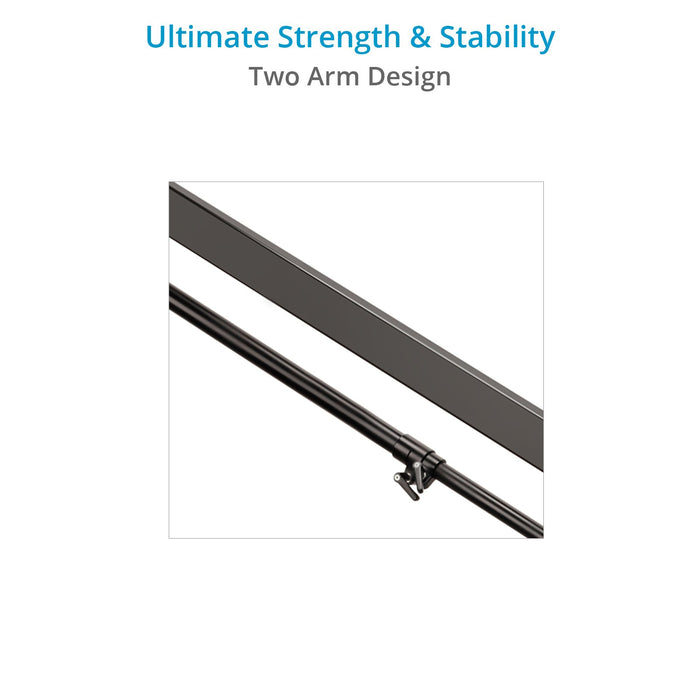

Two Arm Design offers enhanced strength & stability to entire jib setup.

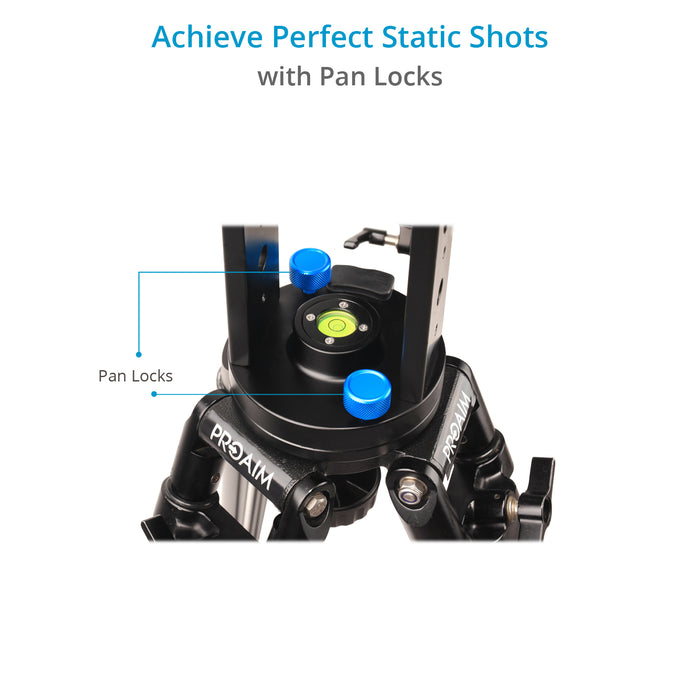

The Jib comes with pan knobs to control the panning of Jib.
Built-in bubble leveler offers fast, accurate set up on uneven surfaces.

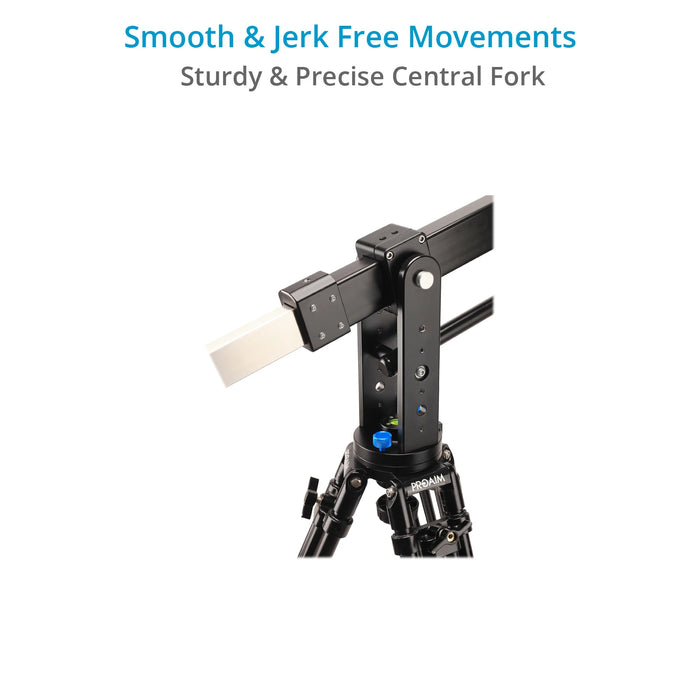

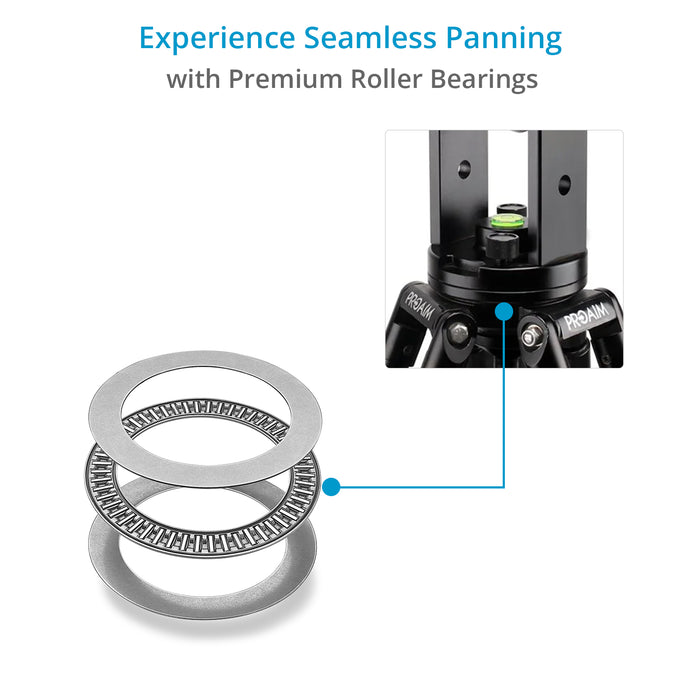

Assembly hub provides the perfect drag for smooth panning of the jib arm and absorbs unwanted vibration or movement from the operator.

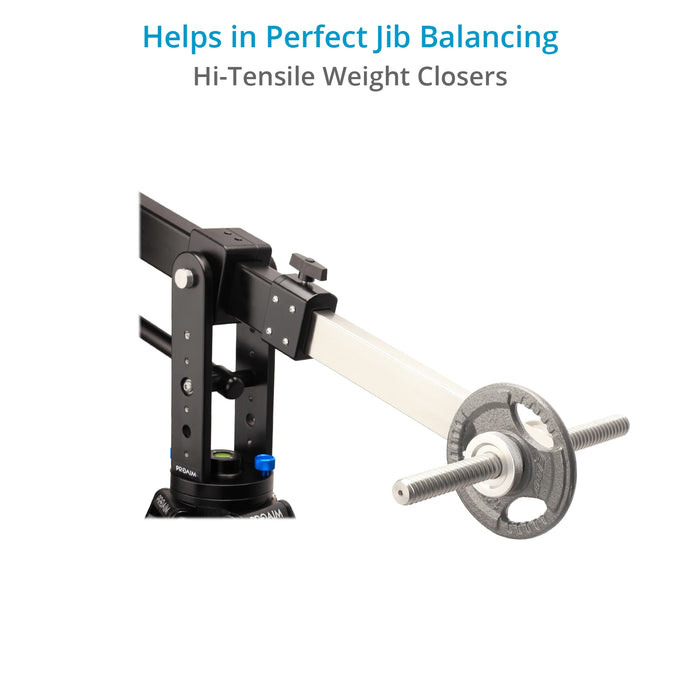

Hi-tensile weight closers keep the weight discs intact for perfect balance.
03.
ADAPTABLE LENGTHS

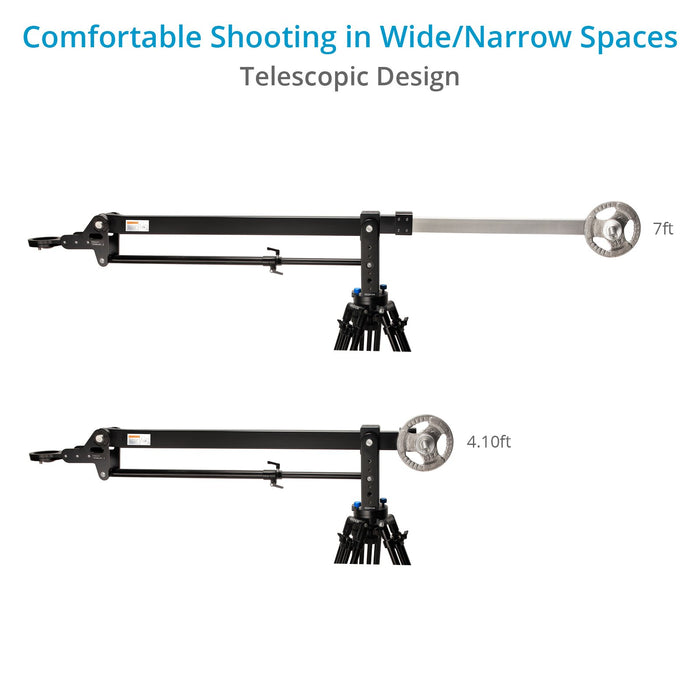

This travel-friendly Jib telescopes from backside, which helps in the balancing of jib. You can adjust the arm length from 4.10 feet to 7 feet.
The ability to change the length allows you to use the Crane in various scenarios.
04.
SOLID FOUNDATION FOR WAVE 7' CRANE

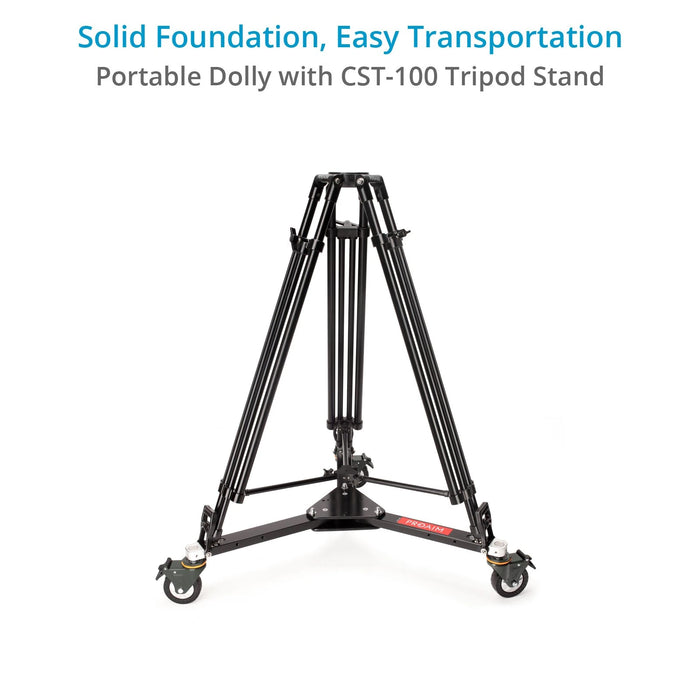

This excellent combination of CST 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.
The Tripod with spreader gives immense support with an incredible payload of up to 80kg / 176lb and is highly stable in use.
Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payloads up to 500kg / 1100lb.
The main features of Dolly are – Secure Tripod feet holders, locking brakes, high-quality wheels and foldable design.
05.
ENHANCE YOUR CREATIVE VISION

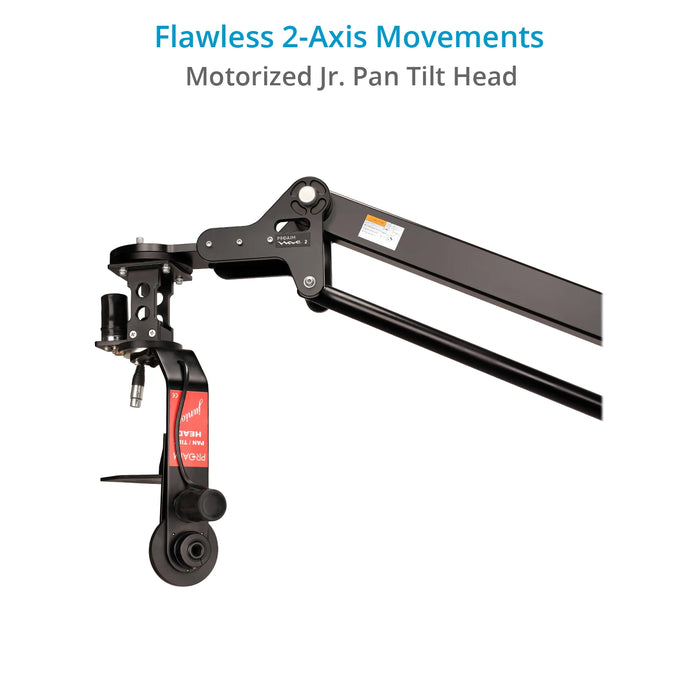

Proaim Jr. Pan Tilt Head
Proaim 2-Axis Jr. Pan Tilt offers a complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 5kg/11lb with ease. Creative flexibility is a built-in feature. The Pan Tilt head can be used with jib crane arms, tripods, and other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Jr. Pan tilt is a user-friendly Controller System.
06.
PAN TILT FEATURES
Two Coreless Motors
Two coreless high torque motors provide inaudible movements along with a payload capacity of 5kg / 11lb, which is substantially higher than its counterparts.
Brass Gears
The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.
07.
EASY OPERATION

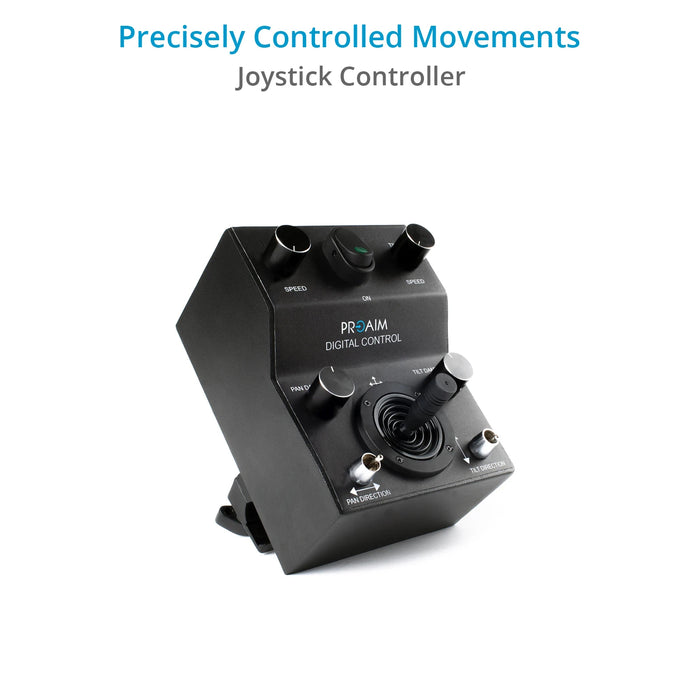

Speed Controller
The Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.
Damping Control
Damping control prevents the Head from stopping with a jerk enabling you to achieve smooth endings.
Pan-Tilt Direction
You can reverse the panning & tilting direction as & when required.
08.
MOST AFFORDABLE JIB SOLUTION
For camera rigs under 25kg / 55lb, there isn't a better crane system for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 7' Wave-2 Plus Jib package eliminates that concern by providing an excellent jib solution at an economical price.
09.
SIMPLIFIED TRANSPORT

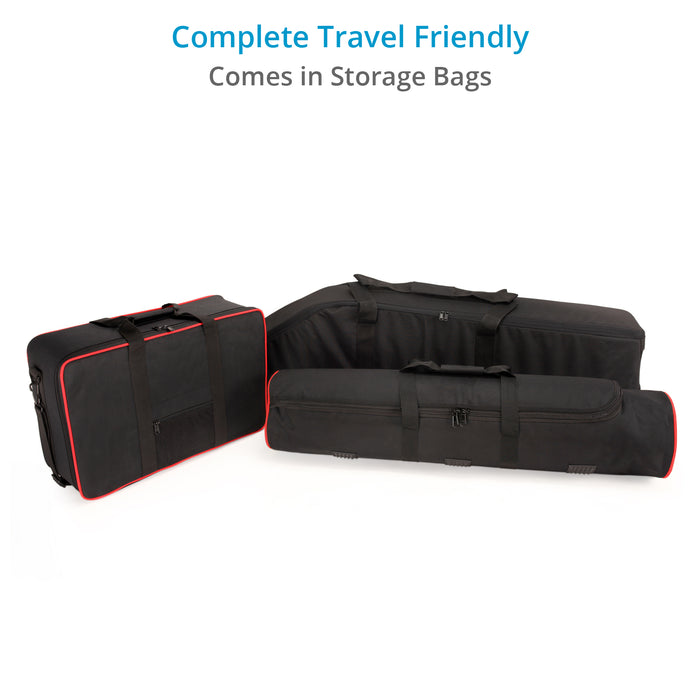

The Crane System comes in high-quality bags for easy storage. These compact bags are easy to carry with you to different sets and locations.
IN-ACTION VIDEOS
SPECIFICATIONS
7' WAVE-2 JIB
Construction
Aluminum black anodized Camera stabilizer
Load Capacity
up to 25kg / 55lb
Tripod mount
100mm diameter
Camera Mount
Flat base plate for Pan tilts heads
100mm and 75mm Bowl head (with ring)
Telescopic Range
4.10 feet to 7 feet
Pan Radius
360°
Jib Pan Lock
Yes (via pan friction knobs on U-Hub)
Jib Tilt Lock
No
Camera Plate Tilt Lock
Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)
JUNIOR PAN TILT HEAD
Construction
High-grade CNC Aluminum
Load Capacity
5 kg / 11 lb
Pan Tilt Movement
360°
Motors
Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)
Speed
Minimum: 6°/sec Maximum: 51°/sec
It Covers 360° at Slowest Speed in 2 minutes
It Covers 360° at Highest Speed in 7 seconds
Gears
2 Small: 13.5mm (Brass)
2 Large: 88mm (Aluminum)
Height Adjustment
Minimum Height: 18.5" / 46.99cm
Maximum Height: 22" / 56cm
Joystick Controller
Axis: 2
Connectors: 2x 4-Pin XLR Male Connectors
Pan/Tilt Direction: Yes
Upgraded with: Damping Knob
AC Adapter input
AC 100-240V ; Output 12V DC-2A
Cables
Cable Length: 15 meters (Can be extended up to 50 meters)
Cable Connector: 4-Pin XLR
Battery Cable: 3 meters Long
Weight
2.7kg / 5.9lb
CST-100 TRIPOD STAND
Construction
High-grade CNC Aluminum
Load Capacity
up to 80kg / 176lb
Diameter of Tripod Tubes
20mm and 14mm
Length
Maximum - 60 inches
Minimum - 34 inches
Collapsible Height
36 inches
Weight
6.50kg / 14.33lb
Package Weight
11.4kg / 25lb
Box Dimensions (LxWxH)
39.7 x 10.2 x 9.5"
ALUMINUM SPREADER
Construction
High-grade Aluminum and Stainless Steel
Compatibility
All Tripods with Twin Spiked Feet
Load Capacity
up to 400kg / 880lb
Spreader Height
50mm / 2 inches
Build-up Radius
41 – 66cm / 16 – 26 inches
Weight
2.47kg / 5.44lb
Package Weight
3kg / 6.61lb
Box Dimensions (LxWxH)
55 x 18 x 14"
PORTABLE DOLLY
Construction
High-grade Mild Steel
Weighing Capacity
up to 500 kg / 1100 lb
Tripod Foot Compatibility
Spiked Feet
Locking Wheels
Yes
Weight of Product
10.7 kg / 23.5 lb
Package Weight
11.65kg / 25.68lb
Box Dimensions (LxWxH)
23.4 x 10.7 x 9.4"
IN THE BOX
Proaim 7’ Wave-2 Video Camera Crane Jib
Proaim Jr. Pan-Tilt Head (PT-JR)
12V Joystick Controller
Proaim CST-100mm Tripod Stand w/ Aluminum Spreader (CST-100-01)
Proaim Portable Dolly (P-PRT-D)
75mm Conversion Ring
100mm Bowl Adapter
Flat base plate
Storage Bags
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
Can the motors run on 18V DC or should I step down out batteries to 12V?
You can use max battery power of 12V.
-
What is the wiring information for the 4 Pin XLR connector
The 4-pin XLR connector is used, in which the 4th number pin is used for DC positive, the 1st number for DC negative, and the 2nd & 3rd numbers remain unused
-
Is this DMX controllable?
No, there is no connection of DMX with the Proaim Jr. pan tilt head.
-
What are the dimensions of PT-JR
"Here are the dimensions Proaim Jr. Pan Tilt Head PT-JR: https://prnt.sc/fM_LFwh0wXvt "
-
Concerning the Proaim 7\' Wave-2 Jib Crane, what \"standard\" counter weights does it use?
The weight rod diameter of the Proaim 7' Wave-2 Jib Crane is 25mm. You can use any counterweight with this diameter. Here is an image for reference: https://prnt.sc/tfZ_gD8tpJEu
-
What is the exact dimension from the centre of the bolt between the wheels?
The distance between one wheel to another is 80cm. Here is the complete dimension of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D:
https://prnt.sc/tBwFkvMn0OFP -
In this Lineo portable tripod dolly are the wheels replaceable with track wheels?
Yes, the wheels of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D are replaceable with Track wheels. Here is the link for the compatible track wheels:
https://www.proaim.be/products/proaim-track-wheel-set-for-proaim-portable-dolly
