01.
PROFESSIONAL. STRONG. LIGHT. SMOOTH.

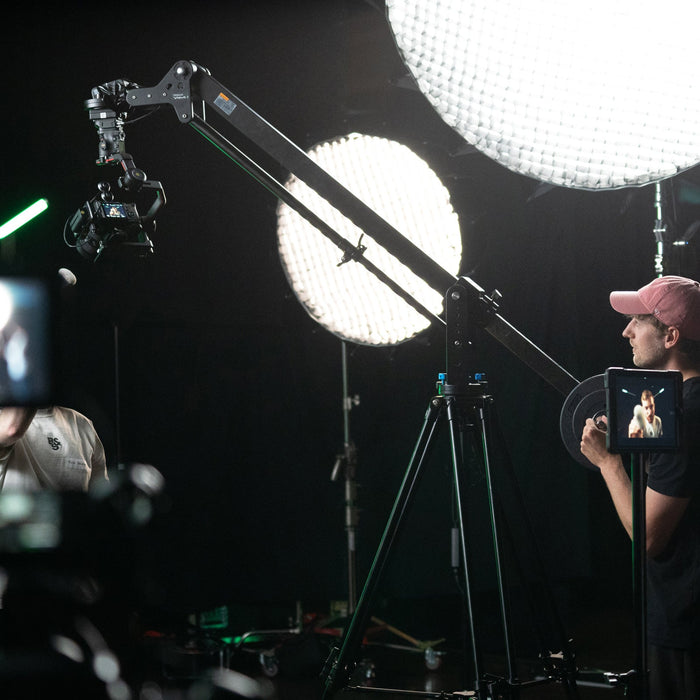

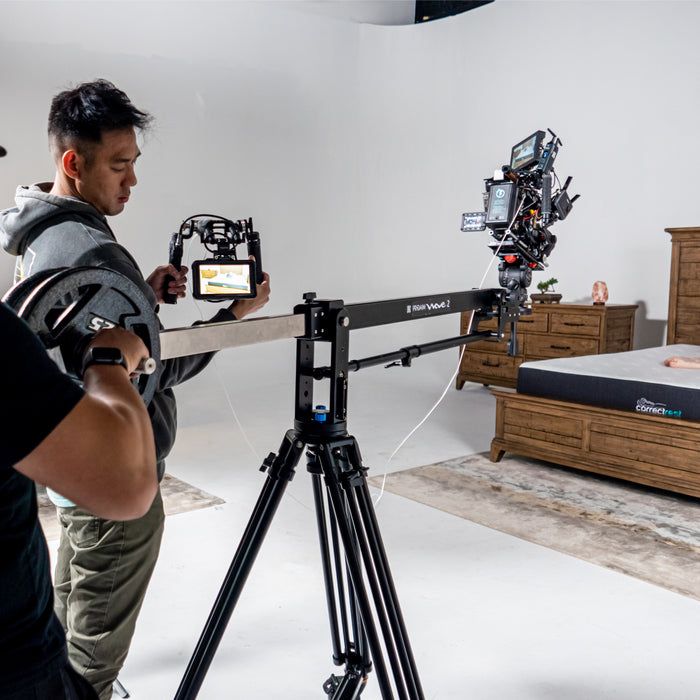

Proaim 7' Wave-2 Plus Video Jib Crane, specifically designed for indoor & outdoor video productions, is a portable filming solution for videographers and cinematographers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as telescopic design, versatile camera mount, sturdy assembly hub, panning knobs, making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 25kg / 55lb payload.
Powerful, Simple & Affordable
Best Travel Crane for Outdoor Extremes & Indoor Studio Shots!!
02.
EXPERTLY CRAFTED JIB

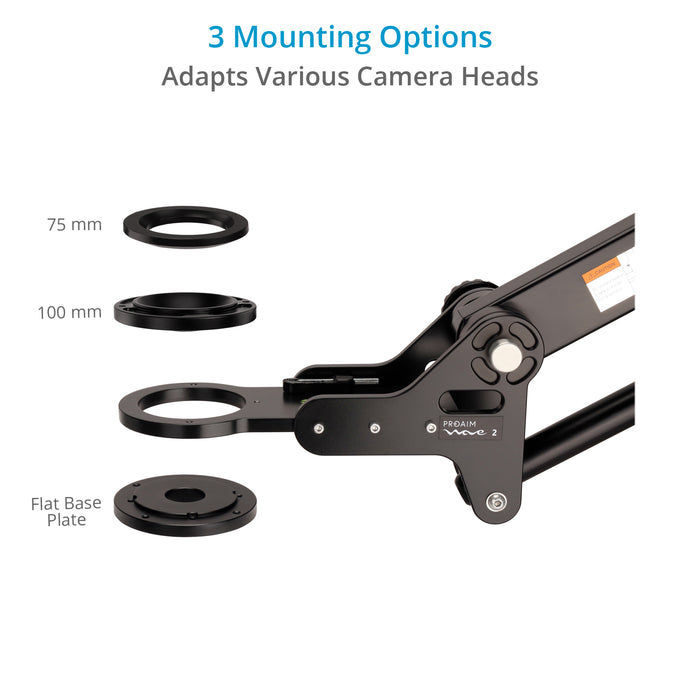

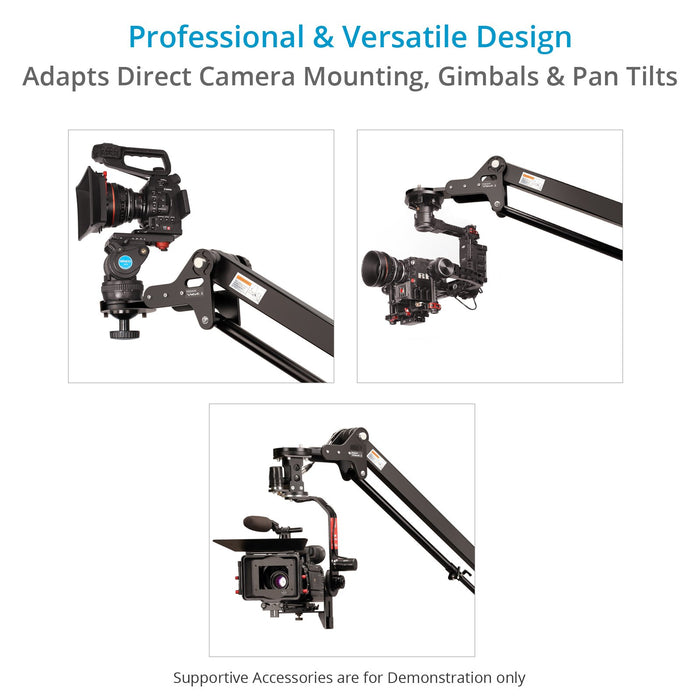

The Jib has a camera head mount that accepts 75mm/100mm fluid heads.

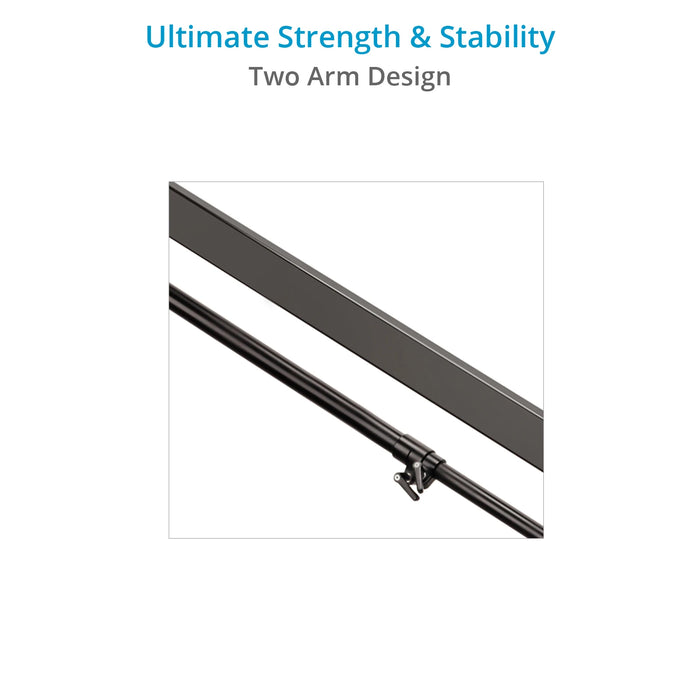

Two Arm Design offers enhanced strength & stability to entire jib setup.

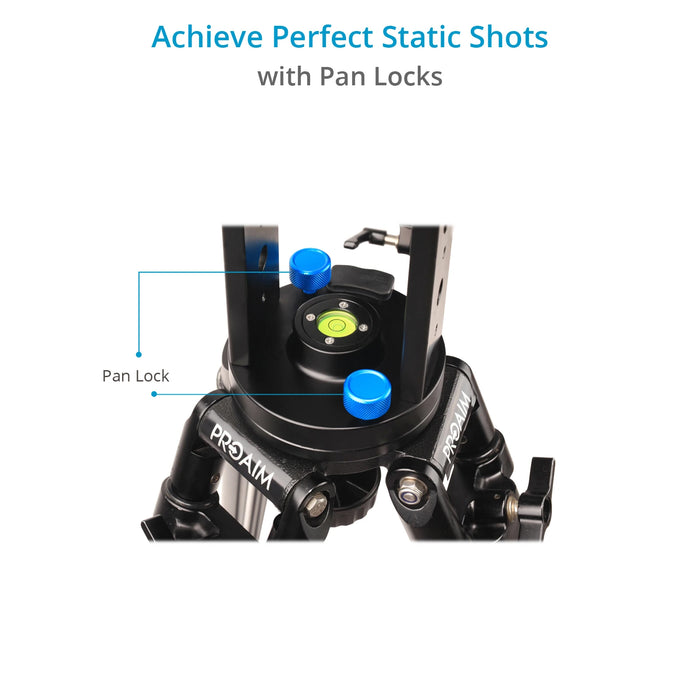

The Jib comes with pan knobs to control the panning of Jib.
Built-in bubble leveler offers fast, accurate set up on uneven surfaces.

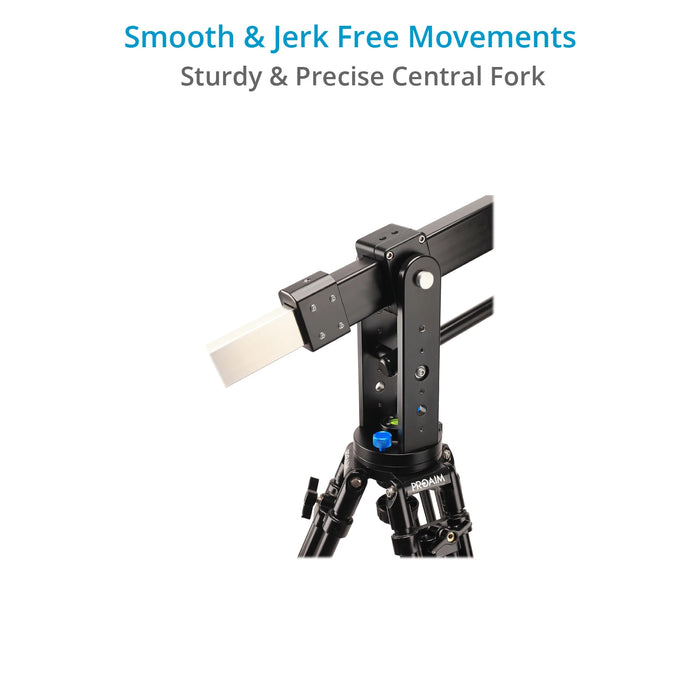

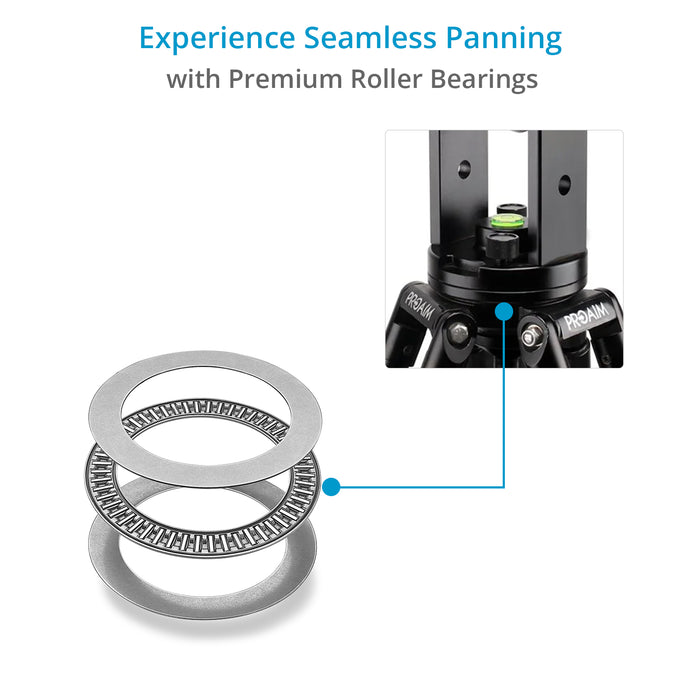

Assembly hub provides the perfect drag for smooth panning of the jib arm and absorbs unwanted vibration or movement from the operator.

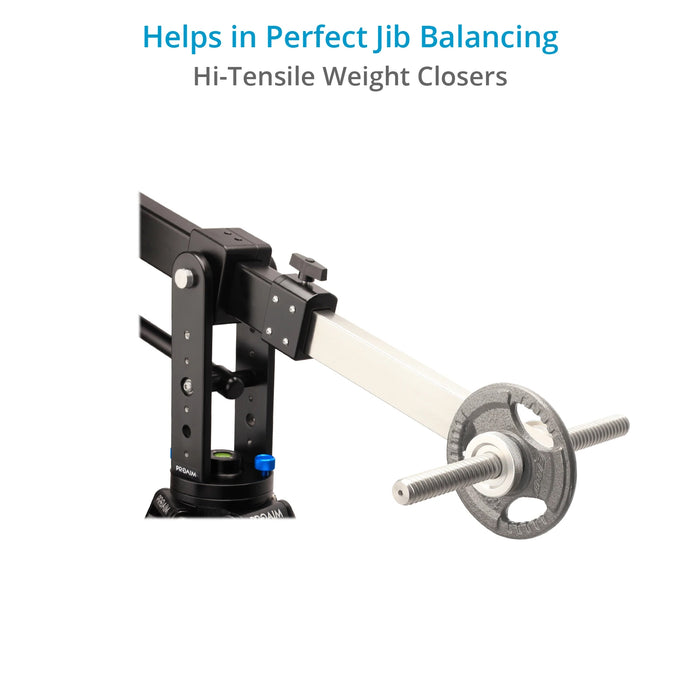

Hi-tensile weight closers keep the weight discs intact for perfect balance.
03.
ADAPTABLE LENGTHS

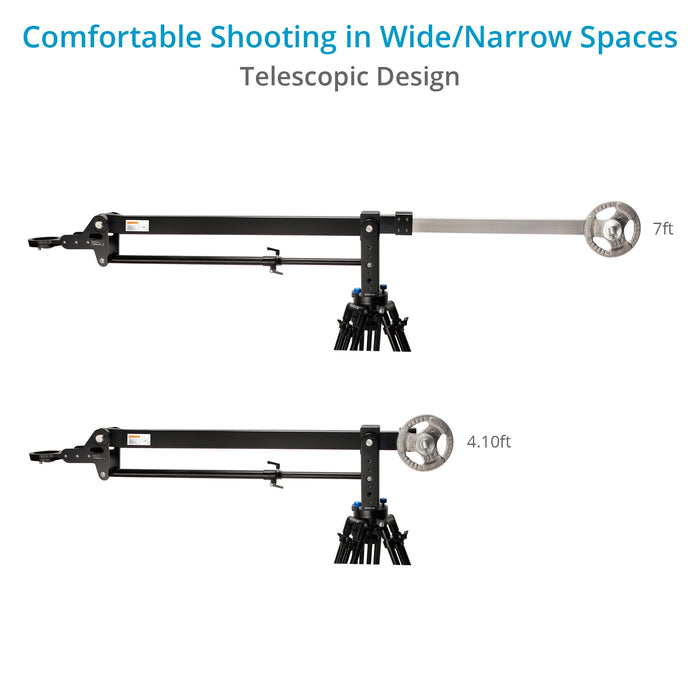

This travel-friendly Jib telescopes from backside, which helps in the balancing of jib. You can adjust the arm length from 4.10 feet to 7 feet.
The ability to change the length allows you to use the Crane in various scenarios.
04.

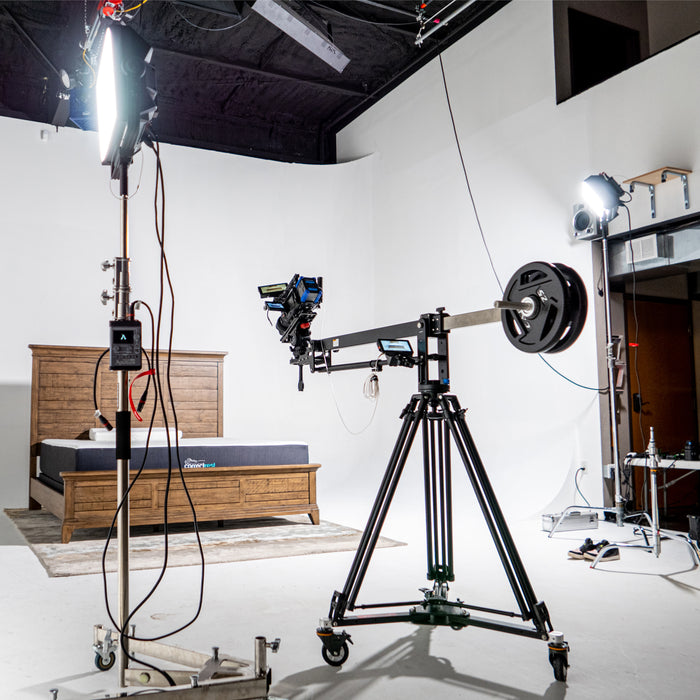

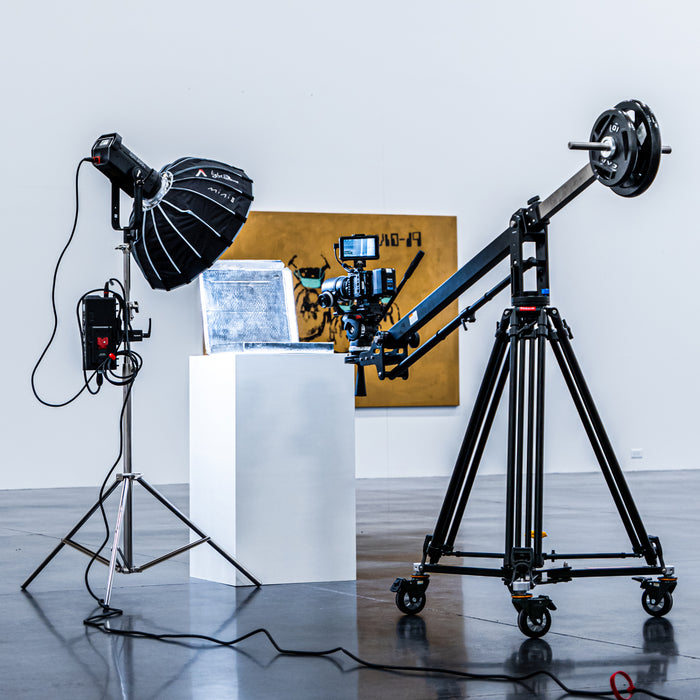

SOLID FOUNDATION FOR WAVE 7' CRANE

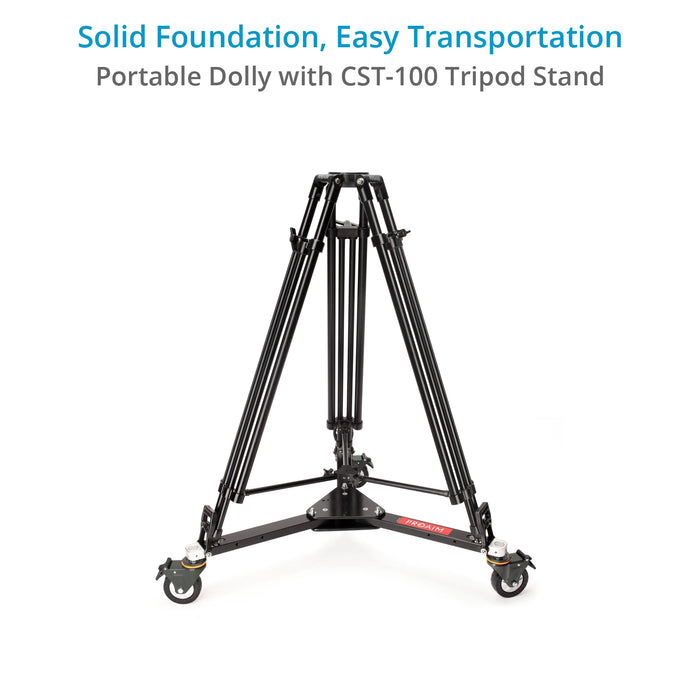

This excellent combination of CST 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.
The Tripod with spreader gives immense support with an incredible payload of up to 80kg / 176lb and is highly stable in use.
Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payloads up to 500kg / 1100lb.
The main features of Dolly are – Secure Tripod feet holders, locking brakes, high-quality wheels and foldable design.
05.
MOST AFFORDABLE JIB SOLUTION
For camera rigs under 25kg / 55lb, there isn't a better crane system for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 7' Wave-2 Plus Jib package eliminates that concern by providing an excellent jib solution at an economical price.
IN-ACTION VIDEOS
SPECIFICATIONS
7' WAVE-2 JIB
Construction
High-grade Aluminum & Stainless Steel
Load Capacity
up to 25kg / 55lb
Tripod mount
100mm diameter
Camera Mount
Flat base plate for Pan tilts heads
100mm and 75mm Bowl head (with ring)
Telescopic Range
4.10 feet to 7 feet
Pan Radius
360 Degrees
Jib Pan Lock
Yes (via pan friction knobs on U-Hub)
Jib Tilt Lock
No
Camera Plate Tilt Lock
AC 100-240V ; Output 12V DC-2A
CST-100 TRIPOD STAND
Construction
High-grade CNC Aluminum
Load Capacity
up to 80kg / 176lb
Diameter of Tripod Tubes
20mm and 14mm
Length
Maximum - 60 inches
Minimum - 34 inches
Collapsible Height
36 inches
Weight
6.50kg / 14.33lb
Package Weight
11.4 kg / 25 lb
Box Dimensions (LxWxH)
39.7 x 10.2 x 9.5”
ALUMINUM SPREADER
Construction
High-grade CNC Aluminum
Compatibility
All Tripods with Twin Spiked Feet
Load Capacity
up to 400kg / 880lb
Spreader Height
50mm / 2 inches
Build-up Radius
41 – 66cm / 16 – 26 inches
Weight
2.47kg / 5.44lb
Package Weight
3kg / 6.61lb
Box Dimensions (LxWxH)
55 x 18 x 14"
PORTABLE DOLLY
Construction
High-grade Mild Steel
Weighing capacity
up to 500kg / 1100lb
Tripod Foot Compatibility
Spiked Feet
Locking Wheels
Yes
Weight of Product
10.7kg / 23.5lb
Package Weight
11.65kg / 25.68lb
Box Dimensions (LxWxH)
23.4 x 10.7 x 9.4"
IN THE BOX
Proaim 7’ Wave-2 Video Camera Crane Jib
Proaim CST-100mm Bowl Tripod stand with Aluminum Spreader (CST-100-01)
Proaim Portable Dolly (P-PRT-D)
75mm Conversion Ring
100mm Bowl Adapter
Flat base plate

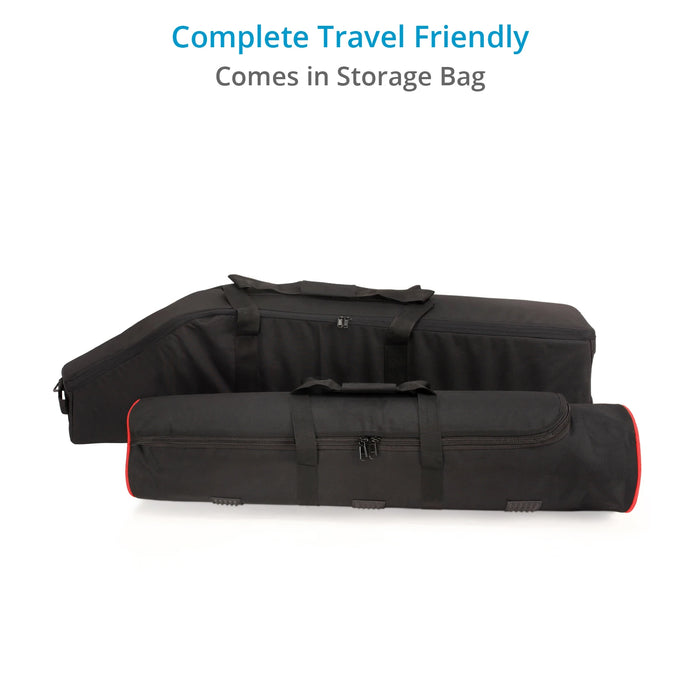

Storage Bags
7'WAVE AROUND THE WORLD
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
Can you attach the Zhiyun Crane 3S gimbal to the Wave-2 and if so which adapter is necessary.
Yes, You can mount Zhiyun Crane 3S gimbal on Proaim 7' Wave-2 Jib with the help of Flycam Quick Release DJI-QR and Proaim Quick Release plate P-QRG.
Here are the item links for your reference:
DJI-QR: https://www.proaim.be/products/flycam-quick-release-mount-for-ronin-m-mx
P-QRG: https://www.proaim.be/products/proaim-quick-release-plate-for-hand-held-gimbals -
Concerning the Proaim 7\' Wave-2 Jib Crane, what \"standard\" counter weights does it use?
The weight rod diameter of the Proaim 7' Wave-2 Jib Crane is 25mm. You can use any counterweight with this diameter. Here is an image for reference: https://prnt.sc/tfZ_gD8tpJEu
-
What is the exact dimension from the centre of the bolt between the wheels?
The distance between one wheel to another is 80cm. Here is the complete dimension of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D:
https://prnt.sc/tBwFkvMn0OFP -
In this Lineo portable tripod dolly are the wheels replaceable with track wheels?
Yes, the wheels of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D are replaceable with Track wheels. Here is the link for the compatible track wheels:
https://www.proaim.be/products/proaim-track-wheel-set-for-proaim-portable-dolly
