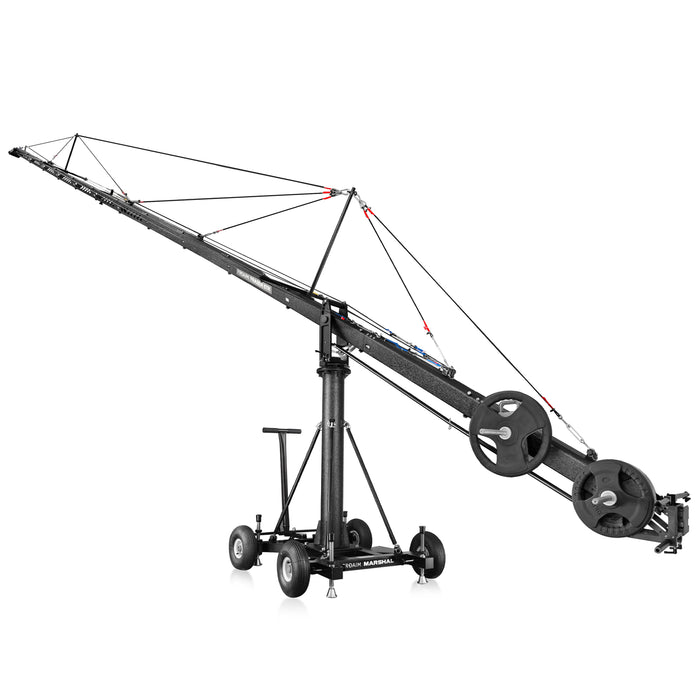

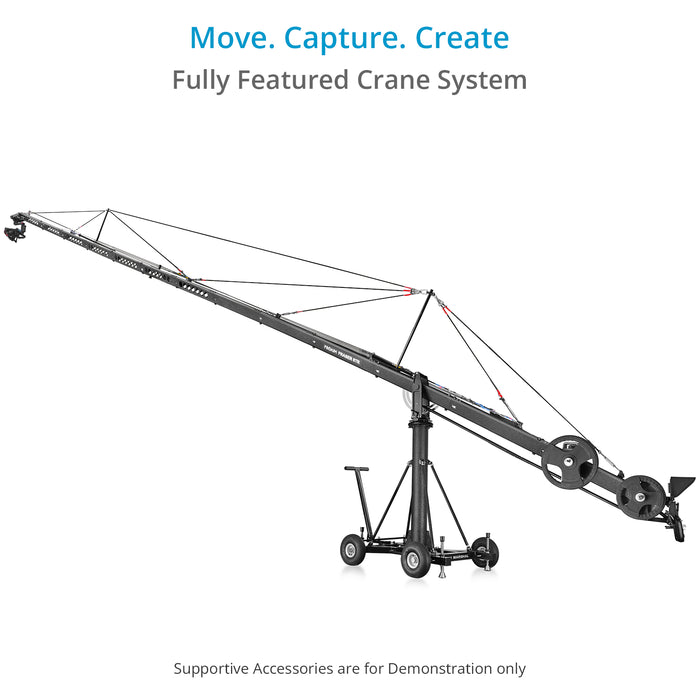

FRASER JIB
- Construction: High Grade Aluminum HE30
- Load Capacity: 35kg / 77lb

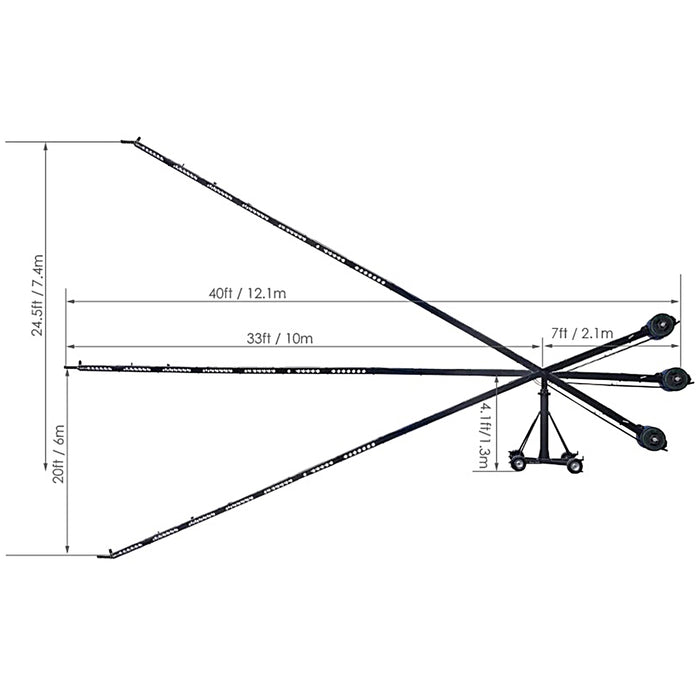

- Crane Length: 40ft

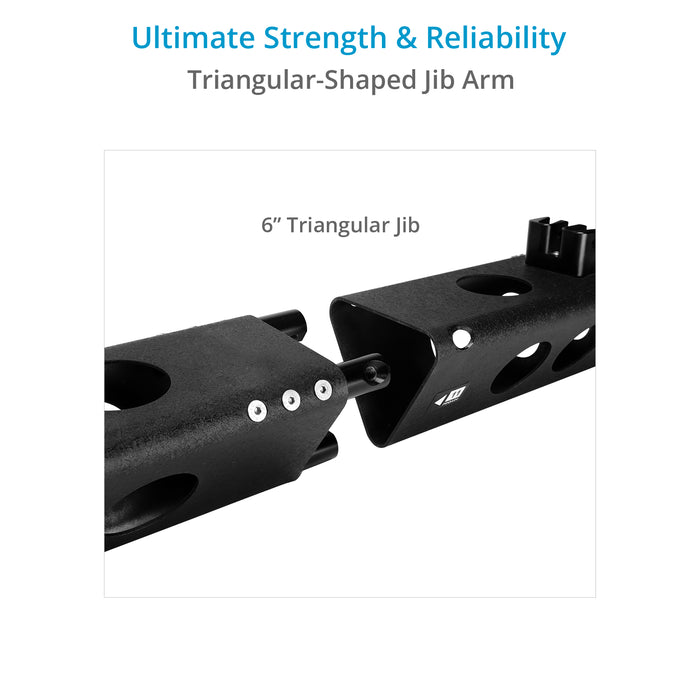

- Jib Arm Break downs to: 13 Sections
- Each Section Length: 3ft
- Jib Arm Wall Thickness: 3.5mm

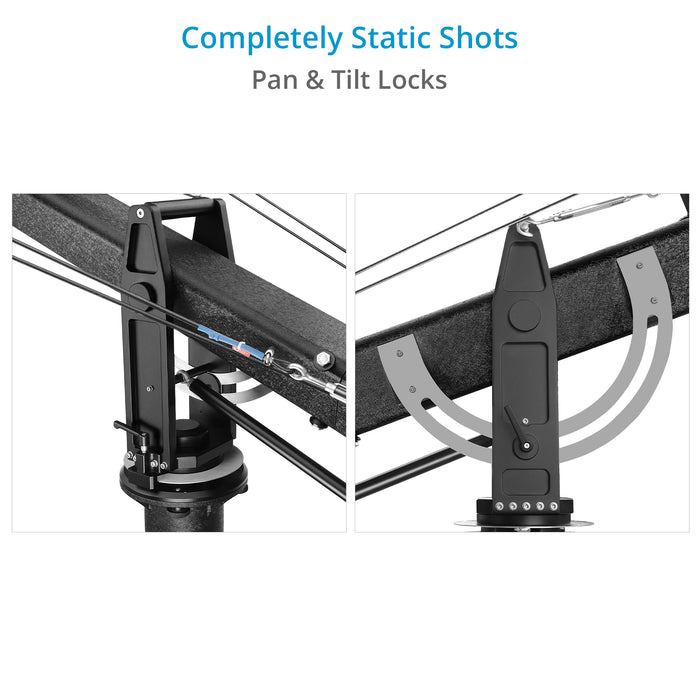

- Crane Pan Lock: Yes
- Crane Tilt Lock: Yes

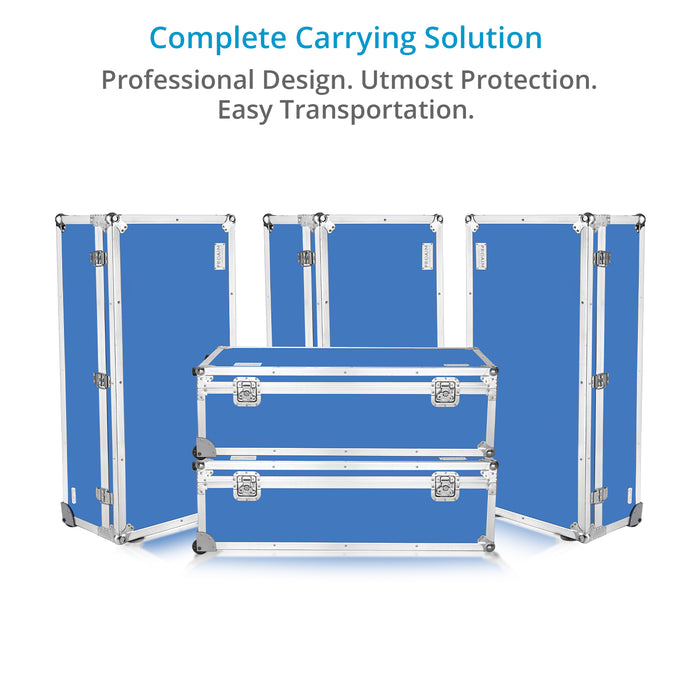

Jib Sections Packing- 4 Flight Case
- Dimensions (without carton box) LxWxH: 55x117x40cm (4x51.4kg)
- Dimensions (with carton box) LxWxH: 118x43x56cm (4x57kg)

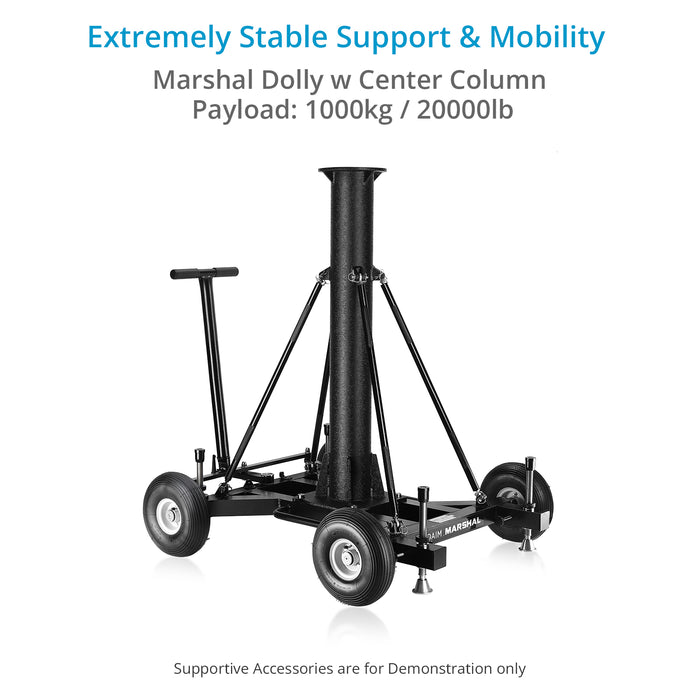

MARSHAL DOLLY WITH COLUMN
- Column Length: 3ft 10in
- Column with Dolly Length: 4ft 5in
- Hub Length: 1ft 8in
- Hub to Dolly Length: 6ft 1in
- Centre of Hub to Dolly: 5ft 7in
- Floor to Dolly Height: 6.5in
- Tyre to Tyre Length: 3ft 10in
- Stopper to Stopper Width: 2ft 8in
Dolly Structure Packing- 1 Wooden Case
- Dimensions (without carton box) LxWxH: 122x102x20cm (50kg)
- Net Weight: 55.5kg / 122lb
Column Packing- 1 Flight Case
- Dimensions (without carton box) LxWxH: 55x132x40cm (58kg)
- Dimensions (with carton box) LxWxH: 132x43x56cm (63.5kg)
Dolly Wheels Packing- 1 Carton Box
- Dimensions LxWxH: 64x50x22cm (14kg)
- Net Weight: 12.75kg / 28lb

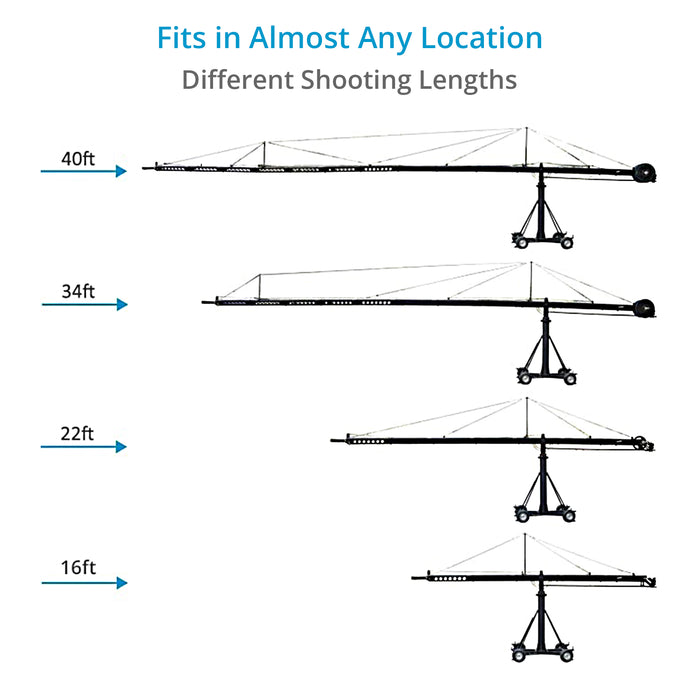

| SELF BALANCE |
| length |
Weight |
| 40ft |
145kg |
| 34ft |
120kg |
| 22ft |
40kg |
| 12ft |
5kg |
|
BALANCING CHART (40ft)
|
|
CAMERA WEIGHT
|
1kg
|
2kg
|
3kg
|
4kg
|
5kg
|
|

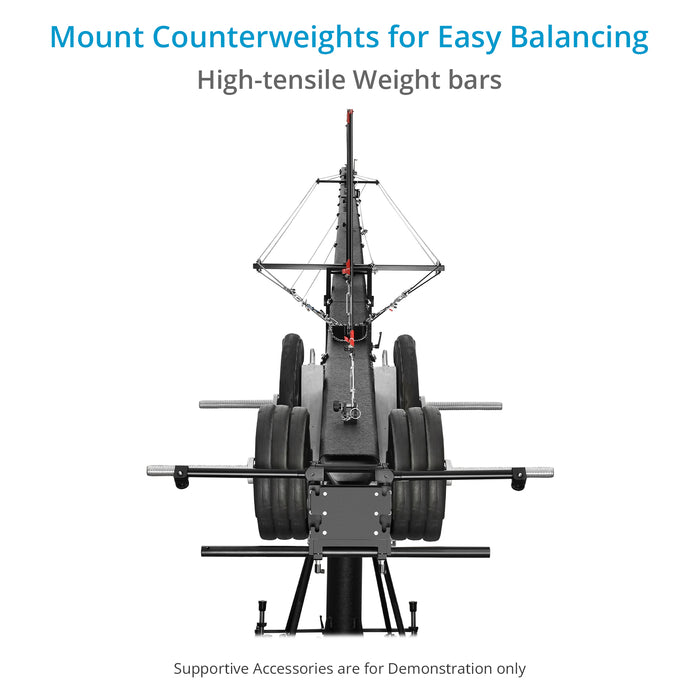

COUNTER BALANCE
|
10kg
|
20kg
|
30kg
|
40kg
|
50kg
|
|
BALANCING CHART (34ft)
|
|
CAMERA WEIGHT
|
1kg
|
2kg
|
3kg
|
4kg
|
5kg
|
|
COUNTER BALANCE
|
8kg
|
16kg
|
24kg
|
32kg
|
40kg
|
|
BALANCING CHART (22ft)
|
|
CAMERA WEIGHT
|
1kg
|
2kg
|
3kg
|
4kg
|
5kg
|
|
COUNTER BALANCE
|
5kg
|
10kg
|
15kg
|
20kg
|
25kg
|
|
BALANCING CHART (12ft)
|
|
CAMERA WEIGHT
|
1kg
|
2kg
|
3kg
|
4kg
|
5kg
|
|
COUNTER BALANCE
|
2kg
|
4kg
|
6kg
|
8kg
|
10kg
|
