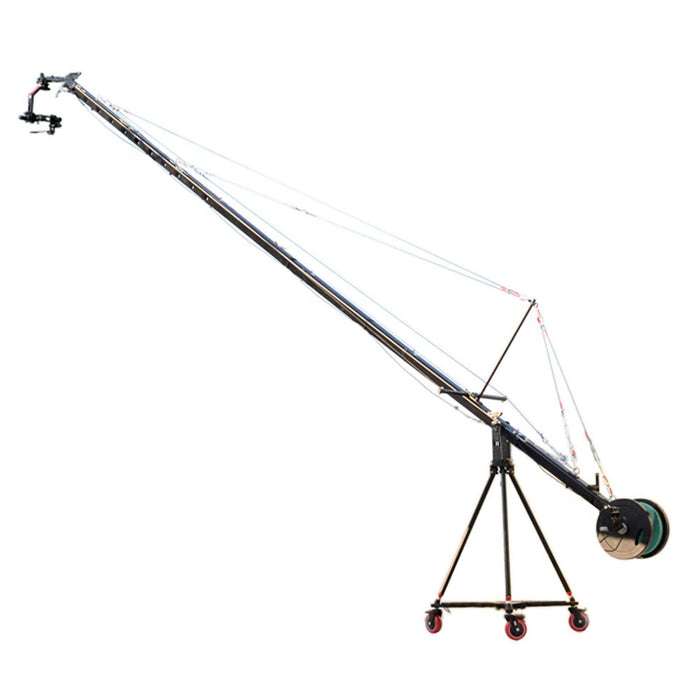

Proaim 24ft/7mtr Wing Camera Crane Film Production Package

Proaim 24ft/7mtr Wing Camera Crane Film Production Package

(Proaim Wave-5P 24ft/7mtr Jib with W5-STD stand, Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head, D-37 Tripod Dolly)

Sold out
€3.420,00 - €3.420,00
€3.420,00
€3.420,00 - €3.420,00
€3.420,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : P-W5P-WING

Proaim 24ft/7mtr Wing Camera Crane Film Production Package

01.

Creative & Professional Shooting Solution

Proaim unveils its Wing Camera Crane Film Production Package, driven with technicalities for modern video shooting. The crane jib uses triangular aluminum tubing for lightweight design and yet maintains the strength and rigidity. The arm connecting bars securely fits into another one with top screw that guarantees its strength and reliability. Included with the Heavy duty long lasting tripod stand and D-37 camera dolly to add dynamic moving shots in your videos. Moreover our Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head makes it a right choice for all filmmakers. Whether you are a seasoned pro or just a passionate beginner, you’ll get breath- taking footage every time with your vision.

Proaim 24ft/7mtr Wing Camera Crane Film Production Package
Proaim 24ft/7mtr Wing Camera Crane Film Production Package

02.

Well Designed Arm Sections

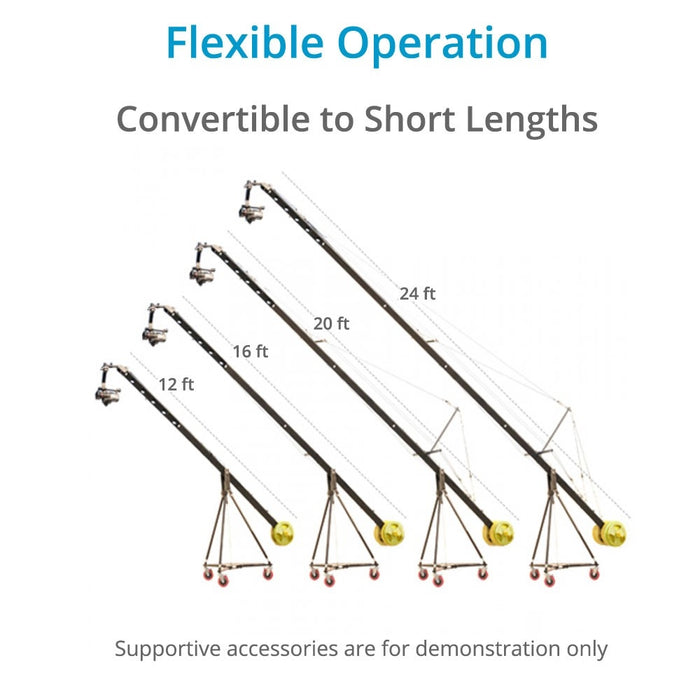

This High Grade Aluminum constructed camera crane jib arm is expandable from 4ft (one section) to 24ft/7mtr (six sections) in 4ft increments. As a quality constructed reinforced movie camera crane, it should last a lifetime.
- The Rear Control Center has provisions for mounting the Joystick Control box & Zoom Controller.
- Jib Arm connecting bars securely fits into another one with top screw that guarantees its double security, strength and reliability.

03.

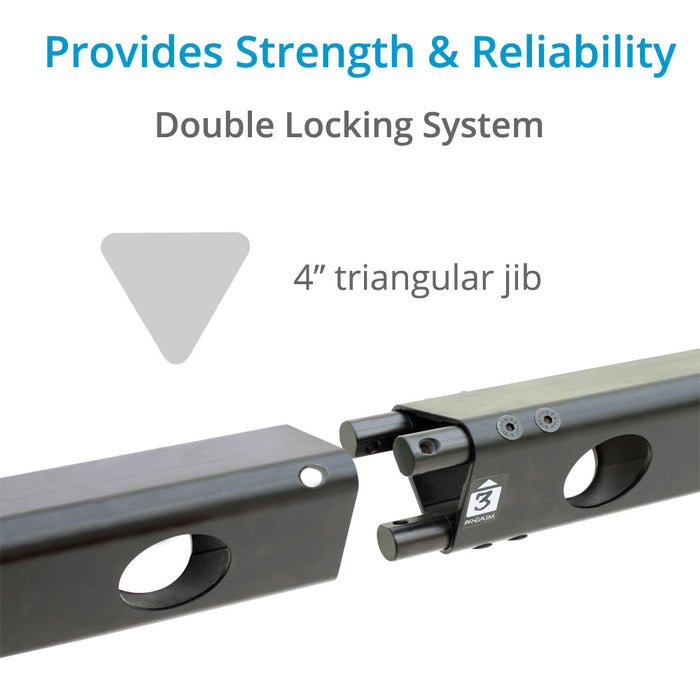

Arm Connecting Bars

Each section fits smoothly and securely into another one. For better protection, it is fastened by a screw at the top which ensures better safety of your movie camera crane. Double security features guarantees its strength and reliability.

Proaim 24ft/7mtr Wing Camera Crane Film Production Package
Proaim 24ft/7mtr Wing Camera Crane Film Production Package

04.

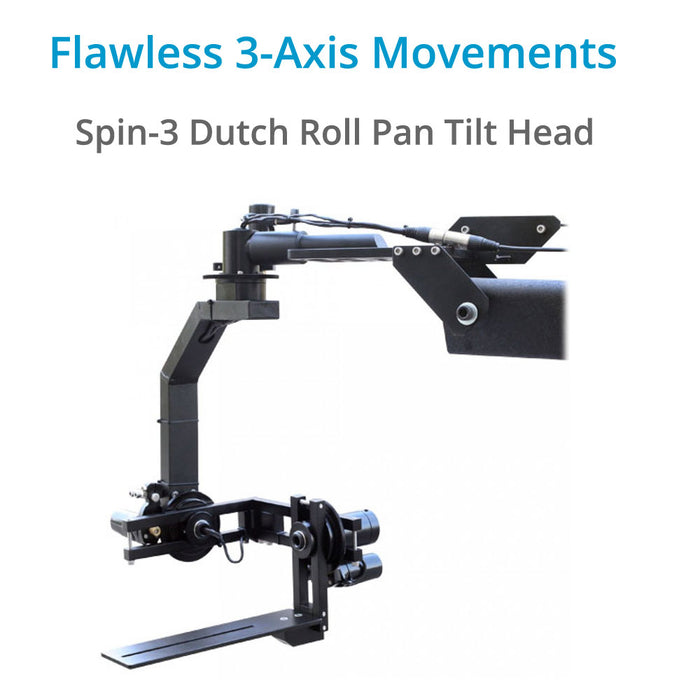

Proaim Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head

Controlled by a joystick remote, the pan, tilt & rolling movement of the head works on 12 volt power and easily accepts external 12VDC battery power through the included a 3 meter long 4pinXLR cable. This 3-Axis spin Roll motorized camera head is a solid built unit with precision and long life capability designed in. The frame is made of a durable high grade metal. In Pan Tilt mechanism, XLR cables are built in to the motor, gears on the head are solid quality and the pan tilt head is sheathed in plastic to protect the finish.

05.

Unique Head Mounting

Gets connected to most pan tilt in minutes, saving production time.

Proaim 24ft/7mtr Wing Camera Crane Film Production Package
Proaim 24ft/7mtr Wing Camera Crane Film Production Package

06.

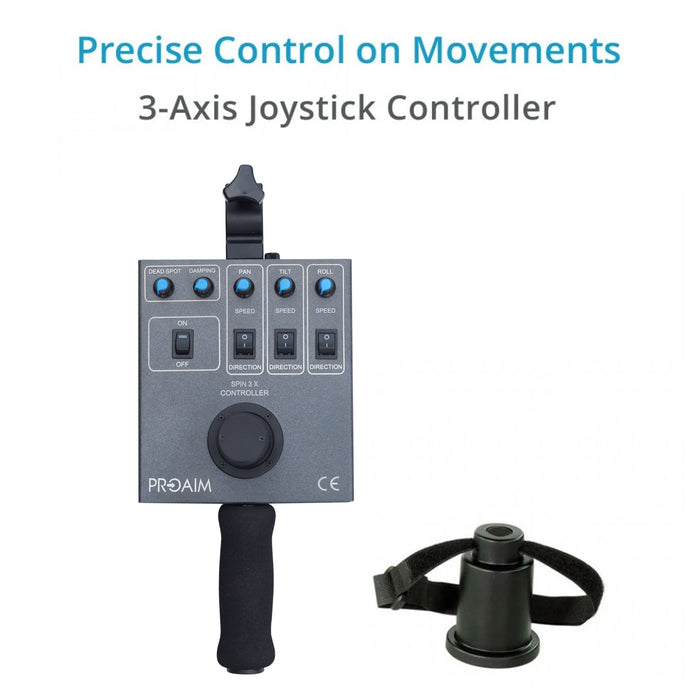

Pan Tilt Joystick Control System

The Joystick control system has proportional linear movement and comes with a 10-metre long cable and AC adapter.
The Dead spot in Joystick controls the unwanted distortions & the Damping function prevents the Head from sudden jerks enabling you to achieve smooth endings.
The Joystick is touch-sensitive:
Small movement – less speed & more movement – more speed.

07.

Stability Beyond Comparison

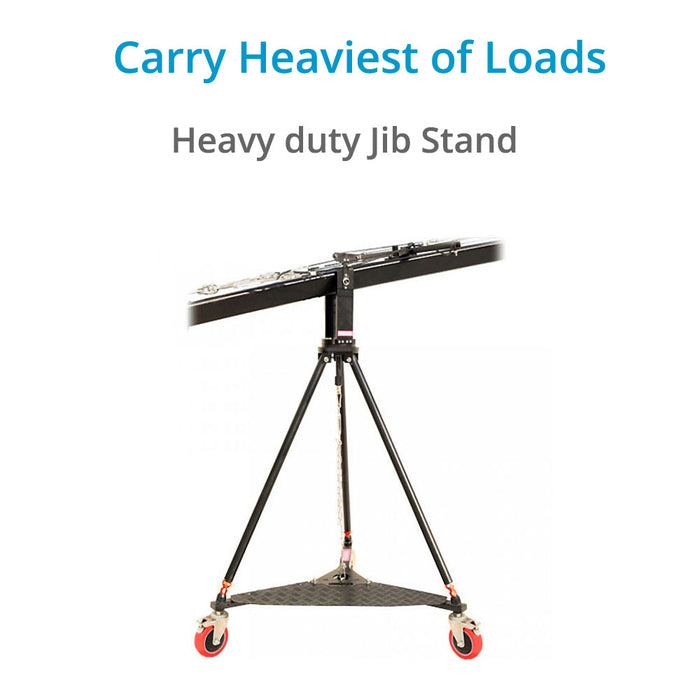

The Heavy Duty Tripod Stand (W5-STD) is a rock solid, robust and long lasting camera crane stand made of mild steel, with an incredible height range of 42". It has a strong hub assembly. The feet are solid with double locking knobs.

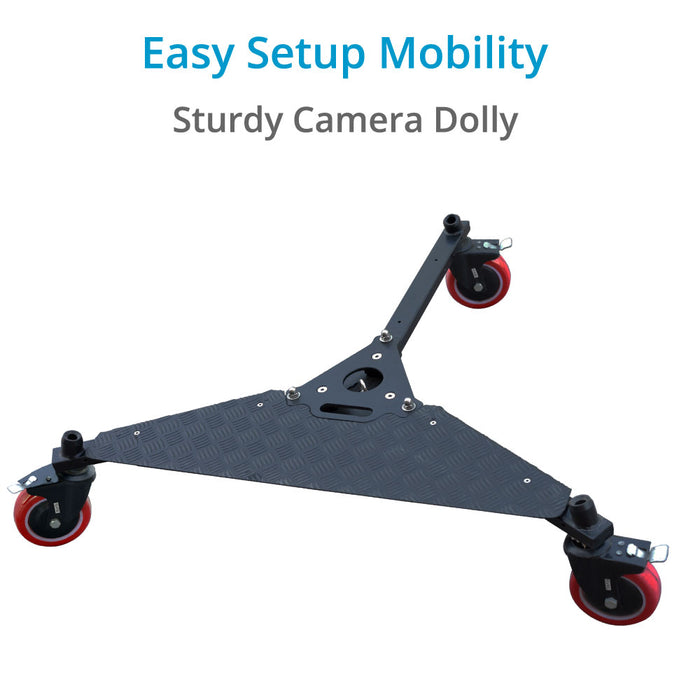

D-37 Pro Dolly is the most portable camera dolly in the market. It's a compact, lightweight and versatile pro dolly best suited for supporting all heavy duty stands.

Proaim 24ft/7mtr Wing Camera Crane Film Production Package

See how the Proaim 24ft/7mtr Wing Camera Crane Works

Jib Arm Specification

Weighing Capacity of Jib

  25kg

Jib Arm Material

  Aircraft Aluminium Construction

Jib Arm wall Thickness

  3mm

Camera Crane Length

  24ft/7mtr

Jib each Arm length

  4ft

Crane Pan Lock

  No

Crane Tilt Lock

  No

Finish

  Black Powder Coated

Jib Arm Break downs to

  6 Sections of 4ft each

Tripod Stand Specification

Weight of tripod stand

  11.5 Kg

Length of Tripod

  42''

Made from

  Mild Steel

Dia of tripod leg

  40mm

Weighing Capacity

  500kgs

Spin-3 Axis Pan Tilt Head
Specification

Pan Tilt Head Material

  High Grade Aluminium

Maximum Camera Package Load Capacity

  15kg/33lbs

Pan, Tilt, Roll Movement

  360 degrees

Speed

New Column Panning/Rotation Tilting/Rotation

  Minimum

  20 sec

  1 min 33 sec

  Maximum

  5 sec

  8 sec

Motors

  Three high torque DC motors 12V that rotates (pans), tilts & roll the head   360 degrees

Gears

  3- Silver Big Gears (Dia- 100mm)
  2- Brass Small Gears (Dia- 14mm),
  1- Brass Small Pan Gear (Dia-22mm)

Minimum height of head

  23.5 inches

Maximum height of head

  25 inches

AC Adapter input

  AC 100 - 240V ; output - DC 12V -2A

Cable Length

  10 meter

Cable Connector

  6-Pin XLR

Battery Cable

  3 Meter long

Camera Plate Size

  12x3 inches, camera mount slot – 8”

Weight of 3-Axis head

  5.7kg

Weight of Joystick box

  815grm

Box Dimensions

  73 X 49 X 21 cm

Joystick Controller Specification

Weight of tripod stand

  3-Axis

Connectors

  1x 4-Pin XLR male connectors
  6 Pin XLR

Pan Direction

  Yes

Tilt Direction

  Yes

In the Box

  24ft/7mtr Wave 5 Movie camera crane
  Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head (PT-SPIN-3)
  Tripod Stand (W5-STD)
  D-37 Floor Dolly

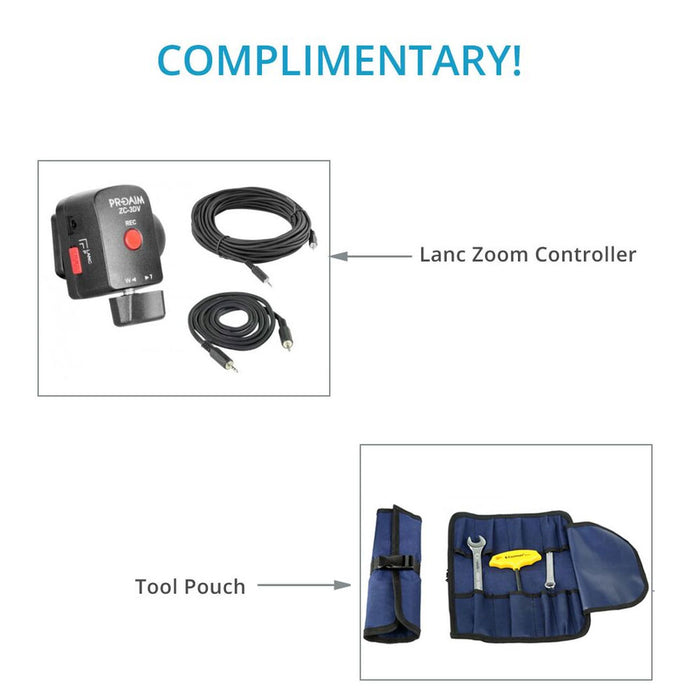

  FREE Tools and Tool Pouch/Wrap

User Manual

  Proaim 24ft/7mtr Wing Camera Crane Film Production Package

delivery

Guaranteed Fast Delivery
For all orders
customer service

Quick and Efficient
Customer service
easy returns

Easy Returns
Up to 30 days
warranty

1-Year Warranty
On All Products

Q&A

Ask a Question



  • Hi! We’re looking into buying this crane. Could you tell me where we can find the weights?

    We do not provide weights as part of our offerings. You can purchase them separately from a third-party seller. It's important to mention that these weights are standard gym equipment and are readily available in the local market.

  • Is the Panasonic camera model AG-HPX500P compatible with the Proaim 24ft/7mtr Wing Camera Crane Film Production Package?

    Indeed, the Panasonic camera AG-HPX500P is compatible with the Proaim 24ft/7mtr Wing Camera Crane Film Production Package.
