PROAIM 18ft Film Crane with Jib Stand

Supporting Cameras weighing upto 7.5kg / 16.5lb

€395,00
SKU : P-18-JS

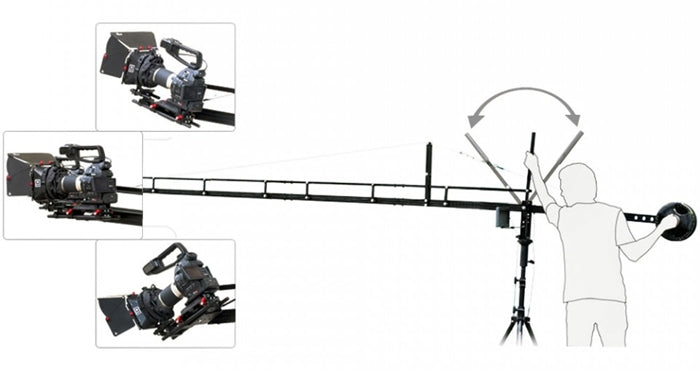

Proaim introduces its 18ft camera crane jib, a perfect companion for your filming projects and adventures. It is specially designed Camera Jib for professionals to extend their reach and to discover every unexplored angle. Enhance the video production value with Smooth horizontal / 360 degree revolving shots while still keeping the crowd and crew safe.


18ft-jib-w-tripod-stand

Special Features- Can be used as 14ft and 10ft Jib


This Hi-Quality Aluminium build camera crane gives you the freedom to take the camera jib to the places you would have only dreamt of doing in the past. You won't miss any chance to catch any critical moment with our easily stable hi-angle camera jib. Its robust construction makes it lightweight and compact which is hard to compete.


proaim-18ft-jib-crane-with-senior-pan-tilt-head

"WHAT YOU SEE IS WHAT YOU GET"
Exclusive of Weights



Ribbed Sections for High Strength

Ribbed sections make the jib arm stronger & durable. It supports cameras up to 8kg/17.6lb. The dual lock mechanism provides safety and security to the joint ribbed sections.

ribbed sections



High Capacity Camera Base Platform

High-capacity Camera Base platform is built with exact standards for a remarkably stable point. It allows direct camera mounting on jib. Superior design set this base platform apart from others.

base plate



Central Fork with Thrust Roller Bearings

The fork provides you with maximum stability, smooth movements, up & down jerk free action shots as well as left & right sleek style shots. Its bearings provide a high degree of stiffness within a minimum axial space. These bearings enable to house heavy axial loads and shock loads.

Fork



Locking Pin for Stable/Moving Shots

High strength SS locking pin is used at the pivot point of the jib arm, and is connected properly to prevent from ever being lost.
- The control handle can be unlocked by releasing the locking pin to get moving shots.
- You can achieve fixed camera angles when controlling handle is pin locked.

cable & coupling



LCD Monitor Mounting Arm

The LCD Monitor arm is designed for mounting small LCD monitors to the Jib. It allows you to position the monitor in a variety of places on the Jib or Crane (Front, Back, High or Low).

lcd monitor mounting



Cables & Couplings

Our modular cable system boosts camera crane stability and rigidity. The superior-quality cable tensioning system keeps the 18ft camera crane stretched, rock solid and easy to control.

cable & coupling



Heavy Duty Jib Stand

Cinema Crane

The Heavy duty stand is constructed to carry heaviest of loads with an ease. The Sturdy base ensures strong connection between the crane and stand, extra solid knobs for secure locking. The high strength stand acts as a supporter for all time stable shots.


Convertible to Short Lengths

Studio jib arm


Multi Angle Shots

jib crane

The camera base allows direct mounting of camera.
The Handle Bar allows easy tilts for multi- dimensional shots.



Quick Pan Tilt Connectivity

professional film crane

The Rock Solid jib is compatible with wider variety of modern pan tilts that result in multi angle shots.
The jib gets connected in minutes thereby saving production time.



Mounting 3-Axis Gimbals is Possible!

Flycam Quick Release Mount
for Ronin/M/MX/R2 & MōVI (M5/M10/M15) (Optional)




IMAGE GALLERY


18ft-jib-(big)

Gets you sweeping crane shot that captures your audience's attention

18ft-jib-(big)

The Supportive accessories are for demonstration purpose only.



 18FT RIBBED JIB CRANE SPECIFICATIONS
  Weighing Capacity maximum 8kg (17.6 lbs) (15lbs)
 Material Used CNC made Aluminum Powder Coated
 Jib Arm Shape Rectangle
 Jib Arm Break downs into 5 Parts
 Variable shooting lengths 18ft, 14ft, 12ft
  Camera Mount Bolt ¼”-20 and 3/8”-16
 Length of Jib sections 3. 5ft each
 Camera Mount Bolt ¼”-20 and 3/8”-16
 Variable shooting lengths 12ft , 9ft
 Jib Section Jointers Silver Aluminium
 Bearing at Center Fork Pan Thrust bearing with washer made of stainless steel
 Camera Tilt Angles Upto 270 degree
 Locking Pin Stainless steel locking pin for stable or tilt camera angles
 Pan Lock (For Jib) No
 Tilt Lock (For Jib) No
 Height Range from ground level 19 ft. when stand height adjusted at 5ft
 Length from tripod to Camera Mount 13’ 6’’
 Total jib arm length 17’
 Camera Mount plate Rectangle( 10.5cm X 9cm )
 Camera Platform Levelling By stress cable: Stress Cable made of metal with adjusting turn buckle hook
 Weight Holder Rod Made of MS Nickel chrome,
Length : 355mm
Dia : 25mm
 Weight Closures 2pc. Made of MS Nickel chrome
 Horizontal Movement Yes
 Vertical Movement Yes
 Horizontal/Vertical Movement Lock No
  LCD Mount Provision Yes
  Weight 26.6 kg

 BALANCING CHART
  Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart : The jib has a varying weight ratio depending on the length you have chosen.
The 18 jib arm itself balances at about 25kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 4and you will know how much weight to buy.
14ft arm balances at about 11kg- Multiply the weight, of the additional items you will put on the end of the arm, by 2 & add the weights accordingly.
12ft arm balances at about 4kg - Multiply the weight, of the additional items you will put on the end of arm, by 2 & add the weights accordingly.




JIB STAND

-  Made of Aluminum Black anodized
-  Base spread - 32"- 48"
-  Height adjustment - 44"- 80"
-  Completely collapsed height - 46"
-  Outer Dia of top part of Stand - 50mm
-  Makes the camera jib arm stable & solid as a rock
-  Safety Pin for Secure Pole
-  Weight capacity of the stand is 200lbs (90kg)

  • Proaim 18ft Professional Camera Crane
  • Jib Stand
  • Storage Bag
