Proaim 18ft Camera Crane with Sr. Pan and Tilt Head & Tripod Stand

€1.406,00
SKU : P-18-JS-SRPP

Capture smooth, dynamic sweeping pans and camera rise with Proaim 18ft Camera crane production package. Now you can easily achieve Hollywood production style motion that you have ever hoped and imagine for. The Aluminum constructed ribbed section jib crane assembles quickly without tools to benefit on-location productions. At the end of your shoot, the dslr jib breaks down into two 5 long sections for easier travel and storage. Stainless steel support cables are included for maximum support of heavy loads with better stability.


camera jib with stand

There’s lot more that goes into this production package, a robust Pan Tilt Head provided with joystick control to capture unique angles, zoom controller kit for precisely controlled zoom outs & zoom-ins to get professional looking footage.

Proaim 18ft Camera Crane  with Sr. Pan and Tilt Head & Tripod Stand

"WHAT YOU SEE IS WHAT YOU GET"

proaim logo


FEATURES

- Perfect sized jib crane for any demanding angle and tracking subjects in motion.
- Tilting movements can be achieved with control handle
- Double arm jib section for maximum stability and minimum wobble.
- Smooth effortless motions on three axis with built in roller thrust bearing system.
- Uses standard household style exercise weights (1 inch hole)
- Breaks down into five easily transported sections.
- 2 axis motorized Pan Tilt Head with high torque motors.
- 360 degree endless tilting and panning movement with reversal points.
- Consistent run speed even at slowest setting
- Stable, Non slip feet Tripod stand.
- Portable and easy to carry.
- 100% Satisfaction Guarantee.

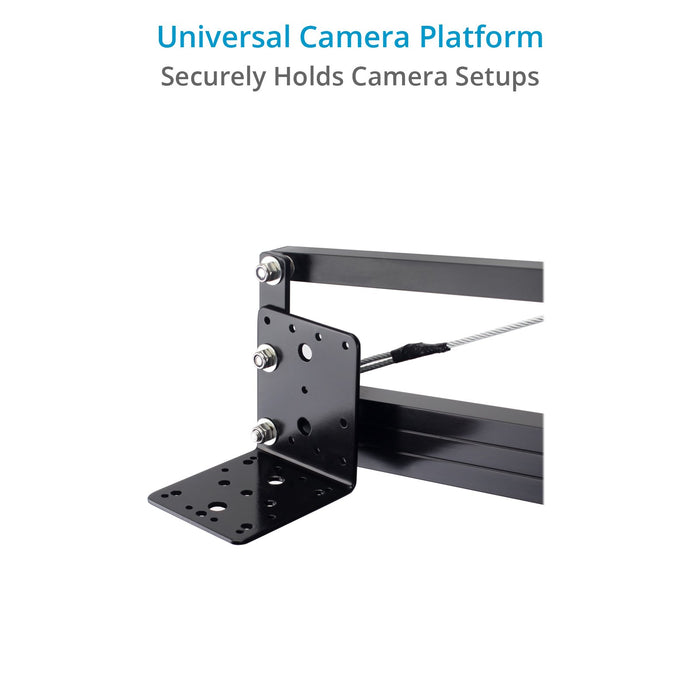

HIGH CAPACITY CAMERA BASE PLATFORM
Our ultra-smooth, high-capacity Camera Base platform is built to exacting standards with beefy construction for a remarkably stable point. Superior design and the finest components set this base platform apart from those used in other video crane systems. Tilting movements of it are performed with the controlling handle.

camera jib with stand

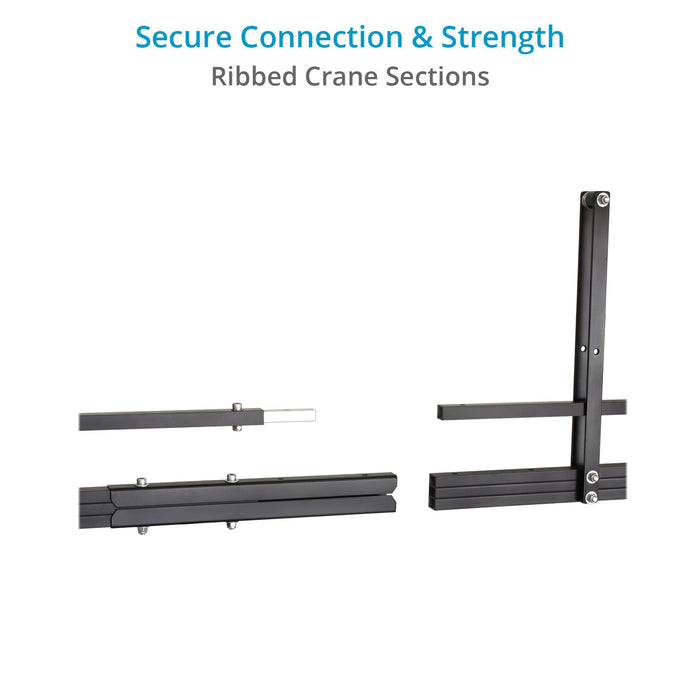

RIBBED SECTION CAMERA CRANE ARM BODY FOR HIGH STRENGTH
5 Ribbed sections for superior strength support cameras up to 15lbs without Head and 10lbs when using with head. Camera Crane sections made from stiff, lightweight tubing are precision machined and powder coated before assembly and quality inspection. The heavily reinforced, cable-tensioned design of the Proaim 18ft camera crane allows it to reach farther and higher without any sacrifice in stability or performance.

Jib Dolly

MACHINED INTERSECTING JOINTS FOR QUICK AND SECURE ASSEMBLY
Intersection joint assembly allows for quick and secure connection. A solid stainless steel thumbscrew assures a tight and secure fit from above and below the camera crane arm.

camera crane

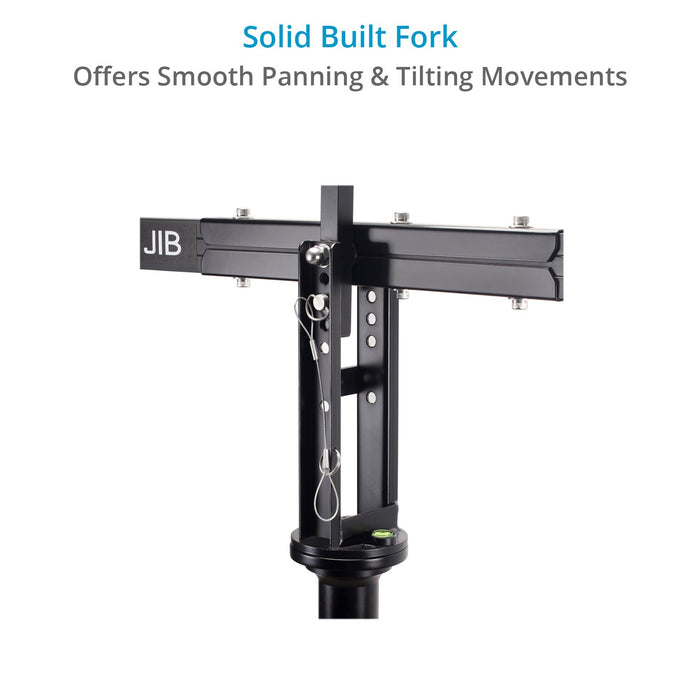

CENTRAL FORK WITH THRUST ROLLER BEARINGS TO HOUSE
HEAVY AXIAL LOADS AND SHOCK LOADS

The fork provide you a maximum stability, smooth movements , up and down jerk free action shots as well as left and right sleek style shots. Thrust needle roller bearings are fitted with a form-stable cage to reliably guide and keep many needle rollers. These bearings provide a high degree of stiffness within a minimum axial space. These bearings enable to house heavy axial loads and shock loads.

camera jib boom

LOCKING PINS FOR STABLE OR MOVING SHOTS
High strength SS locking pin is used at the pivot point, and is attached by lanyard to prevent them from ever being lost. - The control handle can be unlocked by releasing the locking pin to get moving shots. - You can achieve fixed camera angles when controlling handle is pin locked.

Jib Dolly

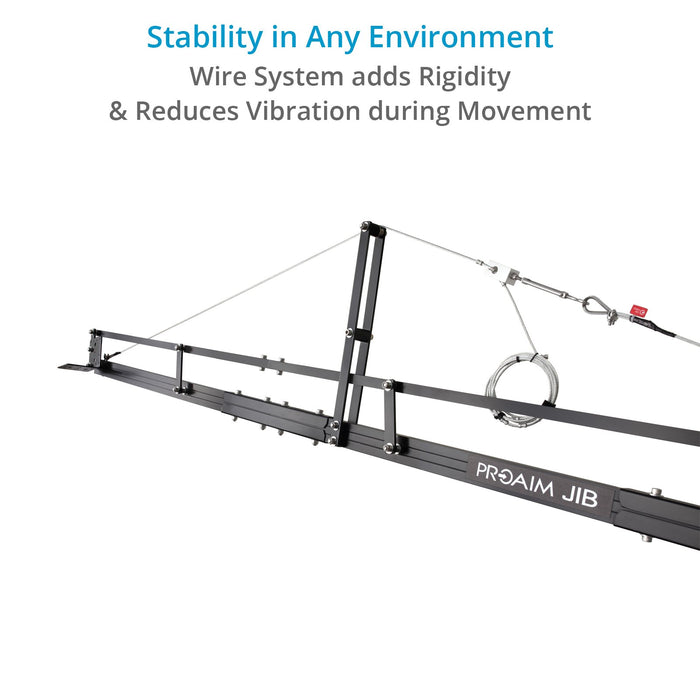

CABLES AND COUPLINGS
Our modular cable system boosts camera crane stability and rigidity. The superior-quality cable tensioning system keeps the 14ft camera crane taut, rock solid and easy to control. The smooth-coated, corrosion resistant cables are easy to handle and will last a lifetime.

dslr pan tilt

LCD MOUNTING PROVISION
The LCD Mounting Arm for LCD Monitor comes with this camera crane.

Jib Dolly

WEIGHT - CLOSERS (INCLUDED)
Stronger Hi-tensile weight closers help to achieve perfect balance.

camera jib with stand

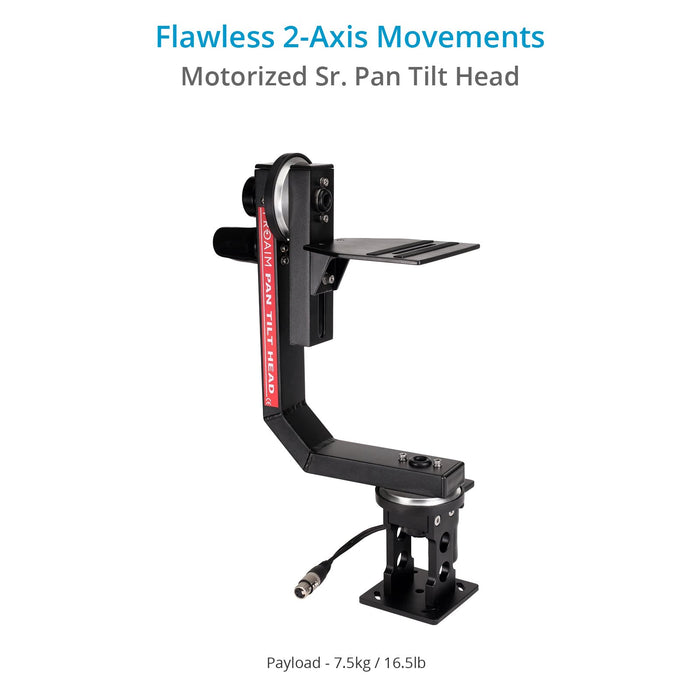

PROAIM SR. PAN TILT HEAD

Designed for DV, HDV and broadcast cameras weighing up to 7.5kg / 16.5lbs or less. Our Proaim Senior Pan Tilt head offers 360-degree endless panning and tilting with reversal points.
- Runs on 12v DC power produced by the included A/C adapter or also accepts external 12V DC battery power through the included 3mtr long 4 pin XLR cable for outdoor shooting.
- You receive the Pan-Tilt Head with assembled wiring for Top and Bottom Motor.
- To install Power out to head (4 pin connector) and 12 volt DC power (4 pin XLR) in the rear of joystick box.


camera jib with stand

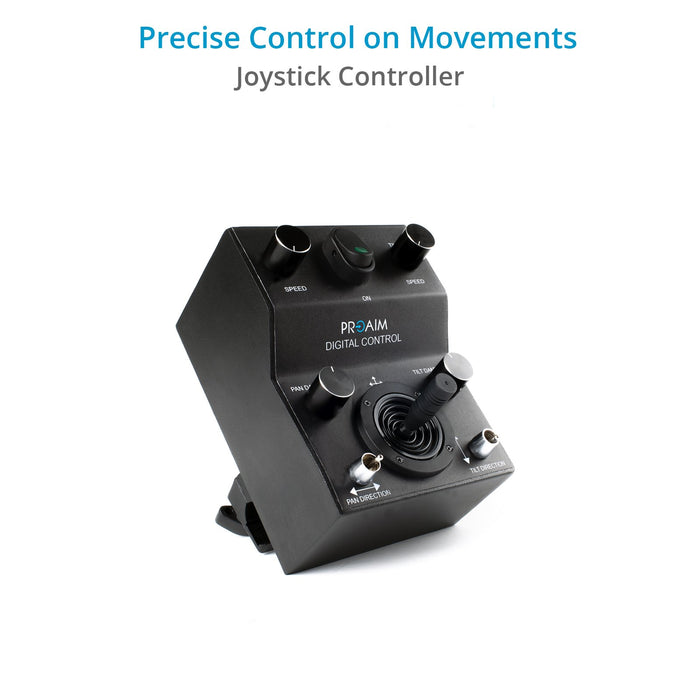

JOYSTICK CONTROL

- The Joystick control system includes a 7.5 mt long operating cable and AC adapter.
- Operational from a flat surface in handheld mode or when attached to the bottom of the jib arm.


camera jib

Smooth, accurate, proportional joystick control for outstanding footages

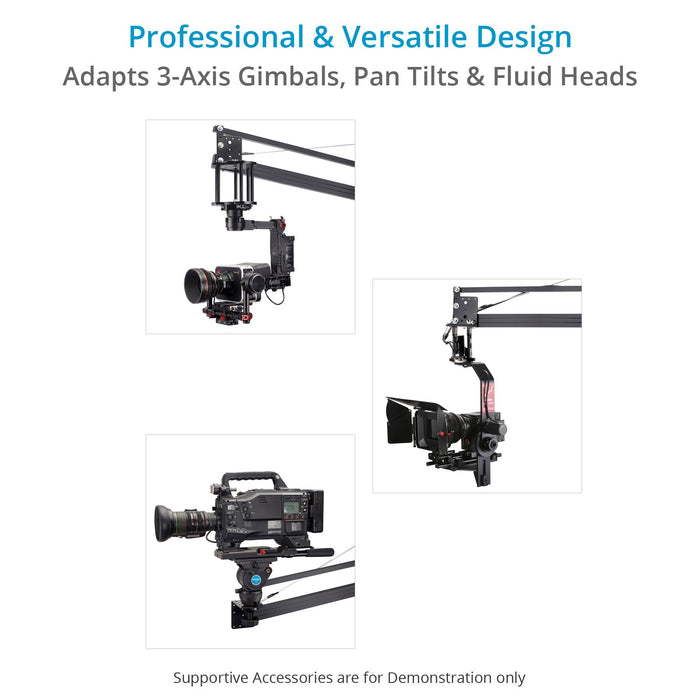

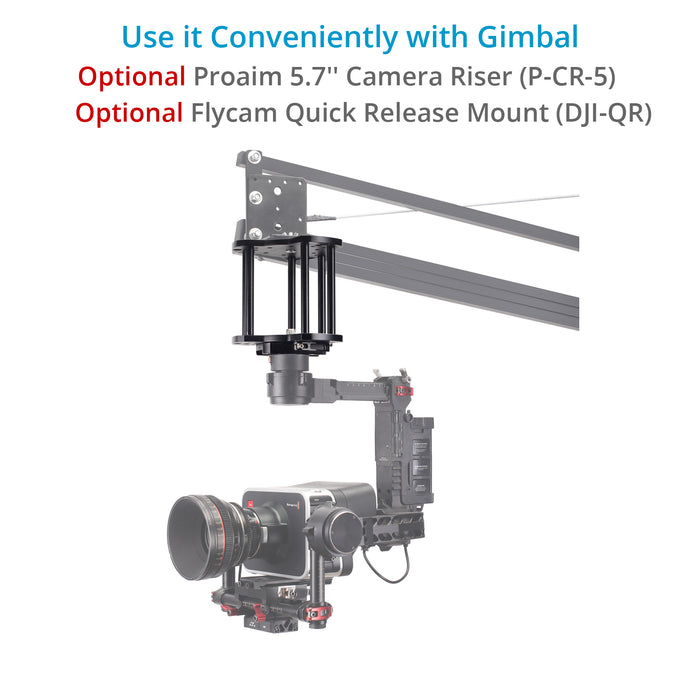

Mounting 3-Axis Gimbals is Possible!

Flycam Quick Release Mount
for Ronin/M/MX/R2 & MōVI (M5/M10/M15) (Optional)




IMAGE GALLERY


video crane

Enables panning and tilting the camera remotely

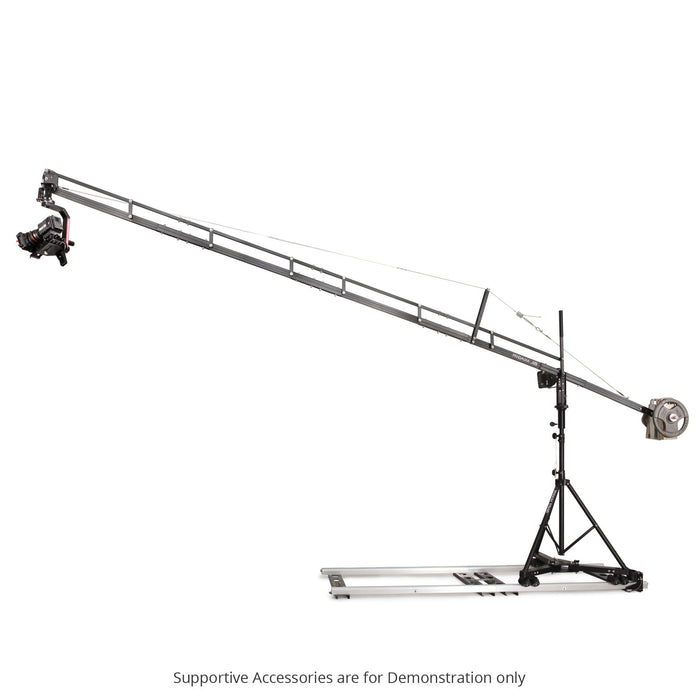

The Supportive accessories are for demonstration purpose only.

 18FT RIBBED JIB CRANE SPECIFICATIONS
  Weighing Capacity 7.5kg / 16.5lbs
 Material Used CNC made Aluminum Powder Coated

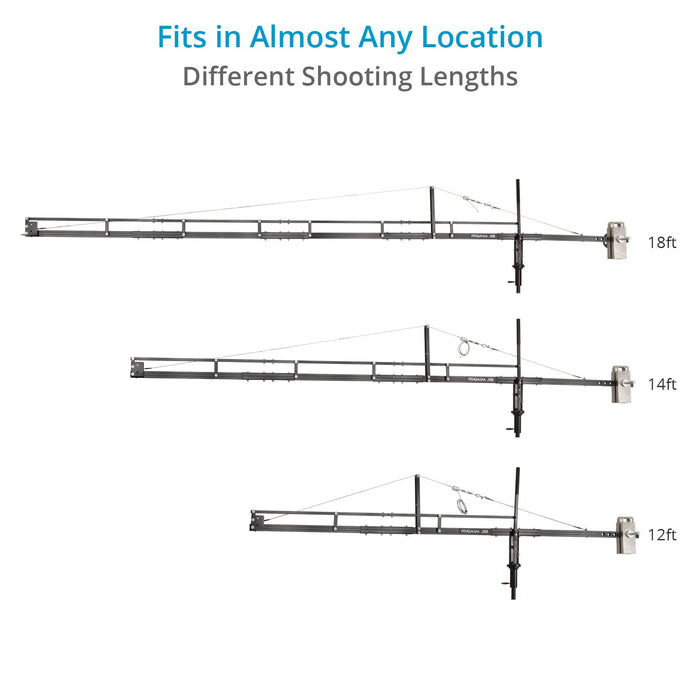

 Variable shooting lengths 18ft, 14ft, 12ft..
 Jib Arm Shape Rectangle
 Jib Arm Break downs into 5 Sections
 Length of Jib sections 3. 5ft each
 Jib Section Jointers Silver Aluminium
 Bearing at Center Fork Pan Thrust bearing with washer made of stainless steel
 Camera Tilt Angles Upto 180 degree
 Locking Pin Stainless steel locking pin for stable or tilt camera angles
 Pan Lock (For Jib) No
 Tilt Lock (For Jib) No
 Height Range from ground level 18ft (when tripod adjusted at 5.5ft height)
 Length from tripod to Camera Mount 13.8ft
 Camera Mount plate Square plate with ¼” thread
 Camera Platform Levelling By stress cable
Stress Cable made of metal with adjusting Steel hook
 Weight Holder Rod Made of MS Nickel chrome,
Length : 355mm
Dia : 25mm
  Weight Closures 2pc. Made of MS Nickel chrome
 Horizontal Movement Yes
  Vertical Movement Yes
  Horizontal/Vertical movement Lock No
  LCD Mount Provision Yes
  Weight 26.6 kg

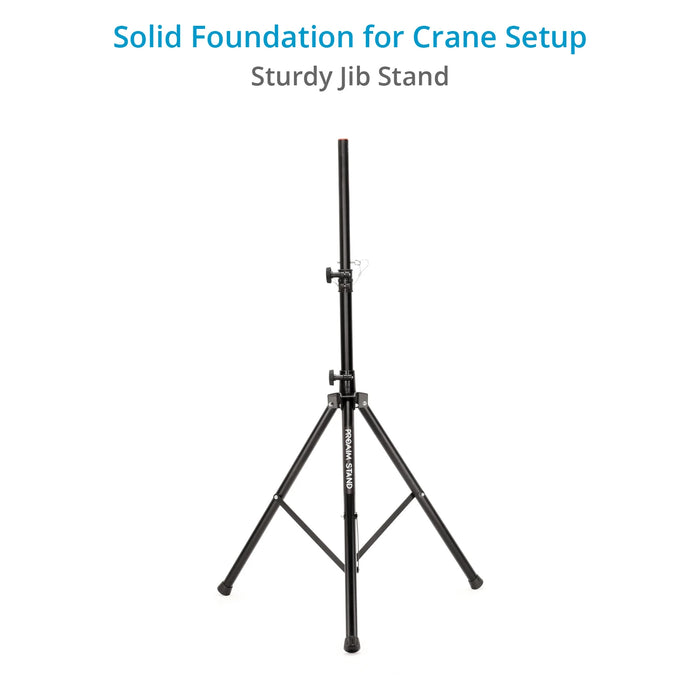

CAMERA JIB STAND

-  Made of Aluminum Black anodized
-   Base spread - 32"- 48"
-  Height adjustment - 44"- 80"
-  Completely collapsed height - 46"
-  Makes the camera jib arm stable & solid as a rock
-  Safety Pin for Secure Pole
-  Weight capacity of the stand is 200lbs (90kg)


  SENIOR PAN TILT HEAD - SPECIFICATIONS
 Pan Tilt Head Material High Grade Aluminium
  Maximum Camera Package Load Capacity 7.5kg (16.5lbs)
 Pan movement 360 degrees
 Tilt movement 360 degrees
 Speed Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
 Motors Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees
 Gears 2- Silver Big Gears (Dia- 89mm),
2- Brass Small Gears (Dia- 14mm)
  Minimum height of head 18.5 inches
 Maximum height of head 26 inches
 AC Adapter input AC 100 - 240V ; output - DC 12V -2A
 Cable Length 7.5 meter
 Cable Connector 4-Pin XLR
 Battery Cable 3 Meter long
 Weight of Pantilt head 7.2kg (15.8lbs)
  Box Dimensions 50 X 35 X 19 cm
  • 18ft Jib Crane
  • LCD Mounting Arm
  • Jib Stand
  • Sr. Pan Tilt Head with Joystic box
  • 12V Power Pack

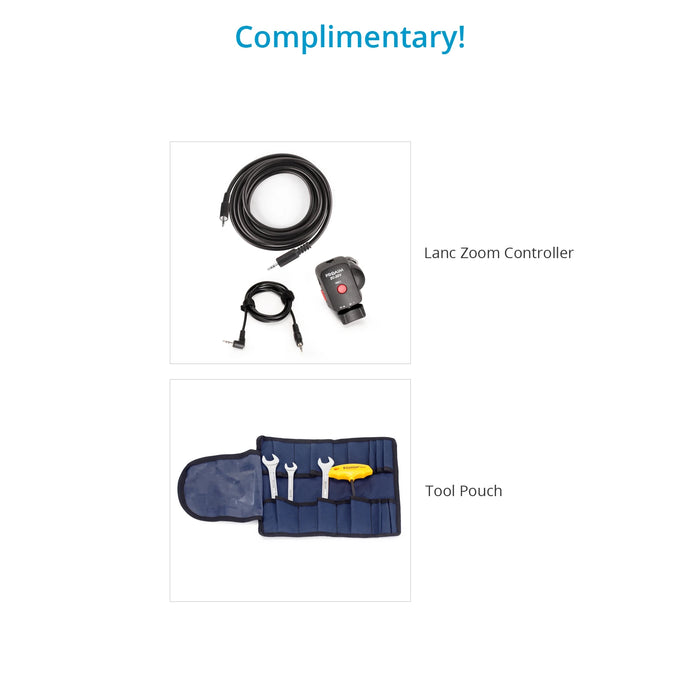

  • FREE Proaim Lanc Zoom Controller (P-ZC-3DV)

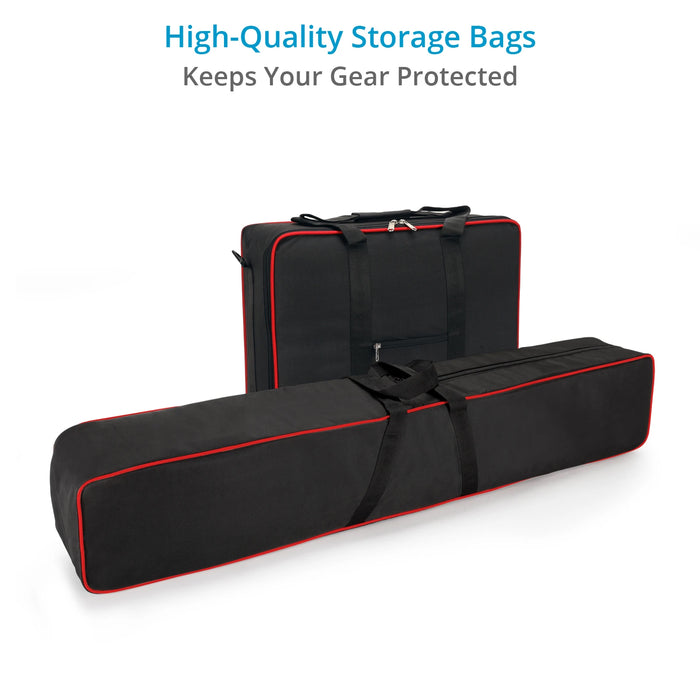

  • FREE Storage Bag
