Proaim 12ft Camera Jib Arm with Jib Stand & Jr. Pan Tilt Head

€1.126,00
SKU : P-12-JS-JRPP

Proaim comes forward with its Hi-Strength and versatile 12ft camera jib crane package for your film productions. Its robust compact modular design offers smooth camera movements. The motorized pan tilt head ensures 360 degree panning and tilting camera shots.



Unique Swivel System allows smooth slides & avoids disturbing swings during movement. Exclusively designed to fit in tight spaces or be raised up for taller ceilings, getting you amazing overhead shots. There is lot more in the camera jib package, a rugged tripod stand that acts as a supporter for your steady shots and a durable pan-tilt head to capture every creative angle.


"WHAT YOU SEE IS WHAT YOU GET"


FEATURES

- Solid CNC machined Aluminum constructed camera jib for high durability.
- 3 section ribbed Camera boom for additional strength

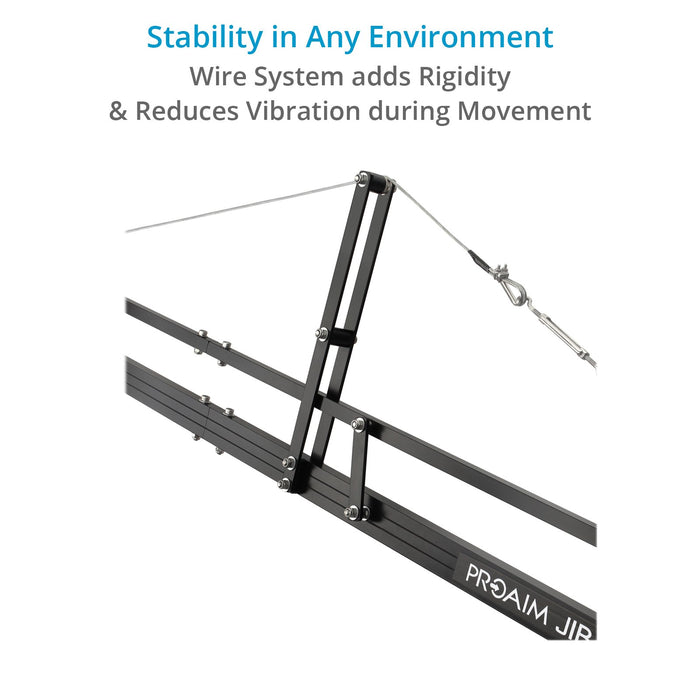

- Fully adjustable metal wire system for superior stability
- Tilting movements can be achieved with the control handle
- Uses home style exercise weights with a one inch mounting hole
- 2 axis motorized Head with high torque motors.
- Consistent run speed even at slowest setting
- Stable, Non slip feet Tripod stand.
- Portable and easy to carry.

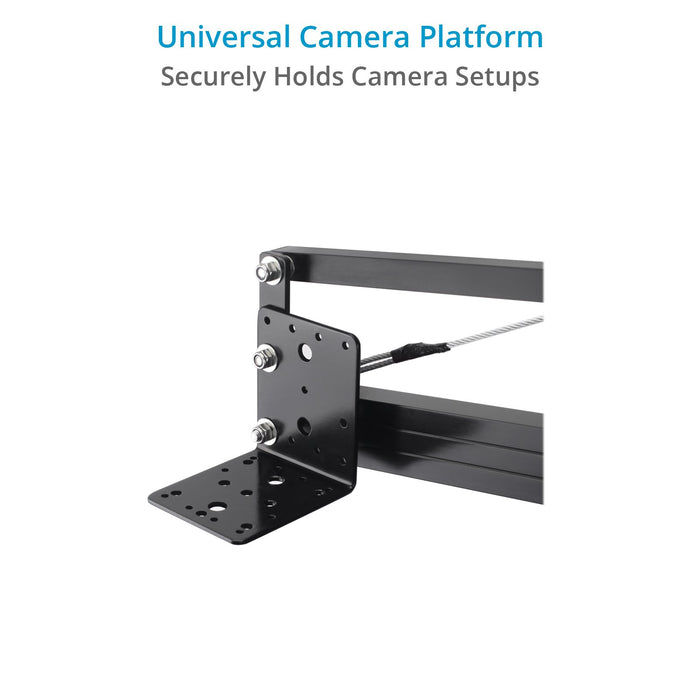

HIGH CAPACITY CAMERA BASE PLATFORM
High-capacity Camera Base platform is built to exacting standards for a remarkably stable point. It allows direct camera mounting on jib. Superior design set this base platform apart from others.

jib arm

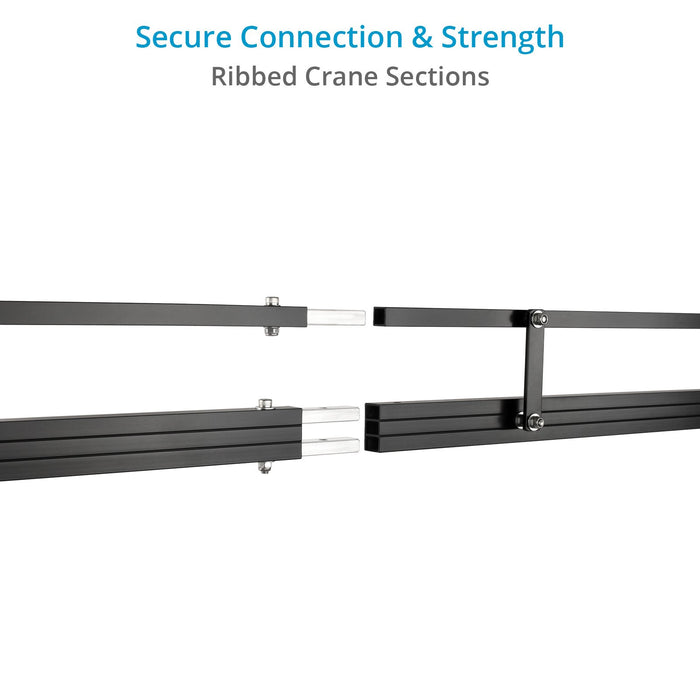

RIBBED SECTION JIB ARM OR VIDEO CRANE BODY FOR HIGH STRENGTH
Ribbed sections makes the jib arm stronger & durable. It supports cameras up to 15lbs without pan tilt Head and 10lbs when using with pan tilt head. The cable-tensioned design of the Proaim 12ft camera crane allows it to reach farther and higher while maintaining stability.

jib arm

MACHINED INTERSECTING JOINTS FOR QUICK AND SECURE ASSEMBLY
Intersection joint assembly allows for quick and secure connection. A solid stainless steel thumbscrew assures a tight and secure fit from above and below the arm.

jib arm

LOCKING PINS FOR STABLE OR MOVING SHOTS
High strength SS locking pin is used at the pivot point, and is connected properly to prevent from ever being lost.
- The control handle can be unlocked by releasing the locking pin to get moving shots.
- You can achieve fixed camera angles when controlling handle is pin locked.

jib arm

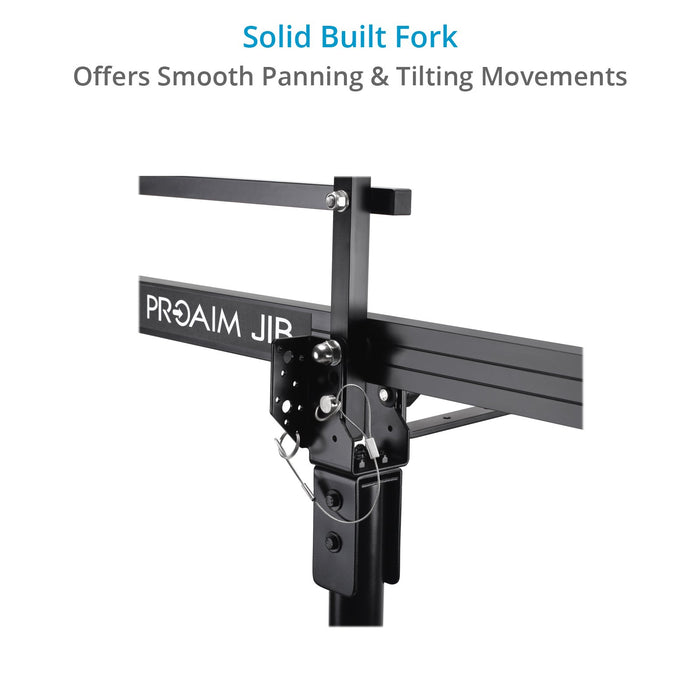

CENTRAL FORK TO HOUSE HEAVY AXIAL LOADS AND SHOCK LOADS
The fork provides you a maximum stability, smooth movements & jerk free shots.

Proaim_14ft_Jib

LCD MOUNTING PROVISION
The LCD Mounting Arm for LCD Monitor comes with this camera boom.

jib arm

WEIGHT-CLOSERS (INCLUDED)
Stronger Hi-tensile weight closers help to achieve perfect balance.

jib arm

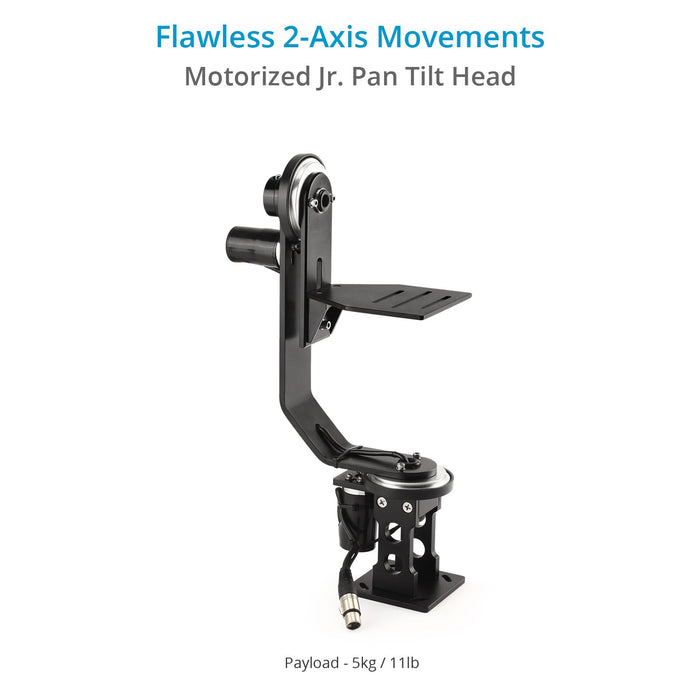

JR. PAN AND TILT HEAD

Uniquely designed for DV, HDV and broadcast cameras weighing upto 6kg /13.2lbs or less. Our Motorized Proaim Junior Pan-Tilt head offers 360 degree endless panning and tilting movements with reversal points.
- Runs on 12V DC power produced by the included A/C adapter or also accepts external 12V DC battery power through the included 3mtr long 4 pin XLR cable for outdoor shooting.
- You receive the Pan-Tilt Head with assembled wiring for Top and Bottom Motor.
- To install Power out to head (4 pin connector) and 12 volt DC power (4 pin XLR) in rear of joystick box.

jib arm

Constructed with top notch reliable materials

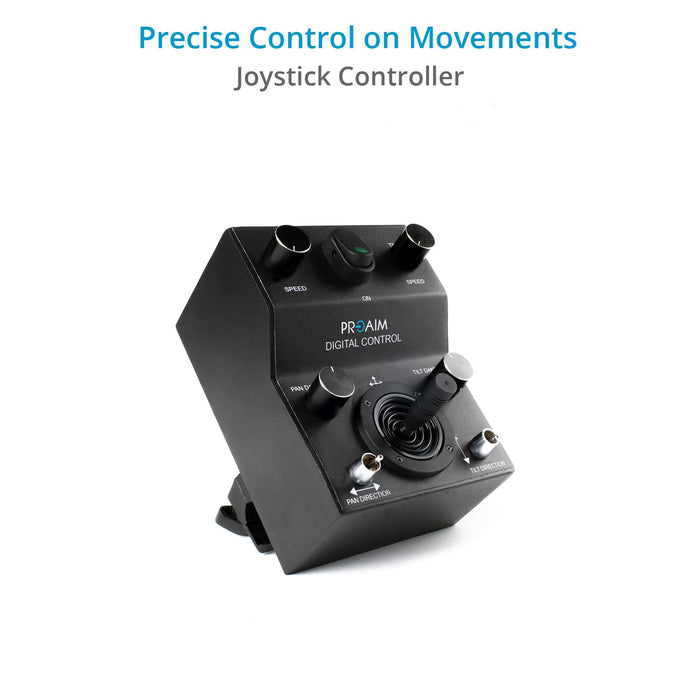

PAN TILT JOYSTICK CONTROL

- The Proaim™ Pan-Tilt Head comes with a remote Joystick control system, 23 feet Long Cable and AC Adapter.
- You may run the Joystick from a flat surface like tabletop or attach to the boom arm of Jib.
- For Outdoor shooting, you can use 1.5mtr. long 3pin XLR cable with a 12volt Brick or Car Battery.

dslr pan tilt head

Smooth, accurate, proportional joystick control for outstanding footages


Mounting 3-Axis Gimbals is Possible!

Flycam Quick Release Mount
for Ronin/M/MX/R2 & MōVI (M5/M10/M15) (Optional)




IMAGE GALLERY


portable jib

Impeccable gear lets you play with variety of angles

The Supportive accessories are for demonstration purpose only.

SPECIFICATIONS
- Camera Jib Arm length - 12'
- Height range above ground 11'8 with tripod set at 5'
- Camera Jib weight 17 lbs
- Jib Stand weight 10 lbs
- All aluminum construction

  12FT RIBBED JIB CRANE SPECIFICATIONS
  Weighing Capacity 8 kg (17.6lbs)
 Material Used CNC made Aluminum Powder Coated
 Variable shooting length 9ft
 Camera Mount bolt ¼”-20 and 3/8”-16
 Jib Arm Shape Rectangle
 Jib Arm Break downs into 3 Parts
 Length of Jib sections 3. 5ft each
 Jib Section Jointers Silver Aluminium
 Camera Tilt Angles Upto 180 degree
 Locking Pin Stainless steel locking pin for stable or tilt camera angles
  Pan Lock (For Jib) No
  Tilt Lock (For Jib) No
 Height Range from ground level 12ft when stand height adjusted at 5.5ft
 Camera Mount plate Rectangle( 10.5cm X 9cm )
 Camera Platform Levelling By stress cable Stress Cable made of metal with adjusting Steel hook
 Weight Holder Rod Made of MS Nickel chrome,
Length : 355mm
Dia : 25mm
 Weight Closures 2pc. Made of MS Nickel chrome
 Horizontal Movement No
 Vertical Movement Yes
  Vertical Movement Lock No
  LCD Mount Provision Yes
  Weight 14 kg

 BALANCING CHART
  Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart : The jib has a varying weight ratio depending on the length you have chosen.

The 12ft jib arm itself balances at about 4kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 2 and you will know how much weight to buy.

The 9ft jib arm itself balances at about 3kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 3 and you will know how much weight to buy.

Buy a few extras in case you add other accessories.

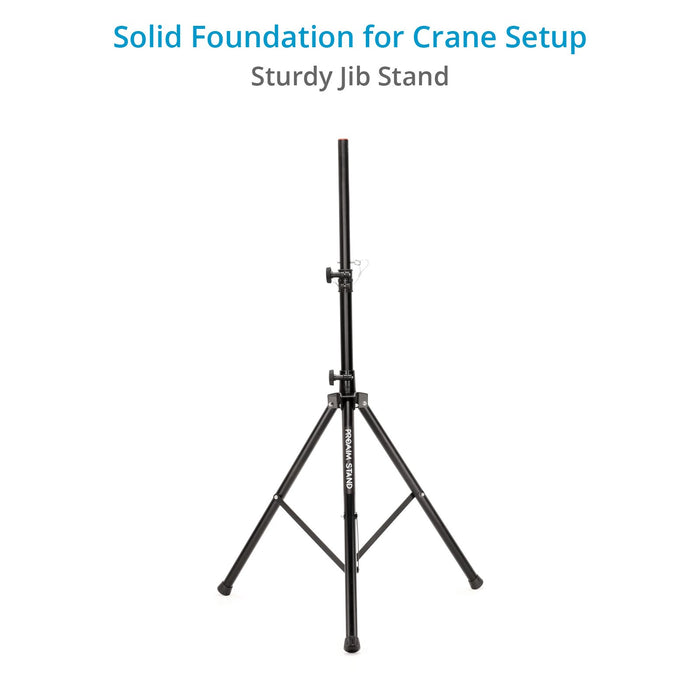

JIB STAND

-  Made of Aluminum Black anodized
-   Base spread - 32"- 48"
-  Height adjustment - 44"- 80"
-  Completely collapsed height - 46"
-  Outer Dia of top part of stand - 50mm
-  Safety Pin for Secure Pole
-  Weight capacity of the stand is 200lbs (90kg)


  PAN TILT HEAD - SPECIFICATIONS
 Pan Tilt Head Material High Grade Aluminium
  Maximum Camera Package Load Capacity 6kg (13.2lb)
 Pan movement 360 degrees
 Tilt movement 360 degrees
 Speed Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
 Motors Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees
 Gears 2- Brass Small Gears (Dia- 14mm),
2- Brass Small Pan Gear (Dia-22mm)
  Minimum height of head 18.5 inches
 Maximum height of head 22 inches
 AC Adapter input AC 100 - 240V ; output - DC 12V -2A
 Cable Length 7 meter
 Cable Connector 4-Pin XLR
 Battery Cable 3 Meter long
 Weight of Pantilt head 2.7kg (5.9lbs)
  Box Dimensions 52 X 34 X 18 cm
 JOYSTICK CONTROLLER
 Joystick Controller 2-Axis
 Connectors 2x 4-Pin XLR male connectors
 Pan/Tilt Direction Yes
 Upgraded with Damping knob
 Weight 800 grms

  • Proaim 12ft Camera Jib Arm
  • Jib Stand
  • Proaim Jr. Pan & Tilt Head with Joystick Controller
  • LCD Monitor Arm
  • FREE Proaim Lanc Zoom Controller (P-ZC-3DV)
  • Power Pack
  • Storage Bag
