Proaim 10' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible

For DSLR Video Camera Setups up to 25kg / 55lb

Sold out
Original price €2.157,00
Original price €2.157,00 - Original price €2.157,00
Original price €2.157,00
Current price €2.080,00
€2.080,00 - €2.080,00
Current price €2.080,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : P-WV-2PL-PP

Powerful. Simple. Affordable.

Best Travel Crane Package for Outdoor Extremes & Indoor Studio Shots!!

01.

PROFESSIONAL. STRONG. LIGHT. SMOOTH.

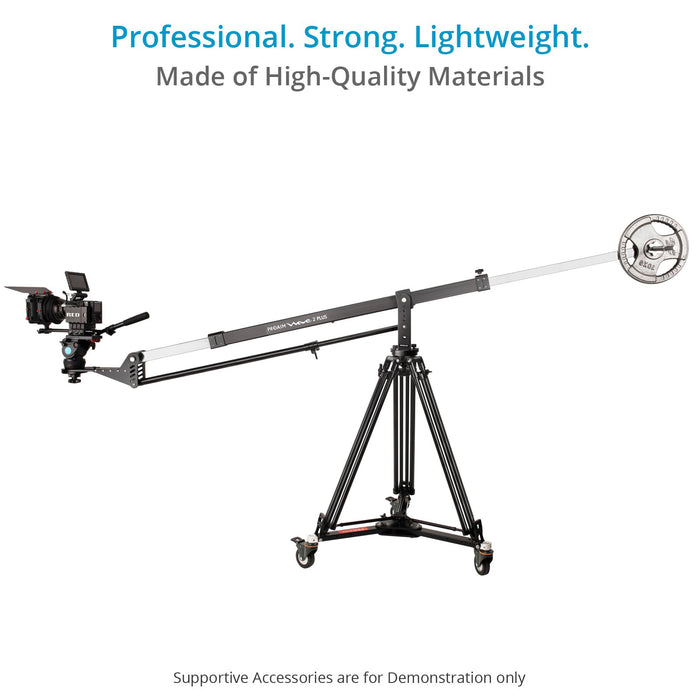

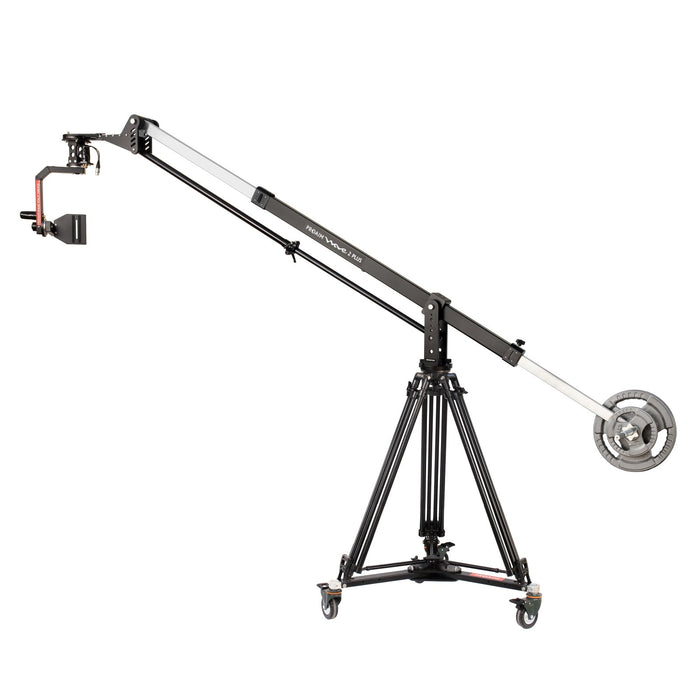

Proaim 10 ' Wave-2 Plus Video Jib Crane, specifically designed for indoor & outdoor video productions, is a portable filming solution for videographers and cinematographers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as telescopic design, versatile camera mount, sturdy assembly hub, panning knobs, making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 25kg / 55lb payload.

02.

EXPERTLY CRAFTED JIB

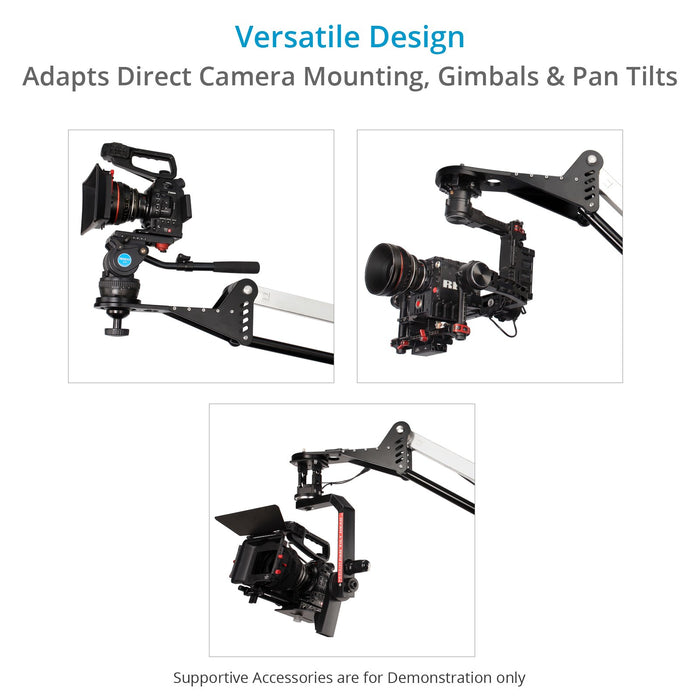

The Jib has a camera head mount that accepts 75mm/100mm fluid heads.

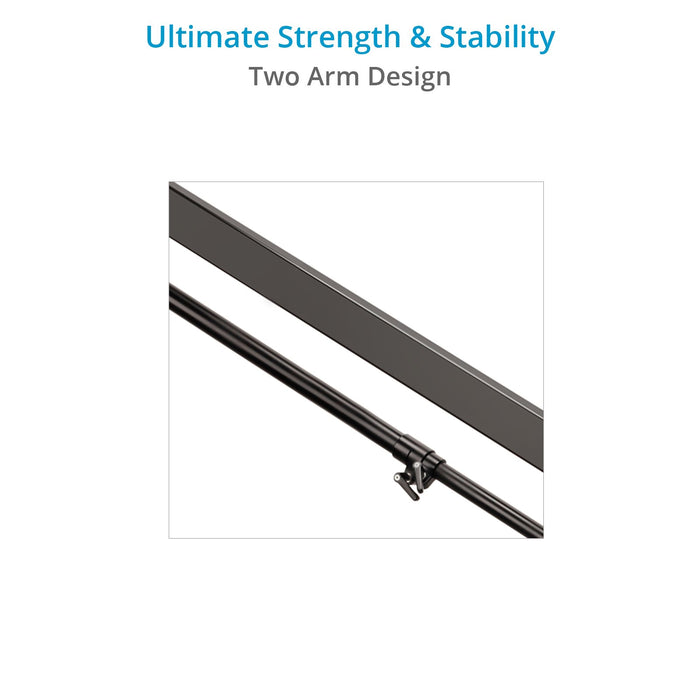

Two Arm Design offers enhanced strength & stability to the entire jib setup.

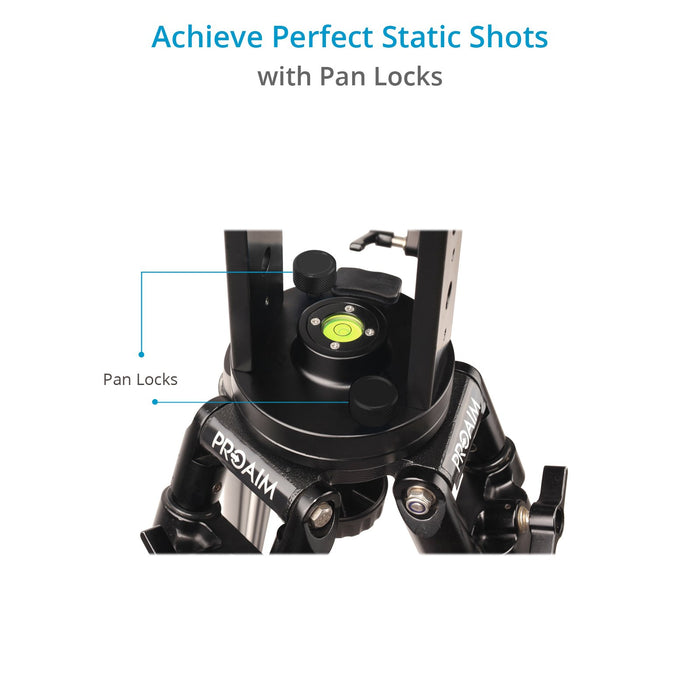

The Jib comes with pan knobs to control the panning of Jib.
Built-in bubble leveler offers fast, accurate set up on uneven surfaces.

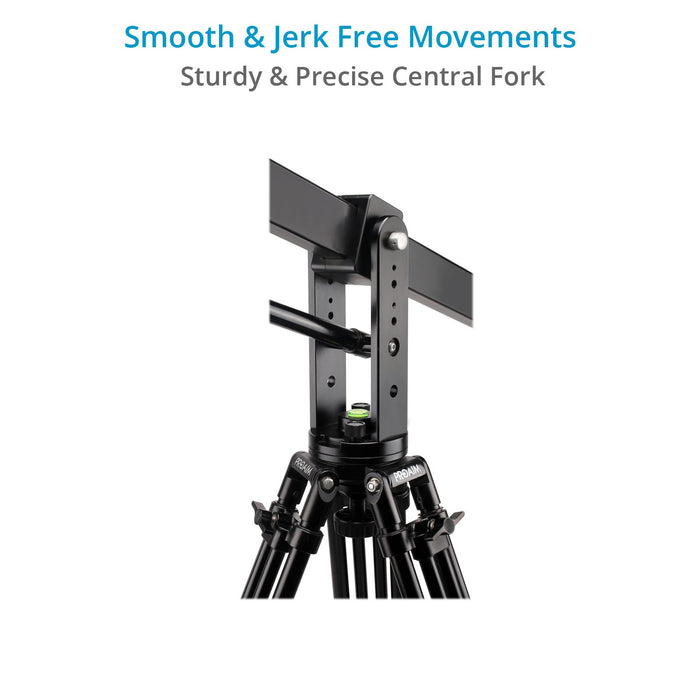

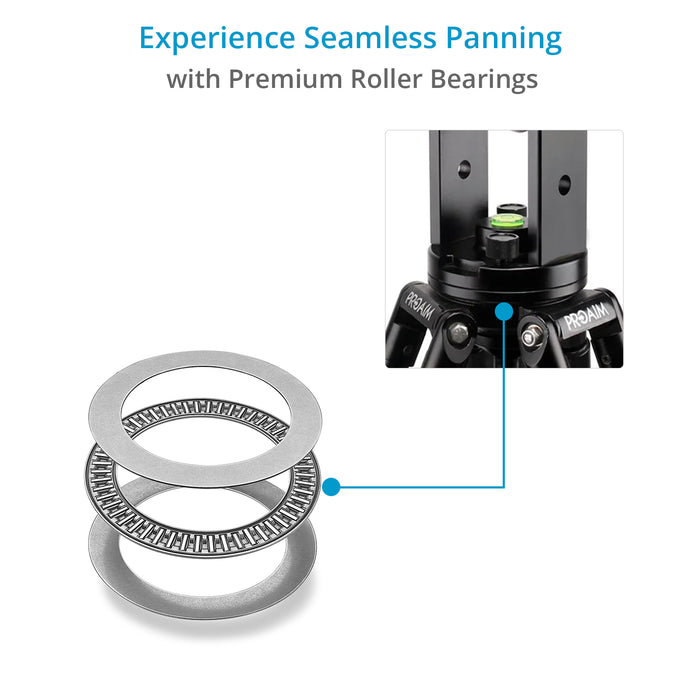

Assembly hub provides the perfect drag for smooth panning of the jib arm and absorbs unwanted vibration or movement from the operator.

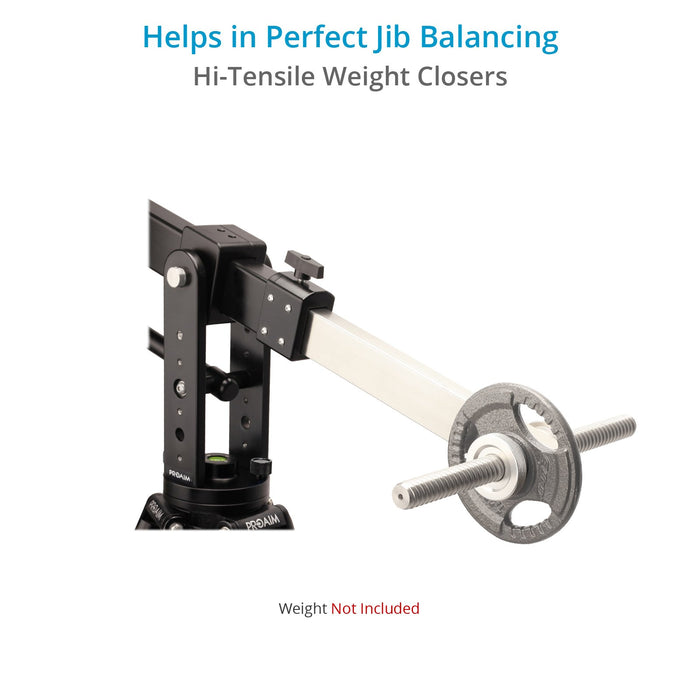

Hi-tensile weight closers keep the weight discs intact for perfect balance.

03.

ADAPTABLE LENGTHS

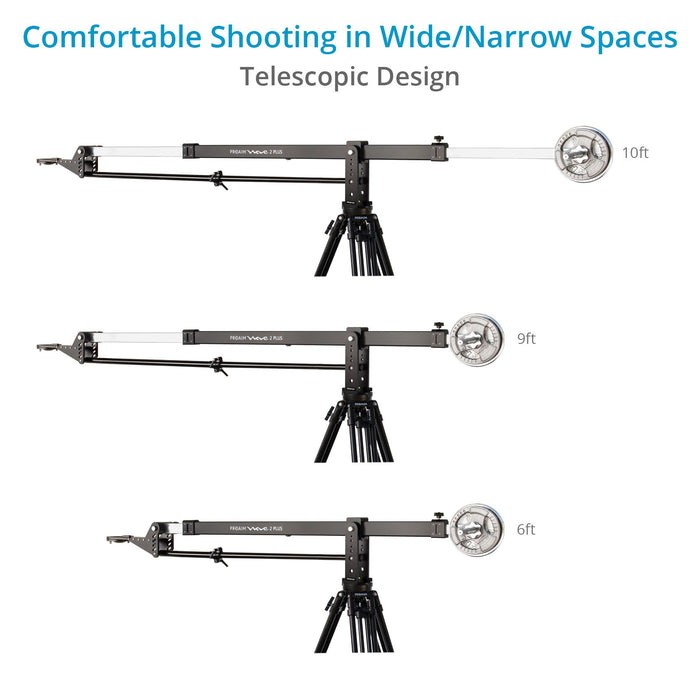

This travel-friendly Jib telescopes from the backside, which helps in the balancing of Jib. You can adjust the arm length from 6 feet to 10 feet.
The ability to change the length allows you to use the Crane in various scenarios.

04.

SOLID FOUNDATION FOR WAVE 10' CRANE

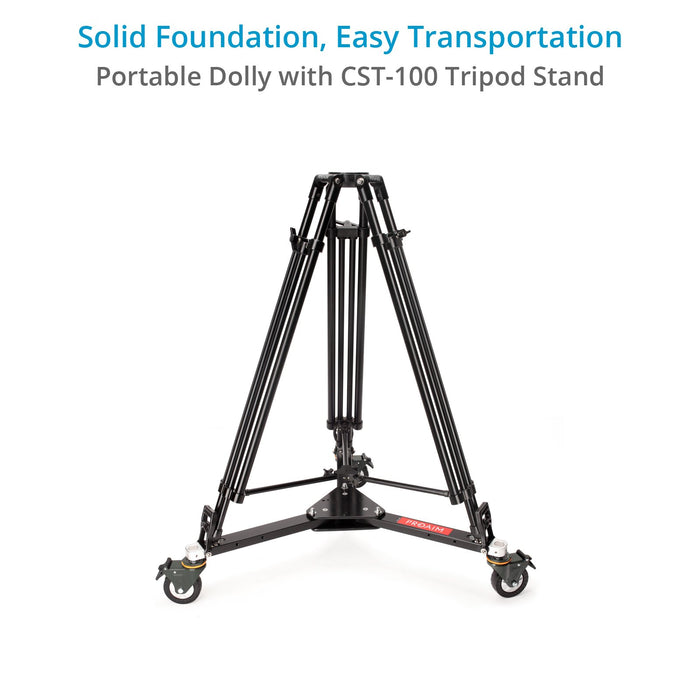

This excellent combination of CST 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.
The Tripod with spreader gives immense support with an incredible payload of up to 80kg/176lb and is highly stable in use.
Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payloads up to 500kg/1100lb.
The main features of Dolly are – Secure Tripod feet holders, locking brakes, high-quality wheels and foldable design.

05.

ENHANCE YOUR CREATIVE VISION

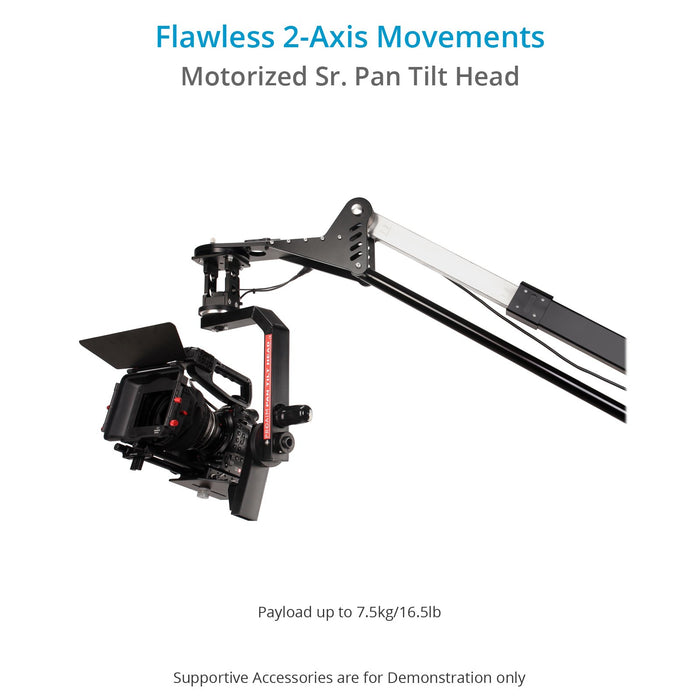

Proaim Sr. Pan Tilt Head
Proaim Sr. Pan tilt offers complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 7.5kg/ 16.5lb with ease. Creative flexibility is a built-in feature. The Pan Tilt head can be used with jib crane arms, tripods, and other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Sr. Pan tilt is a user-friendly Controller System.

06.

PAN TILT FEATURES

Two Coreless Motors
Two coreless high torque motors provide inaudible movements along with a payload capacity of 5kg / 11lb, which is substantially higher than its counterparts.

Brass Gears
The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.

07.

EASY OPERATION

Speed Controller- Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.

Dead Spot- The dead spot prevents the head from stopping suddenly with a jerk.

Damping Control- Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.

Pan-Tilt Direction- You can reverse the panning & tilting direction as & when required.

08.

MOST AFFORDABLE JIB SOLUTION
For DSLR Video camera rigs, there isn't a better crane system for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 10' Wave-2 Plus Jib package eliminates that concern by providing an excellent jib solution at an economical price.

09.

SIMPLIFIED TRANSPORT

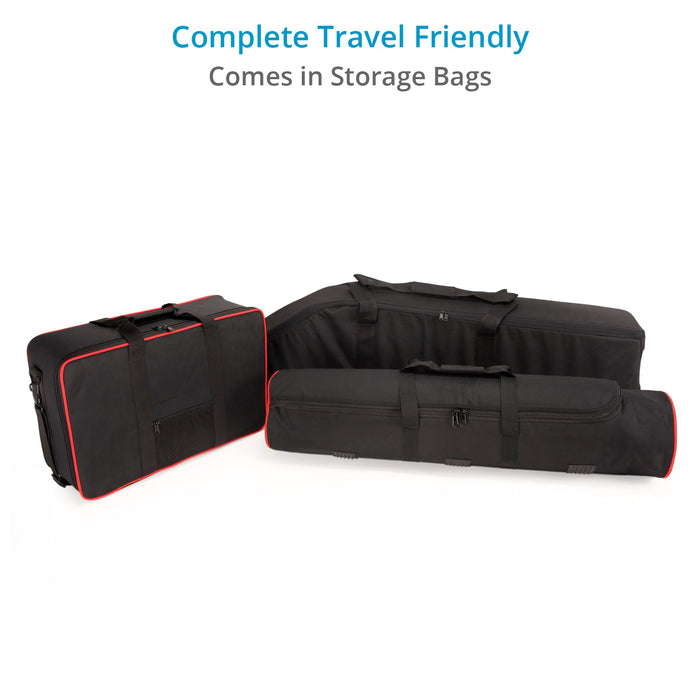

The Crane System comes in high-quality bags for easy storage. These compact bags are easy to carry with you to different sets and locations.

IN-ACTION VIDEOS

SPECIFICATIONS

10' WAVE-2 JIB

Construction

High-grade Aluminum & Stainless Steel

Load Capacity

  up to 25 kg / 55 lb

Tripod mount

  100mm diameter

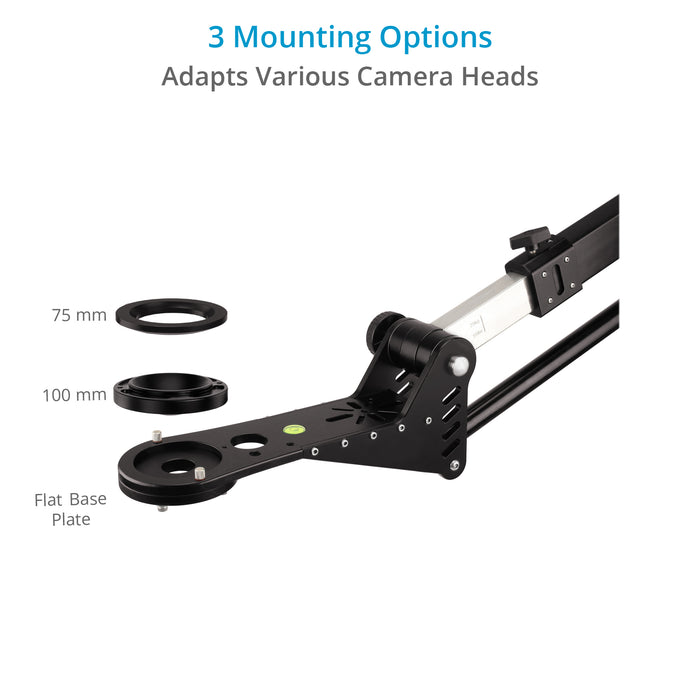

Camera Mount

  Flat base plate for Pan tilts heads
  100mm and 75mm Bowl head (with ring)

Telescopic Range

  6 feet to 10 feet

Pan Radius

  360 Degrees

Jib Pan Lock

  Yes (via pan friction knobs on U-Hub)

Jib Tilt Lock

  No

Camera Plate Tilt Lock

  Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)

Self balance

  7 kg/15 lb

Balancing Chart

 Camera Weight

15kg

20kg

25kg

 Counter Balance

30kg

40kg

50kg

 Measured Length

305cm

259cm

208cm

 Length from U Fork to Camera Plate

201cm

172cm

143cm

Note : The counterweight required to balance the jib will be approximately twice the weight of the camera setup. However, if the jib sections are collapsed, it may require fewer counterweights than is usually needed to balance the jib.

SENIOR PAN TILT HEAD

Made of Construction

  High-Grade Aluminum

Load Capacity

  7.5kg / 16.5lb

Pan & tilt

  Movement: 360°

Speed

  Minimum: 6°/sec
  Maximum: 51°/sec
  Covers 360° at Slowest Speed in : 2 minutes
  Covers 360° at Highest Speed in : 7 seconds

Motors

  Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)

Gears

  2 Small Brass Gears: ⌀ 13.5mm
  2 Large Aluminum Gears: ⌀ 88mm

Head Adjustments

  Minimum Height of Head: 18.5" / 46.99 cm
  Maximum Height of Head: 26" / 66 cm

JOYSTICK CONTROLLER

  Connectors: 2x 4-Pin XLR Male Connectors
  Pan/Tilt Direction: Yes
  Upgraded with: Damping Knob

AC Adapter input

  AC 100-240V ; Output 12V DC-2A

Cables

  Cable Length: 15 meter (Can be extended up to 50 meter)
  Cable Connector: 4-Pin XLR
  Battery Cable: 3 meter Long

Weight

  Pan/Tilt Head: 3 kg / 6.6 lb
  Joystick: 800 gram / 28.22 oz
  Bag Dimensions: 50 x 35 x 19 cm

CST-100 TRIPOD STAND

Construction

  High-grade CNC Aluminum

Load Capacity

  up to 80 kg / 176 lb

Diameter of Tripod Tubes

20mm and 14mm

Length

  Maximum - 60 inches
  Minimum - 34 inches

Collapsible Height

  36 inches

Weight

6.50 kg / 14.33 lb

Package Weight

  11.4 kg / 25 lb

Box Dimensions (LxWxH)

  39.7 x 10.2 x 9.5”

ALUMINUM SPREADER

Construction

  High-grade CNC Aluminum

Compatibility

  All Tripods with Twin Spiked Feet

Load Capacity

  up to 400 kg / 880 lb

Spreader Height

  50mm / 2 inches

Build-up Radius

  41 – 66cm / 16 – 26 inches

Weight

  2.47 kg / 5.44 lb

Package Weight

  3kg / 6.61lb

Box Dimensions (LxWxH)

55 x 18 x 14"

PORTABLE DOLLY

Construction

  High-grade Mild Steel

Weighing Capacity

  up to 500 kg / 1100 lb

Tripod Foot Compatibility

  Spiked Feet

Locking Wheels

  Yes

Weight of Product

  10.7 kg / 23.5 lb

Package Weight

11.65 kg / 25.68 lb

Box Dimensions (LxWxH)

  23.4 x 10.7 x 9.4"

IN THE BOX

  Proaim 10' Wave-2 Plus Camera Jib Arm
  Proaim CST-100mm Bowl Tripod stand with Aluminum Spreader (CST-100-01)
  Proaim Portable Dolly (P-PRT-D)
  Proaim Sr. Pan-Tilt Head (PT-SR)
  12V Joystick Controller
  75mm Conversion Ring
  100mm Bowl Adapter
  Flat base plate
  Storage Bag


Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products





  • Are the motors in the Pan/Tilt Head audible?

    Yes, a minor sound of approx 60db is will be there.

  • What is the weight rod diameter for the Proaim 10' Wave-2 Camera Jib Crane (SKU P-WV-2PL-PP)?

    The weight rod diameter of the Proaim 10' Wave-2 Jib Crane is 25mm.

  • Do you also sell monitor holding facility for it ?

    Yes, with the help of Proaim SnapRig 13inch Monitor Arm (MA220), the monitor can be mounted on the Proaim Wave Jib.

  • Can you attach the Zhiyun Crane 3S gimbal to the Wave-2 and if so which adapter is necessary.

    Yes, You can mount Zhiyun Crane 3S gimbal on Proaim 7' Wave-2 Jib with the help of Flycam Quick Release DJI-QR and Proaim Quick Release plate P-QRG.

    Here are the item links for your reference:
    DJI-QR: https://www.proaim.be/products/flycam-quick-release-mount-for-ronin-m-mx
    P-QRG: https://www.proaim.be/products/proaim-quick-release-plate-for-hand-held-gimbals

  • Could it be controlled by a computer

    The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.

  • Can the Sr. Pan Tilt Head be moved by hand if i don\'t want to use the motor?

    Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.

  • Concerning the Proaim 7\' Wave-2 Jib Crane, what \"standard\" counter weights does it use?

    The weight rod diameter of the Proaim 7' Wave-2 Jib Crane is 25mm. You can use any counterweight with this diameter. Here is an image for reference: https://prnt.sc/tfZ_gD8tpJEu

  • What is the size of the central screw used to attach this jib with the tripod stand

    The size of the central screw used to attach this jib with the tripod stand is M10.

  • What is the exact dimension from the centre of the bolt between the wheels?

    The distance between one wheel to another is 80cm. Here is the complete dimension of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D:
    https://prnt.sc/tBwFkvMn0OFP

  • In this Lineo portable tripod dolly are the wheels replaceable with track wheels?

    Yes, the wheels of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D are replaceable with Track wheels. Here is the link for the compatible track wheels:
    https://www.proaim.be/products/proaim-track-wheel-set-for-proaim-portable-dolly
