01.
PROFESSIONAL & WELL-DESIGNED JIB CRANE
Proaim 10' Wave-2 with dual-rail design offers enhanced strength & stability for creating sweeping cinematic movements, expanding your creative flexibility.
Ease of packing and a quick no-tool setup system maximizes its versatility.
This travel-friendly Jib extends backward as per operator convenience for better control.
Assembly Hub Provides the perfect drag for smooth panning of the arm.
The well-built pan knobs control the panning of the Jib. Built-in bubble leveler allows for fast, accurate set up on uneven surfaces.
Stronger weight closers keep the weight discs intact for perfect balance.
Powerful, Simple & Affordable
Best Travel Crane for Outdoor Extremes & Indoor Studio Shots!!
02.
COMPATIBILITY
The robust camera mount confidently accepts 75mm/100mm fluid heads.
The Jib is designed to mount a camera of practically any size, weighing up to 25kg / 55lb.

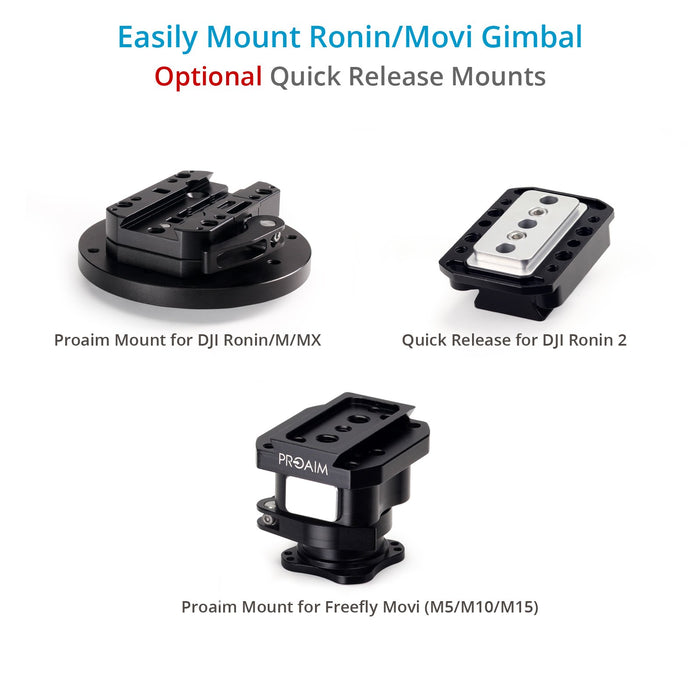

The Jib adapts Pan Tilt Remote Heads & 3-Axis Ronin/Movi Gimbals using separately available compatible adapters.
03.
ADAPTABLE LENGTHS
This travel-friendly Jib telescopes from the backside, which helps in the balancing of Jib. You can adjust the arm length from 6 feet to 10 feet.
The ability to change the length allows you to use the Crane in various scenarios.
04.
AFFORDABLE JIB SOLUTION
For rigs under 55lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the 10' Wave-2 eliminates that concern by providing an excellent jib solution at an economical price.
05.
SIMPLIFIED TRANSPORT
The 10' Wave- 2 comes in a foam padded storage bag to ensure full protection. This travel-friendly compact bag is easy to carry with you to different sets and locations.
IN-ACTION VIDEOS
CAMERA JIB ARM SPECIFICATIONS
Construction
High-grade Aluminum & Stainless Steel
Load capacity
up to 25 kg / 55 lb
Tripod mount
100mm diameter
Camera Mount
Flat base plate for Pan tilts heads
100mm and 75mm Bowl head (with ring)
Telescopic Range
6 feet to 10 feet
Pan Radius
360 Degrees
Jib Pan Lock
Yes (via pan friction knobs on U-Hub)
Jib Tilt Lock
No
Camera Plate Tilt Lock
Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)
Self balance
7 kg/15 lb
Balancing Chart
Camera Weight | 15kg | 20kg | 25kg |
Counter Balance | 30kg | 40kg | 50kg |
Measured Length | 305cm | 259cm | 208cm |
Length from U Fork to Camera Plate | 201cm | 172cm | 143cm |
Note : The counterweight required to balance the jib will be approximately twice the weight of the camera setup. However, if the jib sections are collapsed, it may require fewer counterweights than is usually needed to balance the jib.
IN THE BOX
Proaim 10' Wave-2 Video Crane Jib
75mm Conversion Ring
100mm Bowl Adapter
Flat base plate
Assemble Hub
Storage Bag
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
God morning! Is the pan/tilt head, Spin-3 (PT-SPIN-3) compatible with 10’ Wave-2 Jib (P-WV-2PL) and is it a good rig for a 10kg camera. Best regards! Per Frisell Stockholm
Yes, the 10kg camera setup can be mounted on this pan tilt head only when the crane is used in the 9ft or 6ft length.
-
Is the Proaim 10' Wave-2 compatible with the swift dolly on swift dolly tracks if I put it on the CST100mm Tripod?
Yes, the Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads (P-WV-2PL) is compatible with CST100mm Tripod on swift dolly.
-
Hi! Can we mount a flat-base head from the get-go, meaning with no adapter needed? Thank You
Yes, we can easily mount a flat base head on Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads.
No adaptor will be needed. -
Will P-JS work with my Jib?
The Proaim Heavy-Duty Stand for Camera Jib Crane P-JS will not work with the Proaim 10' Wave-2 Jib Crane P-WV-2PL. The Proaim 100mm Camera Tripod Stand (CST-100-01) will perfectly work with the Proaim 10' Wave-2 Jib Crane P-WV-2PL.
-
Concerning the Proaim 7\' Wave-2 Jib Crane, what \"standard\" counter weights does it use?
The weight rod diameter of the Proaim 7' Wave-2 Jib Crane is 25mm. You can use any counterweight with this diameter. Here is an image for reference: https://prnt.sc/tfZ_gD8tpJEu
-
What is the size of the central screw used to attach this jib with the tripod stand
The size of the central screw used to attach this jib with the tripod stand is M10.
-
I see this crane jib on a tripod. Would it also work to be attached to the bazooka on my new dolly? Would that be sturdy enough?
Yes, you can mount the Proaim 10' Wave-2 Jib Crane on the DL-QDFW-01 bazooka with the help of the height riser that is included in the DL-QDFW-01. Here is an image for your reference:
https://prnt.sc/-38eKvNy4xB1
