Flycam HD-3000 Camera Steadycam System with Comfort Arm and Vest
Free Table Clamp and Unico Quick Release Plate Supporting Cameras weighing upto 3.5kg/7.7lbs
A Real Stabilizer That Truly Allows You
The Perfect Balance of Control & Smooth Movement!
With the technology up-gradations and enhancements in stabilization systems we are introducing our Flycam HD- 3000 Handheld Camera Stabilizer with Comfort Arm & Vest Kit, complete Professional state of art, lightweight stabilization kit designed especially for modern cameras up to 3.5kg/7.7lb. The affordable and versatile Flycam camera stabilizer offers you focus on your shooting the event instead of your discomfort and stress.
The Cushioned padded vest and CNC made aluminum Arm is fully adjustable and reduces muscle strain common to extended periods of shooting time. Super stable built with numerous effective features has made this video stabilizer the most trusted choice of its satisfied customers.
"WHAT YOU SEE IS WHAT YOU GET"
(Revised on 25-Dec-2017)
FLYCAM HD-3000 HAND-HELD STABILIZER
QUICK RELEASE PLATE
A Quick Release, no-tools, drop-on camera mount plate allows you to quickly attach or remove your camera. Plate has both 1/4" and 3/8" mounting slots (holes) to accommodate a variety of camera bases. Adjustments can be made using both the horizontal and vertical axis. Camera Mounting Platform allows you to adjust the camera’s horizontal & vertical balance. Ergonomic, control knobs allow quick, precise adjustment of the top stage’s back and forth, and side-to-side movement. Velcro is used so that the camera plate & the camera itself do not get scratches. It does not create friction.
Ergonomic control knobs allow quick precise adjustment
X & Y BALANCING ADJUSTMENT
Moves back to front, and side to side, quickly allow you to adjust horizontal balance of camera. By varying the counterweight discs on the base platform you can adjust the camera's vertical balance. When balanced properly the camera floats, ready for you to move into action.
Dynamic camera platform securely position camera for best shooting angle
DSLR STABILIZER HANDLE
BALANCING THE CAMERA
This DSLR stabilizer system contains weights to balance the camera on stabilizer. Add or remove weights as per your camera’s requirement.
Adjustable counter weights helps you fine-tune your camera's dynamic balance
Hi-Grade Aluminum construction is for lightweight and durable performance, which you can count on. The Telescopic Post of Flycam HD-3000 DSLR Stabilizer extends from 40cm to a full rise height of 60cm to adjust the balance weight of the camera. By varying the amount of Counter Weights on the Base Platform, or by changing the length of the no-tools telescoping Central Post, you adjust the camera's vertical balance. When balanced properly the camera floats, ready for you to move into action.
Telescopic feature allows you to adjust the height for shooting at higher angle
Versatile, light in weight Vest with padded front, back and shoulder areas, helps to remove fatigue and muscle strain while shooting for extended periods of shooting time. It ensures the universal fit vest for all body types with the easy adjustable Velcro straps. Once fitted, no further adjustments needed.
- Guaranteed comfort with the four-strap suspension system lets you quickly put on and remove off the system
- The Chest Plate made of aluminum black anodizing is completely locked with stainless steel screws.
- The vest also comes with height adjustment function to match your height to the vest and best of all, no tools are required.
All vest fabric made of durable high-quality weather-resistant materials
CUSTOM HEIGHT ADJUSTMENT FOR BODY VEST

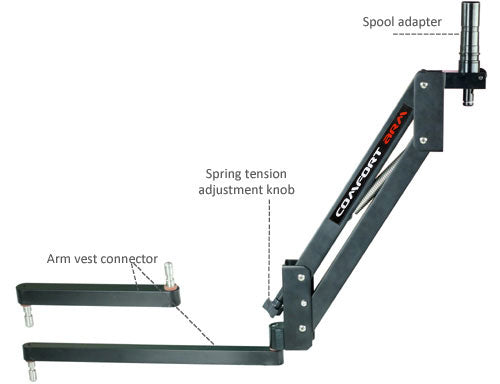

CNC machined Comfort Arm is high quality build, lighter in weight and durable. The spring and bearing mechanism allows you to take smooth as silk gliding shots.
- The 22.5 mm connector at the arm provides a precision fit to the Camera Stabilizer handle.
- An adjustable shock absorbing spring absorbs the shock caused by walking and gives operators the flexibility to capture hi and low angle shots with a minimum of fuss.
- The arm works friction free on a series of eight fully sealed bearings allowing it to pivot, and boom. Easy to attach/remove it.
- The Spring adjustable knob allows you to adjust the amount of spring tension according to your requirement.
Configured with the high grade material for incredible results
SPRING ELASTICITY ADJUSTABLE KNOB
UNICO QUICK RELEASE (QR-5) - Absolutely FREE
Quick Release Adapter is capable of holding medium format DSLR cameras. The faster option for changing the camera and wider mounting plate makes it a best choice for professional photographers.

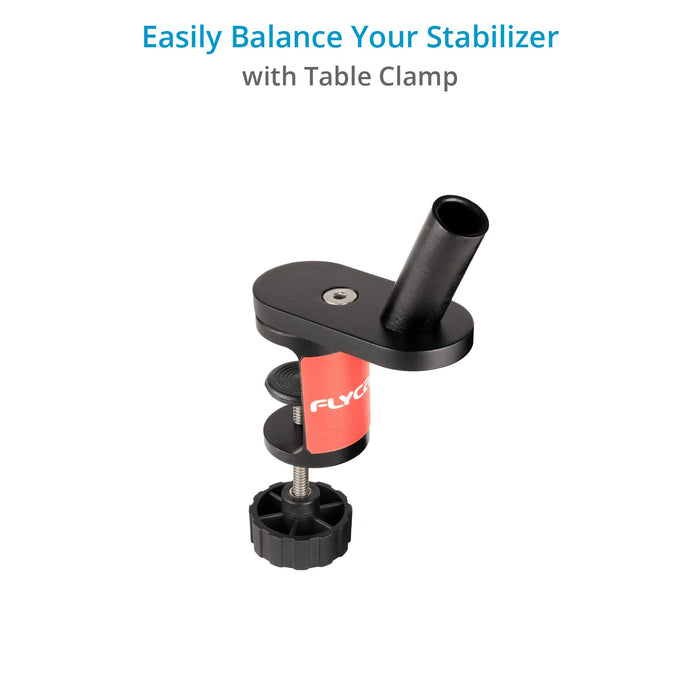

TABLE CLAMP - Absolutely FREE
Quickly balance your video stabilizer with the table clamp. Free yourself from the burden of holding a steadycam for long hours in between the shoots.
Highly Sophisticated Mechanism Lets You Earn Seamless Shots without fatigue
The Supportive accessories are for demonstration purpose only.
- Cameras weighing up to 3.5kg
- Head Dimensions - 17.4cm x 10cm x 2.2cm
- Base Platform Dimensions - Shortest - 12.2cm x 36.5cm
- Base Platform Dimensions - Longest - 12.2cm x 48cm
- Strong metal telescopic pole
- Shortest mode - 40cm
- Longest mode - 60cm
- 10 Counter Weight Plates
- Camera Mounting Plate has 1/4" mounting holes
- Base Platform has 1/4" mounting hole for optional LCD Monitor attachment
- Flycam HD-3000 weight - 5.547 pounds
- Velcro attached to the camera plate to avoid scratches and it does not create friction.
COMFORT ARM AND VEST
- Stabilizer Arm weight - 1.390 kg/3.5lb
- Stabilizer Vest weight - 1.67 kg/3.6lb
- Waist size: 28" to 60"
- Small Extension arm - 18cm
- Big Extension arm - 32cm
- Length of Spring - 11.5cm
- Pin Dia - 0.9 cm
UNICO QUICK RELEASE
- Color: Matt Black
- Dimension: 135*72*20mm
- Self Weight: 135g (0.30 lbs)
- Max. Load Capacity: 5kg (11 lbs)
- Accepts both 1/4" or 3/8" camera mounting screw size
- Flycam HD-3000 Handheld Steadycam Stabilizer (FLCM-HD-3-QT) (Revised on 25-Dec-2017)
- Comfort arm & vest (CMFT-AV)
- FREE Unico Quick Release (FLCM-UQR)
- FREE Table Clamp (TC-030-00)
- Custom Fit Bag Packing
Q : What are the minimum and maximum chest and waist sizes the vest will fit ?
Ans : The Vest will fit to the sizes as follows :
Minimum Chest Size : 38 inches
Minimum Waist Size : 28 inches
Maximum Chest Size : 52 inches
Maximum Waist Size : 60 inches
Q : Can i put a dslr on it? is it possible to mount one on there? saw a video and they were using larger cameras but curious on the usage of a dslr ?
Ans : Yes, you can put a DSLR on it, you can put a variety of cameras as this arm and vest will perfectly work for total weight up to 8kg(17lbs).
Q : Do the vest and arm help with stabilization?
Ans : Yes it does help, however the most important part of stabilization is first balancing the flycam initially. That would mean placing all items that will be used on the day of shooting (ie, Monitor, Battery, Camera, Lens, Wires, additional mounts, etc) for proper accuracy in the balancing process. It will take some time to correctly balance, but once you have the corret balance of the stabilizer, the arm and vest will be extremely helpful in the final stabilization.
Q : Just to make sure. this comes with the vest & the fly cam stabilizer?
Ans : Yes, It comes with an Arm and Vest only. The Flycam stabilizer is ‘NOT INCLUDED’ in this kit.
Q : Will this work with a glidecam 4000 and hd series?
Ans : Yes, it will perfectly work with your glidecam stabilizer. But this kit does come with it's own stabilizer.
Q : What is the shipping weight of this kit? it does not include table clamp? thanks!
Ans : The shipping weight is around 11lbs or 5kg. It does not come with a table clamp.
Q : What is the diameter of the main shaft?
Ans : The main shaft (spool adapter) has the diameter of 18.5mm which can easily adapt the stabilizers with the handle’s inner diameter of 19mm. We provide a bush to add onto it to make it 21.5mm so that it can adapt to the handle’s diameter of 22mm.
Q : Does the vest have a carrying case too?
Ans : No, The vest doesn’t come in a carry case.
Q. Does this steadicam come with the counterweight?
Ans : Yes, this steadicam comes with counter weight plates i.e. 8 weights for each side.
Q. Is it compatible with the arm and vest?
Ans : Yes it is compatible with the Arm & Vest. There are two options for Arm & vest for this camera stabilizer i.e.
i) Comfort Arm & Vest : Flycam Comfort Arm & Vest Camera Stabilization System
ii) Galaxy Arm & Vest : Flycam Galaxy Steadycam Arm & Steadycam Vest
Q. Does it come with a protector bag?
Ans : Yes, this Flycam HD-3000 includes the foam packaging with bag.
Q. Can I mount LCD Monitor with HD-3000?
Ans : Yes, you can mount the LCD monitor onto the weight plate of Flycam HD-3000. You need to remove the weights from one side to which you want to mount the LCD monitor.
Q. What's the maximum weight capacity?
Ans : This Flycam HD-3000 can take the cameras weighing upto - 3.5kg / 8lbs.
Q. Will the flycam hd-3000 handheld video stabilizer work with a glidecam arm brace or do I have to purchase the flycam arm brace?
Ans : Yes, the Flycam HD-3000 Stabilizer will work with glidecam arm brace.
Q . If my camera plus accessories are overweight, what options do I have? Can I add more counter weights?
Ans : HD-3000 can bear upto 8lbs. You can add more counter weights for total weight upto 9lbs only. If the weight of your setup is more than 9lbs, we suggest you to purchase Flycam HD-5000 for perfect balance as it can bear weight upto 11lbs.
Q . How long can I use the steadicam before I get tired? Do I need the Arm & Vest with this?
Ans : This Flycam HD-3000 camera steadycam weighs only 2.7kgs and so can be holded easily for long time but for more comfort you can use it with Arm Support and Body vest. Following are the options for it :
i) Flycam Arm Brace support
ii) FLYCAM Body Pod
iii) Flycam Comfort Arm & Vest Camera Stabilization System
iv) Flycam Galaxy Steadycam Arm & Steadycam Vest
Q . What is the difference between the HD-3000 and Flycam 3000?
Ans : The key difference in both the models is the design. The HD-3000 has micro balancing feature as compared to Flycam 3000. The HD-3000 includes Unico Quick release plate and Table clamp as free accessories, where as Flycam 3000 includes Unico Quick release plate and Flycam Yoko as free accessories.
Q . What is the weight of HD-3000?
Ans : The weight of HD-3000 with weight plate is approx. 2.7 kg
Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans : Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 14 days and you get a 100% refund.
Q : What is the warranty?
Ans : We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
