Proaim 19-15mm Camera Base Plate, ARRI Standard Dovetail Tripod Plate with New Quick Lock

Original price €108,00 - Original price €108,00
Original price
€108,00
€108,00 - €108,00
Current price €108,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : CH-DTPQ-01

AT A GLANCE


Rod Ports
15mm and 19mm
Mounting / Standard
ARRI / 19-15mm

Secure checkout | Fast delivery | 30-day returns | 1-year warranty

19-⁠15mmCamera base plate

A heavy-duty base for every camera build.

The Proaim 19-15mm Camera Base Plate pairs an ARRI standard dovetail tripod plate with a new quick lock. Build anything from an ALEXA to a Sony F5 on one plate, run 15mm or 19mm rods for a matte box or follow focus, and get the whole rig on and off the tripod with ease.

15/19mmRod ports
ARRIStandard dovetail
1.36 kgWeight (2.99 lb)
CNCHigh-grade aluminum

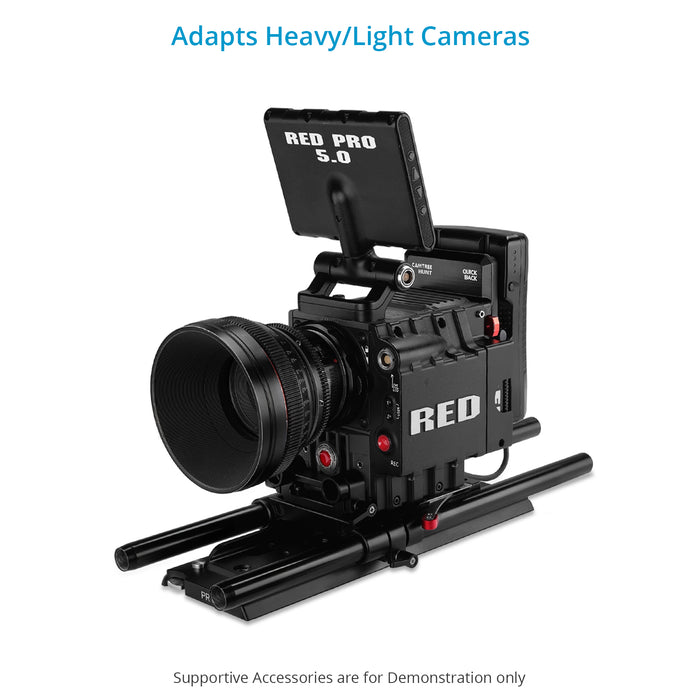

RED cinema camera with a lens, mounted on the Proaim 19-15mm Camera Base Plate with its rods

01Base plate

Modern camera platform

Proaim 19-15mm Base Plate is lightweight yet heavy-duty platform and comprises of ARRI Standard Dovetail Tripod Plate. You can easily attach any camera to this versatile base plate such as heavy-duty cameras like the ALEXA or lightweight cameras like the Sony F5.

High Grade Aluminum Construction ensures durable long life service. Quick Release System allows for quick mounting & dismounting of camera setup.

AnyCamera, light or heavy
LightYet heavy-duty
LongService life

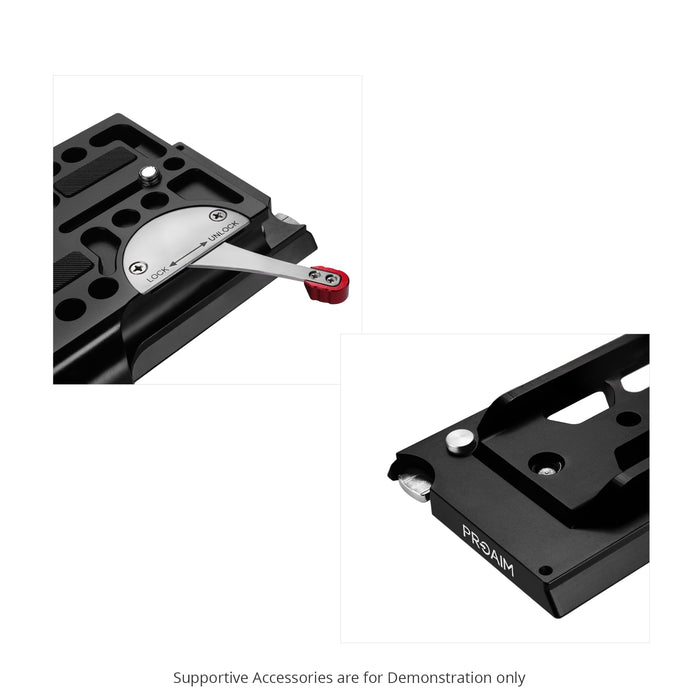

Proaim 19-15mm Camera Base Plate: the quick lock lever unlocks and the plate slides along the ARRI dovetail

02Lock lever

Quick Release System

Unlock the lever and the entire camera setup slides off the ARRI standard dovetail in one piece. Slide it back on, lock the lever, and you're ready to shoot again, with your rods and accessories still in place.

The locking lever holds the base plate firmly on the dovetail until you release it, so fast changeovers never cost you stability.

LeverLock & unlock
FastMount & dismount
SlideOn & off
Cinema camera rig with a matte box and monitor on the Proaim 19-15mm Camera Base Plate, mounted on a tripod head

03Rods & tripod

Mounting

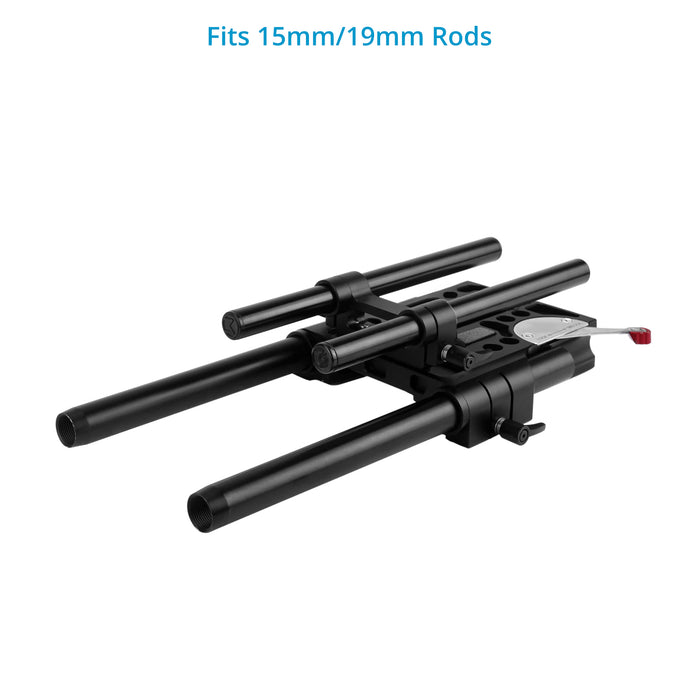

The base plate comes with a 19-15mm rod adapter and utilizes 15mm and 19mm rods to mount on accessories such as a matte box or follow focus.

The ARRI standard dovetail mounts directly onto the tripod and works best with heavy-duty tripod heads like O'Connor 2060 , O'Connor2575, O'Connor120ex , Sachtler cine 30.

RodsMatte box & follow focus
DirectOnto the tripod
ProHeavy-duty heads
Proaim 19-15mm Camera Base Plate with arrows marking the anti-off pins at both ends of the dovetail plate

04Anti-off pins

Secure Front and Rear Loading

Feature an anti-off pin on both ends, making the camera installed or removed either from the front or rear with safety

The pins stop the plate from sliding off the end of the dovetail by accident, so you can load the camera from whichever side is easiest on set and keep your rig protected while you do.

2Anti-off pins
SafeInstall & remove
BothEnds protected

05Specifications

Proaim 19-15mm Camera Base Plate

ConstructionHigh-grade CNC Aluminum
Camera CompatibilityUniversal
Rod Ports15mm and 19mm
Camera Mounting1/4"-20 & 3/8”-16 screws
Tripod Mounting1/4"-20 & 3/8”-16 threads
Weight1.36 kg (2.99 lb)
Dovetail Tripod Plate Dimension30 cm x 9.5 cm

In the box

  1. 0119mm/15mm Camera Base Plate
  2. 02Dovetail Tripod Plate (ARRI Standard)
