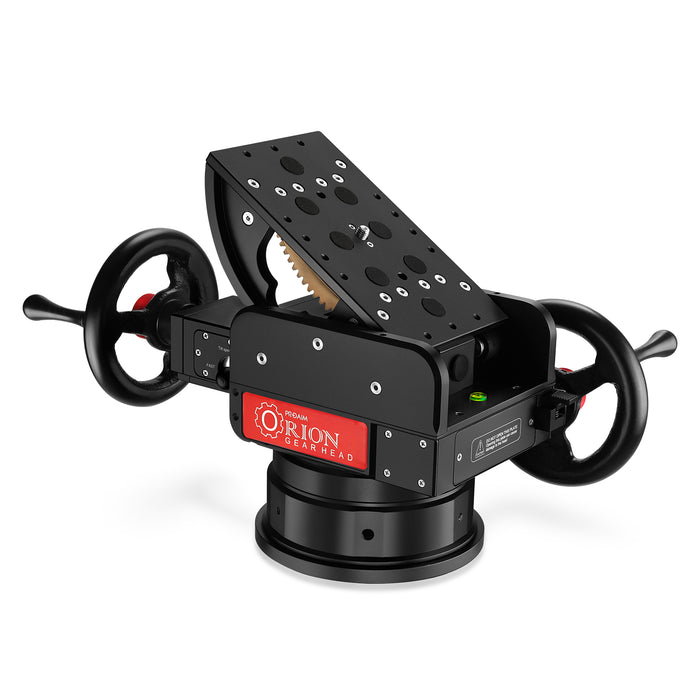

Proaim Orion geared head

Sold out


Professional Gear Head!!
"Stand Out from your competition & Create professional looking content today."
Proaim Orion gearhead with mitchell & 100m bowl mount

Nothing  Beats  the Smoothness  Of
Developed to guarantee extremely precise camera adjustments
Proaim Orion gearhead with mitchell & 100m bowl mount

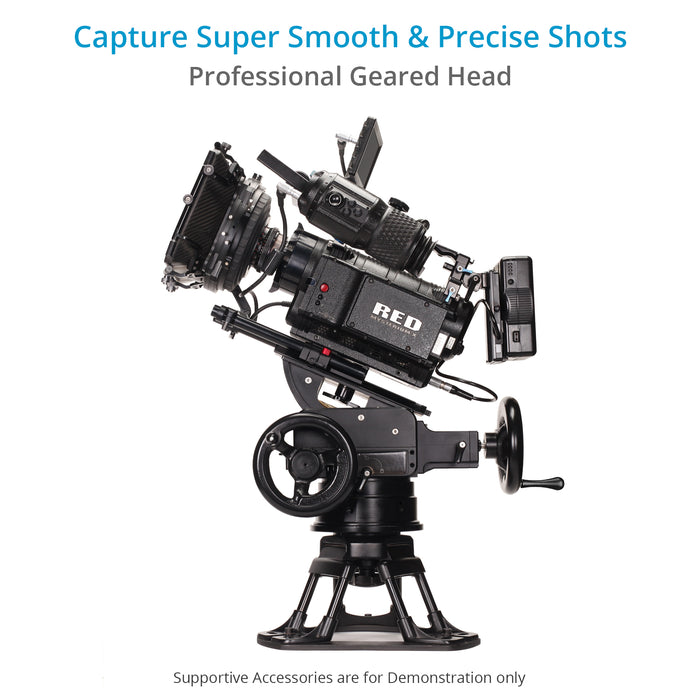

PROAIM proudly unveils its exclusive Orion Geared head to precisely control your camera's orientation while offering immensely stable, smooth and balanced shots.

This CNC constructed gear head is perceptively designed for independent and professional filmmakers & is perfect for numerous professional cameras. It can be installed on existing tripod with provided 100mm bowl and Mitchell mount.

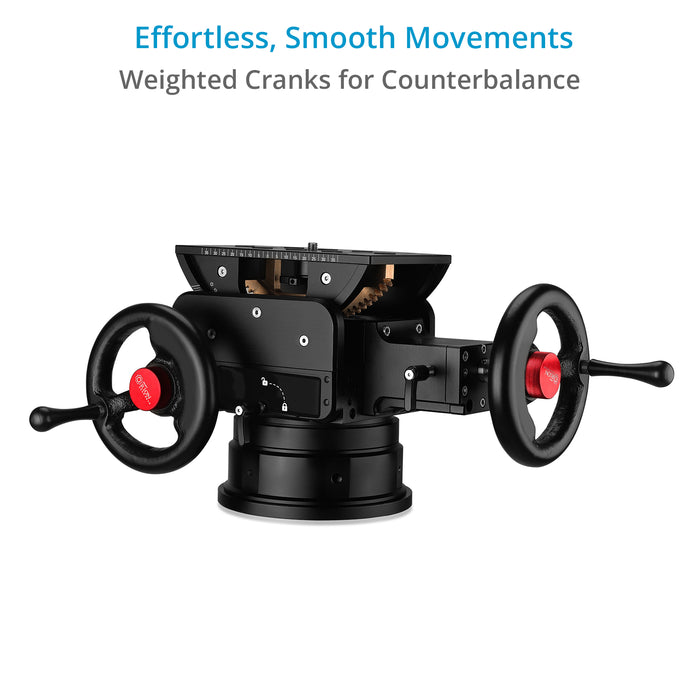

Proaim Orion features weighted cranks for counter balancing technique to rest the crank where you left & free spin to keep crank spinning after few rotations.

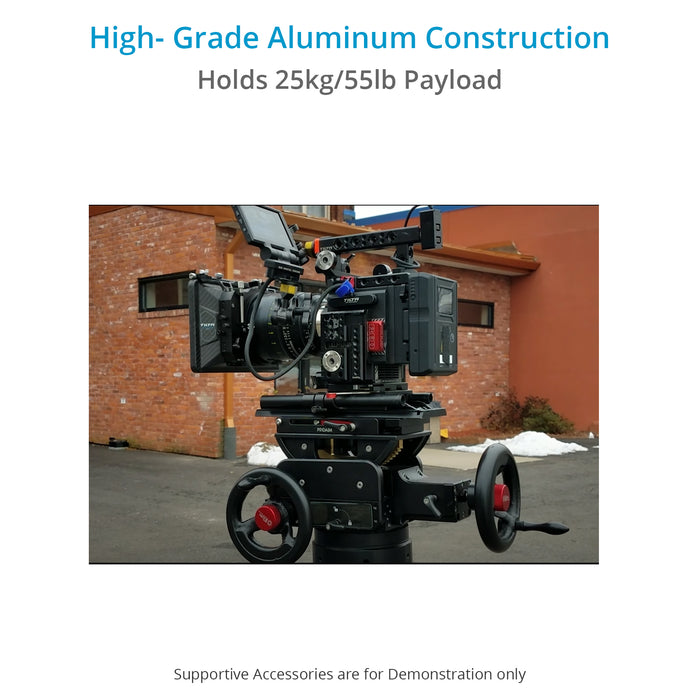

It includes a locking mechanism that allows to use panning & tilting function together or separately as per your requirement. This geared head is perfect for any camera weighing under 25 kg/55lbs.

toolless gear head

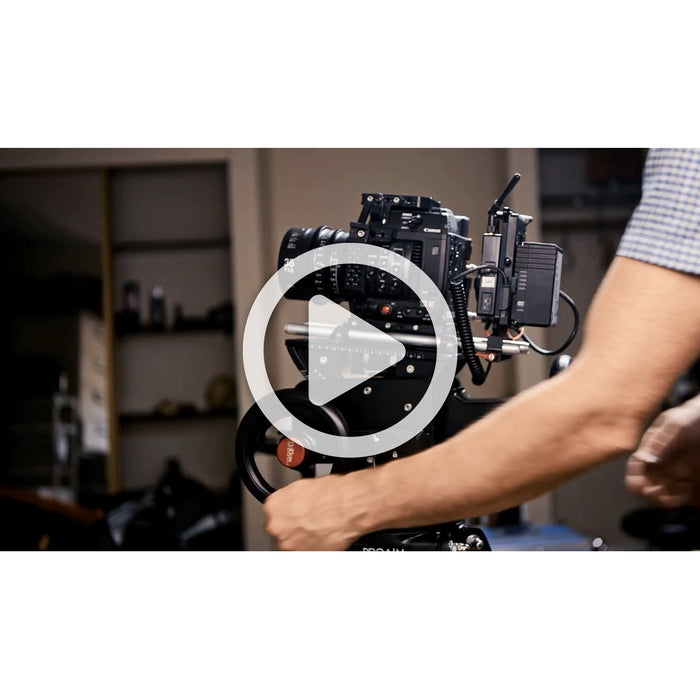

Want to know more about this Gear Head? Check this out:
“When you start moving into heavier cameras or you start rigging out your DSLRs, it becomes a little bit more difficult to control, so you will need a head that is heavier. This is a wonderful (geared) head for production shots”

-Randy Walsh (a Cinematographer for 38 years)

Saves time on set takes as little as 5 minutes

toolless gear head

Perfect for all professional cameras such as: • RED ONE • ARRI ALEXA • Panasonic Varicam • Panasonic HDX900 • Sony F900
• Panasonic DVX100 • Panasonic HVX200 • Sony FX1 • Sony EX1/EX3 • Other lightweight 35mm and 16mm film cameras.

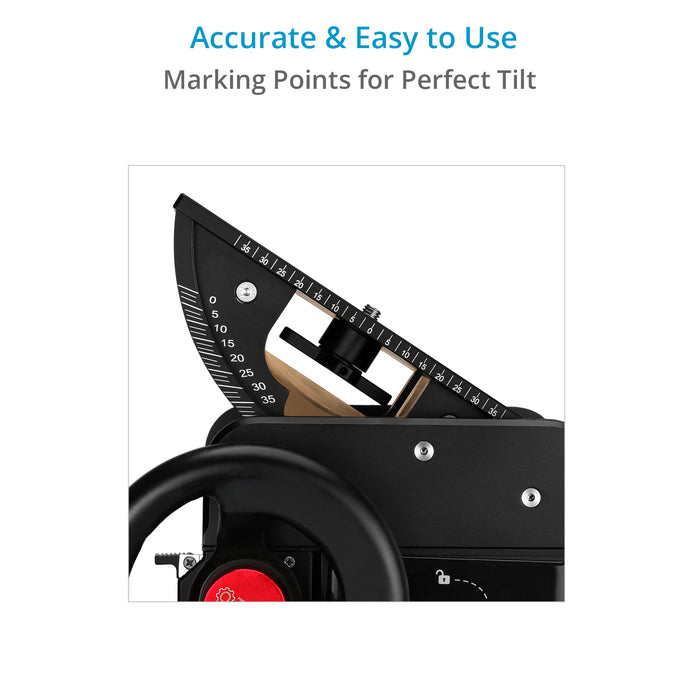

With precise marking points
Surprisingly accurate and easy tool to use

Proaim Orion gearhead with mitchell & 100m bowl mount

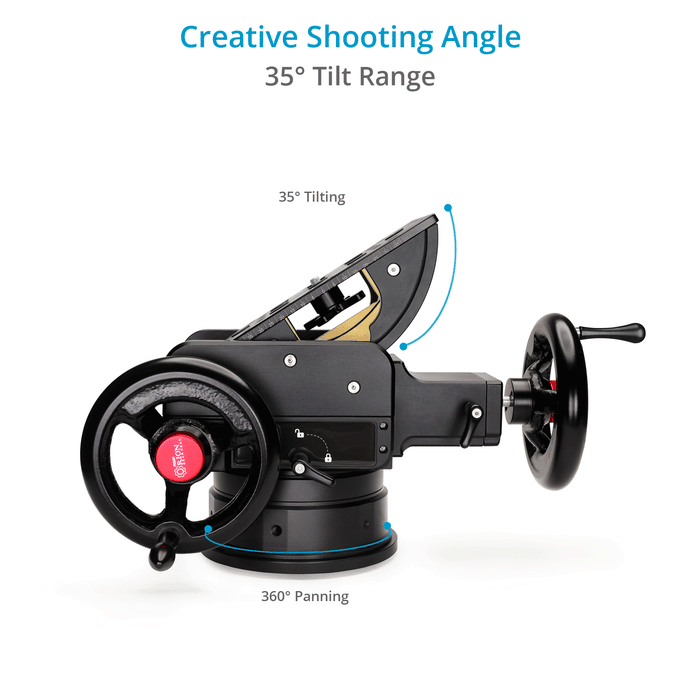

Performs 360° fluid pans and 35°tilts with the privilege of precise marking points for perfect tilting.

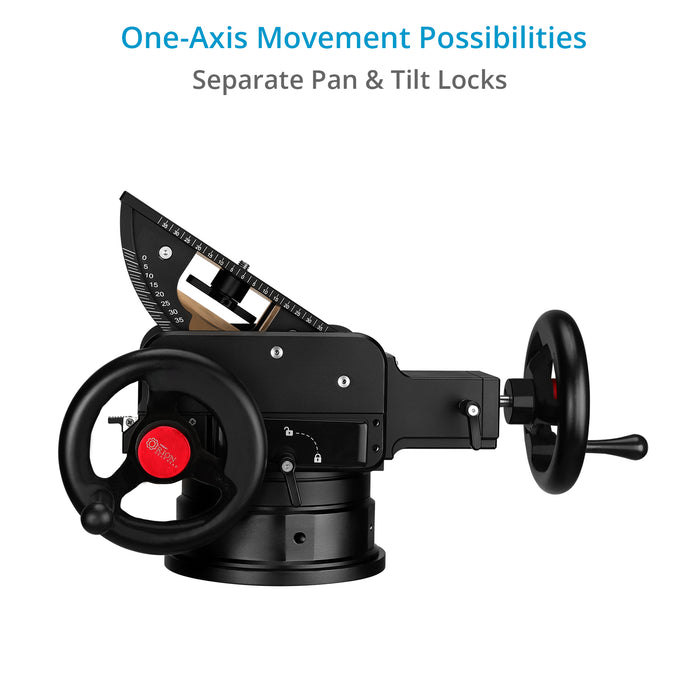

With quick lock levers

Proaim Orion gearhead with mitchell & 100m bowl mount

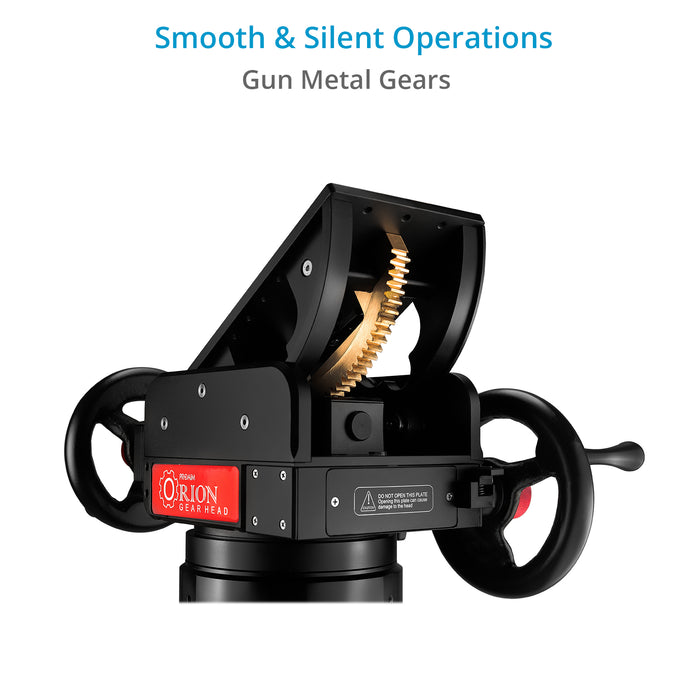

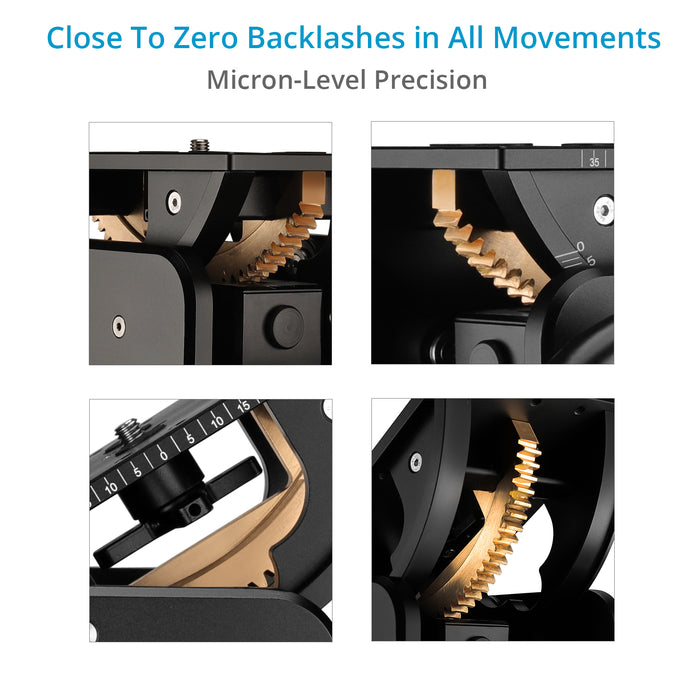

Locks and unlocks the movement of each axis to use panning and tilting function together or separately as per requirement. Strong constructed brass gear provides long life durability.

to add tremendous effects in your footages

dslr head

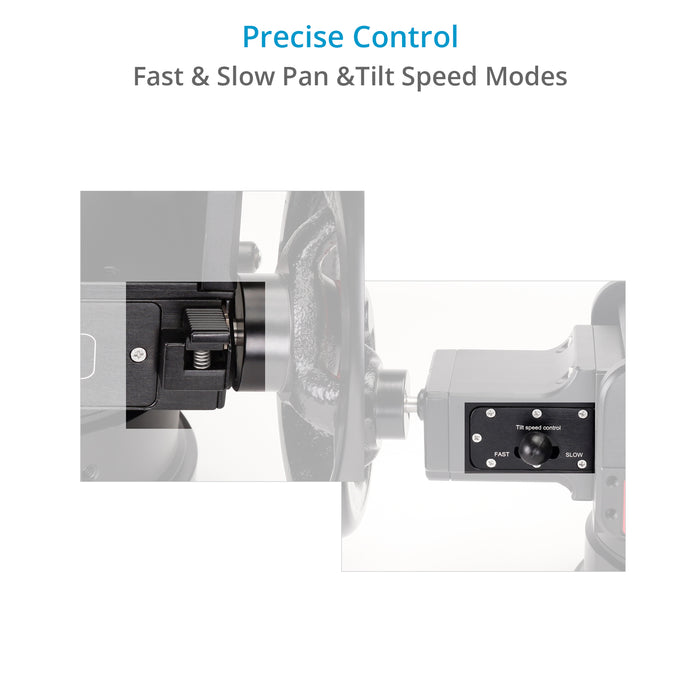

Speed control mechanism
Quality constructed levers adjust the speed of cranks by controlling the speed mode.

Proaim Orion gearhead with mitchell & 100m bowl mount

If you want to have a more 'controlled' look and also tend to use one in a studio situation, for long dialogue scenes and for many specific dolly moves that require speed and a firm stop, this geared head allows for a very accurate pan or tilt and a clean hard stop.


onlocation use of Orion gear head with slider

Proaim Orion gearhead with mitchell & 100m bowl mount


Proaim orion gear head bag packing



 Complete CNC

 Gear Material


 Crank Material

 Forge Casting

 Load Capacity

 25kg / 55lb

 Tripod Mounting

 Mitchell base, 100mm bowl

 Product Weight (With packing)

 30.6kg / 67.5lb

 Camera Plate (l x b)

 21.5 x 13 cm

 Tilting Rounds

 At Fast Speed: 25 & At Slow Speed: 14

 Panning Rounds

 At Fast Speed: 112 & At Slow Speed: 57


 360 Degree


 35 Degree

 Tilting Degree/ Round

 At Fast Speed: 2.5 Degree/Round & At Slow Speed: 1.4 Degree/Round

 Panning Degree/ Round

 At Fast Speed: 6.3 Degree/Round & At Slow Speed: 3.2 Degree/Round

 Camera Mounting

 3/8”- 16

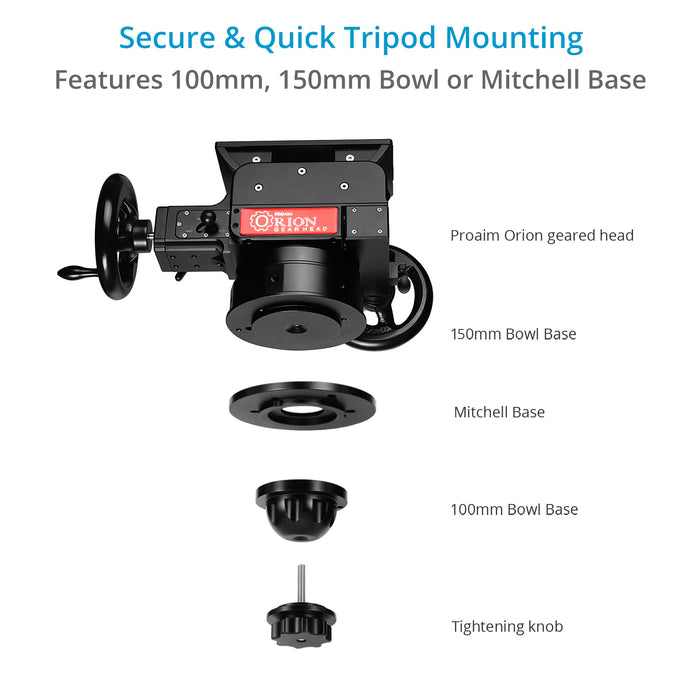

-  Proaim Orion Gear head
-  Mitchell Base
-  100 mm Bowl Base
-  Tightening Knob

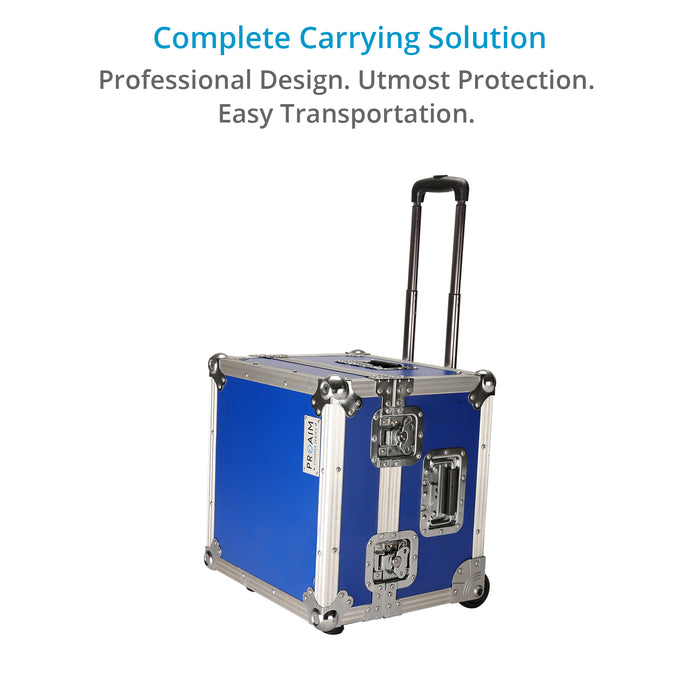

- Hard Case



Q: Does it mount on tripod?
Ans: Yes, it with fit to a Mitchell base or a 100mm bowl tripod.

Q: Will the fluid head mount on it?
Ans: It comes with ¼” screw mount so it will fit only incase if your head has the ¼” thread .

Q: Is its speed adjustable or it will rotate at fixed speed?
Ans: Yes, the speed is adjustable.

Q: Will external lcd monitor mount on this head?
Ans: Yes, you can mount lcd monitor on this head.

Q: How heavy is the Geared head?
Ans: It is around 16.5kg.

Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 14 days and you get a 100% refund.

Q: What is the warranty?
Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
