Can the crane be moved while fully assembled?

Yes. The included dolly allows smooth repositioning, and wheel locks ensure stable static shots.

Does the pan-tilt head support controlled starts and stops?

Yes. Speed and damping controls help achieve smooth motion and clean shot endings.

Can unused arm sections help with counterbalancing?

Yes. Extra sections slide into the rear and act as ballast, reducing counterweight needs.

Hello, is screen includes in the crane packages ?

The Proaim Camera Crane Packages does not include the monitors or screens.

Can the Sr. Pan Tilt Head be moved by hand if i don't want to use the motor?

Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.

Could it be controlled by a computer?

The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.

Which size of Tripod legs can fit in the D-33 dolly?

The tripods with up to 48mm diameter legs can be used with the Proaim D-33 Portable Camera Tripod Dolly.

Proaim Kite-22 Popular Package - 24.5ft Camera Jib Crane for Video Film Productions

Name: Proaim Kite-22 Popular Package - 24.5ft Camera Jib Crane for Video Film Productions
Brand: Proaim.be
SKU: KITE-22-POPULAR
Price: 2786.0 EUR
Availability: InStock

Senior Pan-Tilt Head, 150mm Bowl Tripod Stand & D-33 Camera Dolly

€2.786,00 - €2.786,00

€2.786,00

€2.786,00 - €2.786,00

€2.786,00

or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : KITE-22-POPULAR

Qty

AT A GLANCE

Payload

20 kg

Jib Length

24.5 ft

Includes

Proaim Kite-22 Telescopic Camera Jib Crane
Proaim 150mm bowl Jib Stand
Proaim D-33 Pro Dolly
Proaim Sr. Pan Tilt Head

Best For

Film Production
Music Videos
Event Shoots
Cinematic Crane Shots

Secure checkout | Fast delivery | 30-day returns | 1-year warranty

User Manual | ? FAQ | ▶ Watch Videos

Kite-22Camera crane popular package

24.5 ft of reach. Up to 20 kg.

An all-rounder, industry-standard robust camera crane that perfectly meets various production needs. The Proaim Kite-22 Popular Package pairs a 24.5ft camera jib crane for video film productions with a Senior roll pan tilt head, 150mm bowl jib stand and D-33 Pro Dolly.

Payload

20kg

45 lb

Max camera package, incl. pan tilt head.

Jib length

24.5ft

7.5 m

Total jib crane length.

Pan & tilt

360°

Senior pan tilt head

Variable speed, 6°/s to 51°/s.

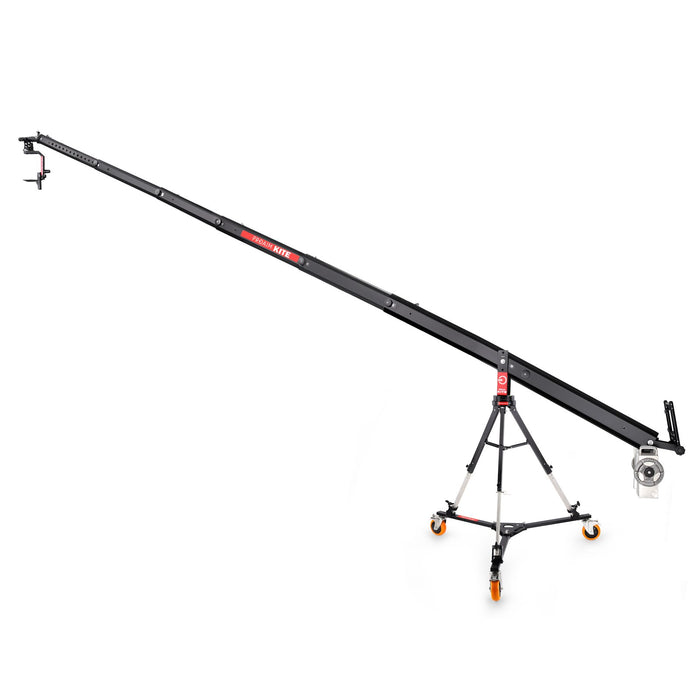

Proaim Kite-22 camera jib crane extended on the LW-150 stand and D-33 dolly outdoors

01Ultimate solution for professionals

One package, every cinematic angle.

Proaim unveils the Kite-22 camera jib crane to let you explore your cinematic world, giving you the whole spectrum of innovative ideas across various geographic scenarios and different in-studio angles.

The Kite-22 jib stabilizes your camera to create incredibly detailed, smooth and consistent shots. It is well-engineered equipment that includes a tripod stand, a portable floor dolly and a Dutch roll pan-tilt head, and its high-grade aluminum construction offers unbeatable strength and holds most camera setups.

24.5 ftJib crane length

20 kgMax camera package

4-in-1Crane, head, stand & dolly

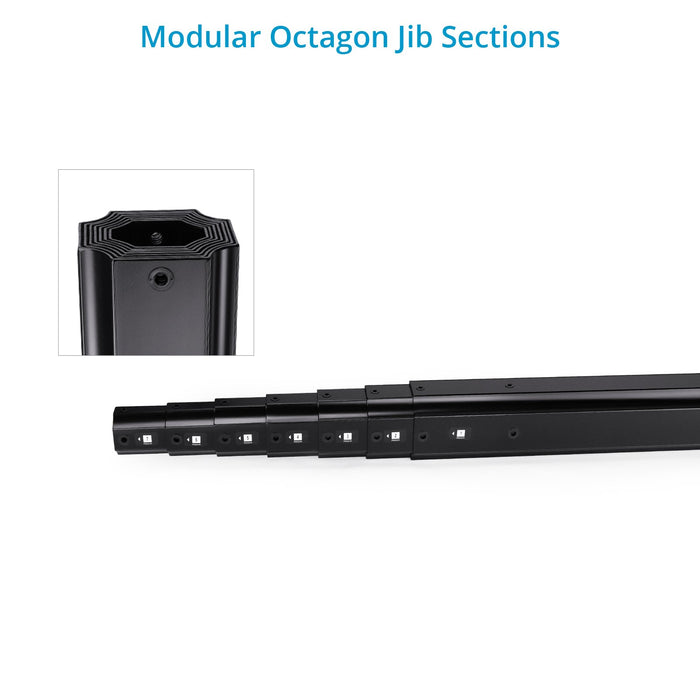

Kite-22 octagonal telescopic arm sections, with a close-up of the section end

02Seven sections. Five lengths.

Well-designed arm sections.

The modular octagonal arm sections reinforce the sturdiness of the Kite-22 camera jib crane. It is divided into seven sections, each measuring 4′ in length, overlapping by up to 1′ for varied lengths.

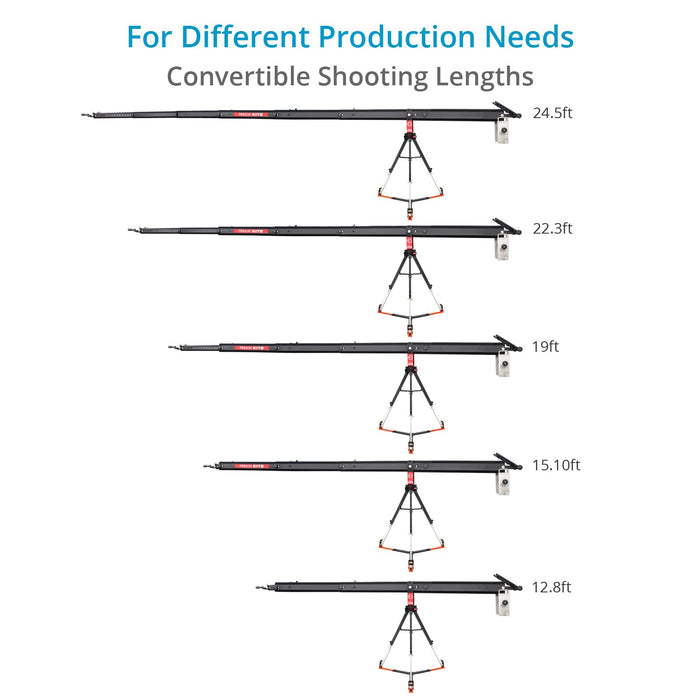

Arm length adjusts from 12.8 ft to 24.5 ft (24.5, 22.3, 19, 15.10 and 12.8 ft) to meet any professional demands. Each section is pulled from the previous one, so you can store unused sections in the tail as ballast weight and lighten your counterweight demand.

7Arm sections

4 ftEach section

Octagonal3 mm wall

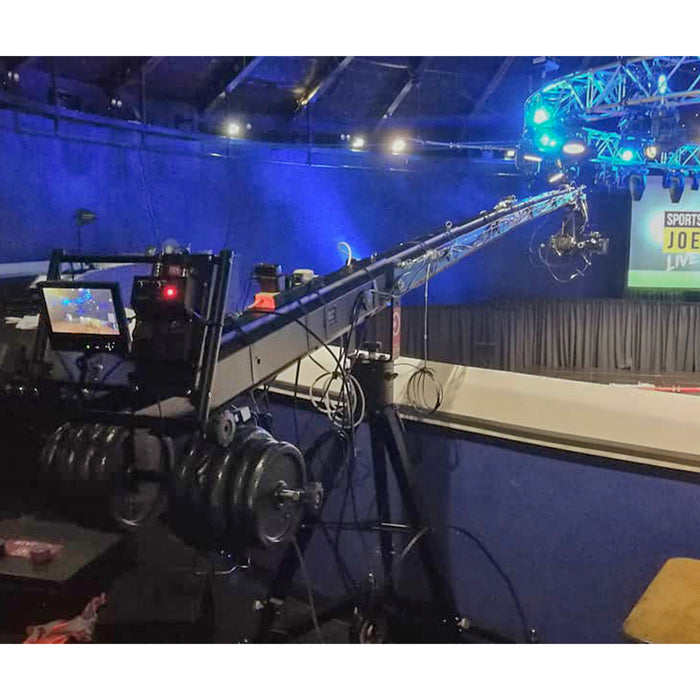

Proaim Kite-22 camera jib crane on the LW-150 stand and D-33 dolly on a film set

03Solid foundation with mobility

Steady on the stand. Mobile on the dolly.

The Kite-22 Popular package comes with the LW-150 heavy-duty jib stand to provide excellent stability to your heavy camera setups. It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots. The tripod supports a payload of up to 250 kg / 551 lb and is highly stable in use.

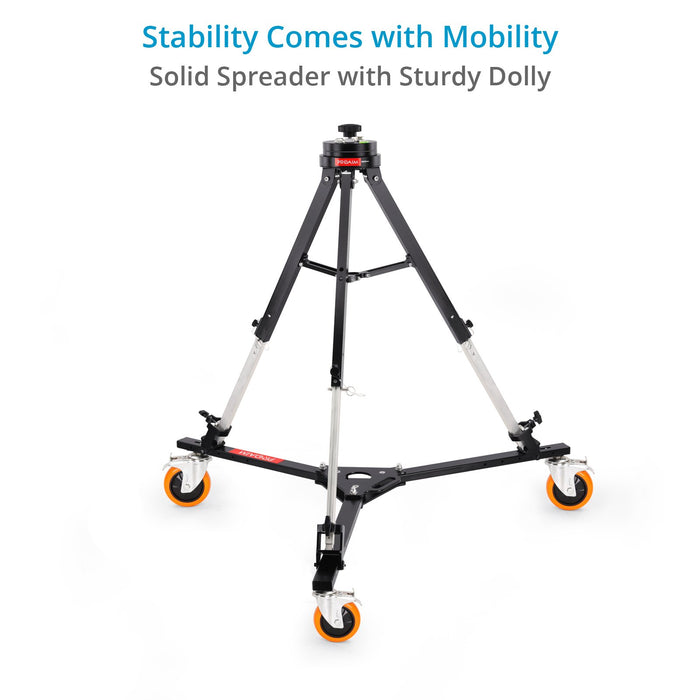

The included D-33 Pro Dolly, a compact and versatile pro video dolly, adds mobility to the crane, and the locks on its wheels ensure static, jerk-free shots and easy assembly.

250 kgStand capacity

150 mmBowl mount

Wheel locksJerk-free shots

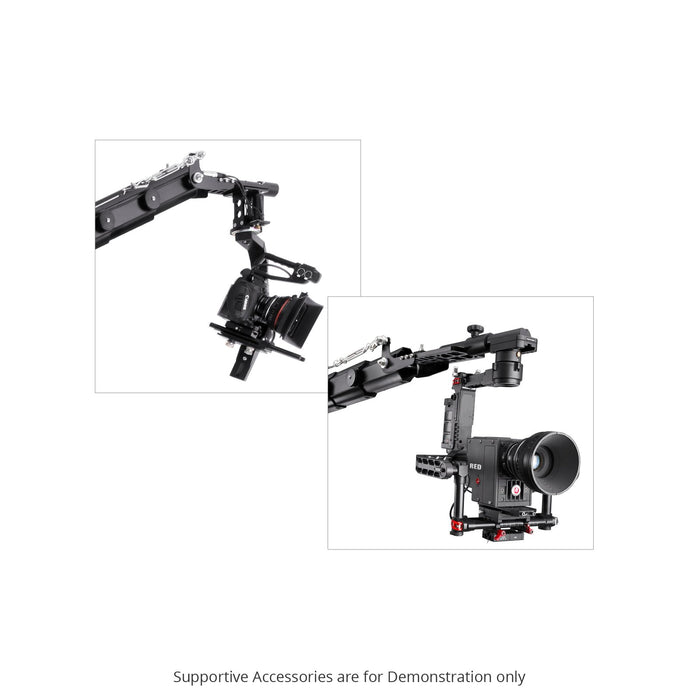

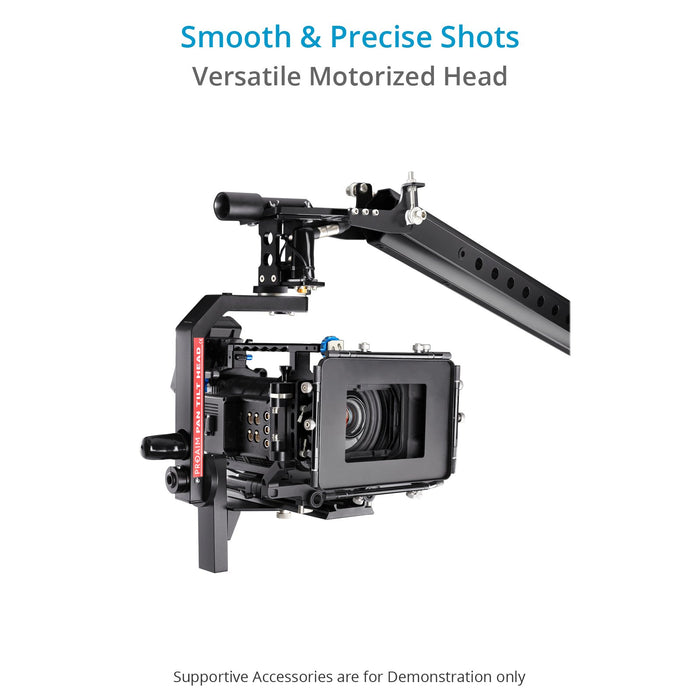

Proaim Senior roll pan tilt head on the Kite-22 camera jib crane

04Senior roll pan tilt head

Full 360° pan and tilt, in total control.

The Proaim Senior pan tilt head offers complete 360-degree pan and tilt movements while keeping your camera safe and secure. It is engineered to support cameras up to 7.5 kg / 16.5 lb with ease, and is creatively designed for jib crane arms, tripods and other remote operating situations that deliver increased production value.

The speed controller adjusts the speed of pan and tilt to suit the shot, and you can reverse the panning and tilting direction as and when required. Damping control prevents the head from stopping with a jerk, so you achieve smooth endings.

360°Pan & tilt

7.5 kgHead payload

DampingSmooth endings

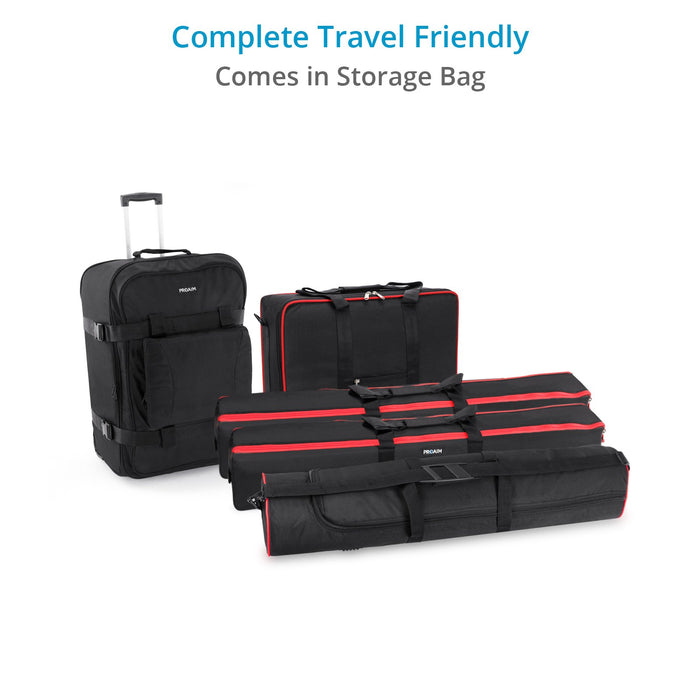

Kite-22 crane package in its customized storage cases

05Simplified carrying

Packed, protected, ready to travel.

The complete crane package fits in customized storage cases to ensure full protection, and the cases are easy to carry to different sets and locations.

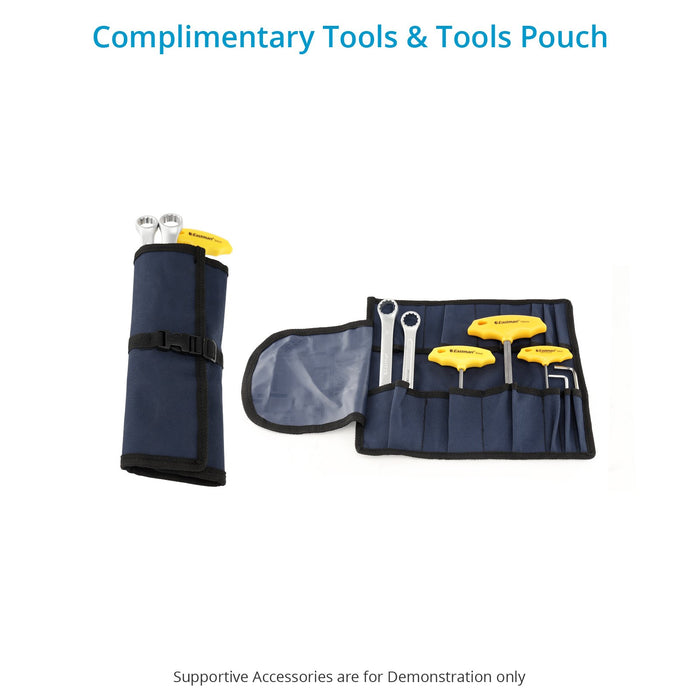

A ten-pocket tool roll pouch gives rapid access to Allen keys, wrenches and other hand tools, keeping them neatly organized so you can work quickly and efficiently.

ProtectedCustomized storage cases

10-pocketTool roll pouch

51″Jib carrying case

06In-action videos

See the Kite-22 Popular in Action

07Specifications

Kite-22 telescopic camera jib

Jib Arm Material	High Grade Aluminum HE30
Jib Arm Shape	Octagonal
Height from Ground	19ft / 5.8m
Jib Arm Thickness	3mm
Jib Crane Length	24.5ft / 7.5m
Jib each Arm length	4ft
Crane Pan Lock	NoNote: The knob can temporarily hold the jib in place when perfectly balanced, but it doesn't fully lock—any slight force will allow movement to resume.
Crane Tilt Lock	No
Finish	Black Powder Coated
Coupling Jib Arm Sections	A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System
Jib Arm Break downs to	7 Sections of 4ft each
Camera Platform Leveling	By Control Cable
Stress cable	High carbon steel with electro galvanized 4mm tested wire at 800kg
Multiple Alignment	Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve
Carrying Case size	51 inches
Jib Crane Weight	30 kg / 66 lb
Max Camera Package Load Capacity (including Pan Tilt Head)	20 kg / 45 lb

Senior pan tilt head

Pan-Tilt Material	High Grade Aluminum
Max Camera Package Load Capacity	7.5 kg / 16.5 lb
Pan movement	360°
Tilt movement	360°
Speed	Variable-controlled speed from 6 degree / sec (low speed) to 51 degree / sec (high speed)Slowest Speed : 2 minutes Highest Speed : 7 seconds
Motors	Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees
Gears	2- Silver Big Gears (Dia- 89mm) 2- Brass Small Gears (Dia- 14mm)
Minimum height of head	18.5 inches
Maximum height of head	26 inches
AC Adapter input	AC 100 - 240V ; output - DC 12V -2A
Cable Length	9 meter
Cable Connector	4-Pin XLR
Battery Cable	3 Meter long
Weight	7.2 kg / 15.8 lb
Bag Dimensions	50 x 35 x 19 cm

Joystick controller

Joystick Controller	2-Axis
Connectors	2x 4-Pin XLR male connectors
Pan/Tilt Direction	Yes
Upgraded with	Damping knob

Tripod stand (LW-150)

Material	Solid Aluminum
Hub Assembly Material	High Grade Aluminum HE30
Bowl Mount	150mm
Bowl Thickness	30.8mm
Stand Minimum Height With Bowl	2ft 2 inch
Stand Maximum Height With Bowl	3ft 2 inch
Distance from Center	22 inch
Weight of Stand	6.7 kg / 14.7 lb
Weight of Spreader	1.8 kg / 3.9 lb
Spreader	Max Opening : 24 inch Min Opening : 15 inch
Length of Hard Case	28.7 inch
Weighing Capacity	250 kg / 551 lb

D-33 dolly

Maximum Load capacity	400 kg / 881lb
Material	MS powder coated
Bolts	Steel bolts with washers
Wheels Diameter	148.7mm
Wheels Thickness	49.40mm
Wheel Material	Polyurethane
Central Distance	72cm
Dimensions	Folded (L x W x H) 84 x 28 x 22 cm Doorway Width - 144cm
Height From Ground	9 inch
Weight of Dolly	15.2 kg / 33.5 lb
Dolly Type	Three leg Floor dolly
Wheel Lock	Yes

Jib arm dimensions

Jib Arm Octagonal Tube	Outer Diameter	Inner Diameter
Ist Section(weight section)	164mm	156mm
2nd Section	154mm	146mm
3rd Section	144mm	136mm
4th Section	134mm	126mm
5th Section	124mm	116mm
6th Section	114mm	106mm
7th Section (Top Section)	104mm	96mm

Height range

Height of Jib Arm while Your Stand Adjusted at Maximum height of 4ft

Jib length	Height
24.5 ft	19 ft high
22.3 ft	16.6 ft high
19 ft	14.3 ft high
15.10 ft	12.2 ft high
12.8 ft	10 ft high

Balancing chart

Jib arm length	Self Balancing	When 2.2lbs weight is on the Head Plate
24.5 ft	about 121.5 lbs	around 133 lbs
22.3 ft	about 119 lbs	around 128 lbs
19 ft	about 116 lbs	around 122 lbs
15.10 ft	about 114 lbs	around 117 lbs
12.8 ft	about 112 lbs	around 115 lbs

Packing info

Case	Product Volumetric Weight (with packing)	Product Gross Weight (with packing)
Case 1	14kg / 32lb	22kg / 48lb
Case 2	12kg / 27lb	16kg / 37lb
Case 3	38kg / 82lb	27kg / 59lb
Case 4	12kg / 27lb	17kg / 40lb
Case 5	15kg / 35lb	20kg / 44lb
Case 6	8kg / 18lb	7kg / 16lb

In the box

01Proaim Kite-22 Telescopic Camera Jib Crane
02Proaim 150mm bowl Jib Stand with spreader (LW-150)
03Proaim D-33 Pro Dolly (D-33)
04Proaim Sr. Pan Tilt Head with Joystick Controller & Accessories (PT-SR)
05Customized Storage cases for Camera Jib Arm, Jib Stand & Accessories
06Tools and Tool Pouch/Wrap

User manual

User manualPDF ↓

Fast deliveryOn all orders

Quick supportEfficient customer service

Easy returnsUp to 30 days

1-year warrantyOn all products

Q&A

Ask a Question

Can unused arm sections help with counterbalancing?

Yes. Extra sections slide into the rear and act as ballast, reducing counterweight needs.
Does the pan-tilt head support controlled starts and stops?

Yes. Speed and damping controls help achieve smooth motion and clean shot endings.
Can the crane be moved while fully assembled?

Yes. The included dolly allows smooth repositioning, and wheel locks ensure stable static shots.
Which size of Tripod legs can fit in the D-33 dolly?

The tripods with up to 48mm diameter legs can be used with the Proaim D-33 Portable Camera Tripod Dolly.
Could it be controlled by a computer

The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.
Can the Sr. Pan Tilt Head be moved by hand if i don\'t want to use the motor?

Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.
How to assemble Kite-22 crane, i am very confused ?

"Here is the assembling video of the Kite 22 Crane Jib:
https://www.dropbox.com/s/ajrtm7ywfsr7f5v/Kite-22-crane-assembly-Final.mp4?dl=0"
Hello, is screen includes in the crane packages ?

The Proaim Camera Crane Packages does not include the monitors or screens.
