Hi, can I use this item with a rig that wheights less than 5kg? I own a Canon c70.

Yes, you can mount Canon c70 camera on the Flycam Zest Pro Electronic Video Camera Stabilizer with Vista-II Arm Vest.

Does the HDMI connections from the top sled to the bottom sled support 4K or is it only 1080 HD?

The Proaim HDMI splitter box is compatible with 4K@30hz , so please give input to this splitter from camera through hdmi cable and can take 4K output video from splitter.

Is the Adapter bushings of Flycam Vista-II Stabilizer Arm compatible with the Tilta Float?

No, the Adapter bushings of Flycam Vista-II Stabilizer Arm will not be compatible, because the adapter size of tilta float is around 12-13 mm and the Size of the mounting post of the Vista-II Stabilizer Arm is 16mm

Does this bundle come with a docking bracket or do I have to buy it separately?

Docking Bracket is not included in the Zest Pro Electronic Video Camera Stabilizer. ST-DB can be purchased separately.

What are the mm size inputs/output on the splitter, trying to run a cable from the bottom when the splitter/battery sits through the center shaft to a dummy battery with a 4.0mm/1.7mm DC female connection? to power my camera.

The sizes of connectors are 5.5*2.5mm and 3.5*1.3mm.

If the Zest weight 7kg and the arm can handle 15kg i have only 8kg for camera and accessories? if i use the Zest i need to put red springs (6 a 15kg) always?

Yes, you are right if you are using zest, you can only mount the camera and accessories up to 8kg, and also you will have to use the red springs.

Flycam Zest Pro Electronic Video Camera Stabilizer with Vista-II Arm Vest

Name: Flycam Zest Pro Electronic Video Camera Stabilizer with Vista-II Arm Vest
Brand: Proaim.be
SKU: VSTA-ZPRO-02
Price: 1335.0 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

For Video & Film Cameras

€1.335,00 - €1.335,00

€1.335,00

€1.335,00 - €1.335,00

€1.335,00

or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : VSTA-ZPRO-02

Qty

AT A GLANCE

Payload

5-15 kg

Chest & Waist Size

Chest Size: 38 - 52 inches
Waist Size: 28 - 60 inches

Compatible With

Camera Gimbals and Handheld Stabilization Setups

Best For

Moving Shots
Vibration Reduction
Handheld Stabilization
Dynamic Camera Movement

Secure checkout | Fast delivery | 30-day returns | 1-year warranty

User Manual | ? FAQ | ▶ Watch Videos

Zest Pro stabilizerVista II arm & vest

Handheld freedom. Up to 15 kg of cinema rig.

The Flycam Zest Pro electronic video camera stabilizer with Vista-II arm & vest is a complete body-mounted system for video & film cameras: Zest Pro sled, Vista II arm and Vista II vest, in a future-proof and modular design that guarantees a perfect workflow. It offers effortless balancing, a precise gimbal, easy operation and ergonomic design, built for moving shots, vibration reduction, handheld stabilization and dynamic camera movement, with blue and red arm springs covering payloads from 2 to 15 kg.

Blue springs

2–6kg

4.4–13 lb

Lighter camera builds on the Vista II arm.

Red springs

6–15kg

13–33 lb

Heavier builds on the Vista II arm.

Zest Pro payload

5–15kg

11–33 lb

Load capacity of the Zest Pro stabilizer sled.

Operator filming with the Flycam Zest Pro stabilizer, Vista II arm and vest

01Most adaptable stabilizer system

Quick to adapt, ready for any set.

A professional handheld stabilizer that quickly adapts to industry-standard cameras and accessories. Designed for HD broadcast, feature film and every demanding stabilization job on set. Strong yet lightweight, it is built to operate for years to come.

¼″ & ⅜″Camera mounting screws

CNCHigh-grade aluminum sled

Broadcast& feature film ready

Operator balancing the Flycam Zest Pro stabilizer and micro-balance camera platform

02Easy balancing with micro-balance mechanism

Micro-balance your rig in minutes.

The camera platform's micro-balance system adjusts horizontal balance precisely and quickly: knurled knobs allow front-to-back and side-to-side adjustments, and two bubble levellers make levelling easy. The telescopic centre post with laser-engraved guide scale markings helps with vertical balancing, and the adjustable base platform with weight discs lets you achieve perfect dynamic balance.

2Bubble levels on the platform

62–100 cmTelescopic centre post

20Weight discs for fine-tuning

Flycam Zest Pro 3-axis gimbal and knurled handle

03Precise gimbal with comfortable handle

Ultra-smooth in your hand.

A precisely balanced 3-axis gimbal with ball bearings gives ultra-smooth operation. The position-adjustable knurled grip makes low-mode operation easy and secure, and the newly designed handle gives better holding and swivelling for an efficient workflow.

3-axisBall-bearing gimbal

KnurledPosition-adjustable grip

Low modeEasy, secure operation

Operator wearing the Flycam Vista II stabilizer vest with the Zest Pro and a top-mounted monitor

04Monitor mounting

Put the monitor exactly where you need it.

Attach the monitor mount on either the 200 mm or 450 mm rods, as your setup requires. The 200 mm rod system adjusts in height, so you can position it wherever you need on the central post, and the unique pivot mechanism of the monitor clamp enables 360° rotation and angle adjustment.

200 / 450 mmRod mounting options

360°Rotating pivot

TiltAngle adjustment

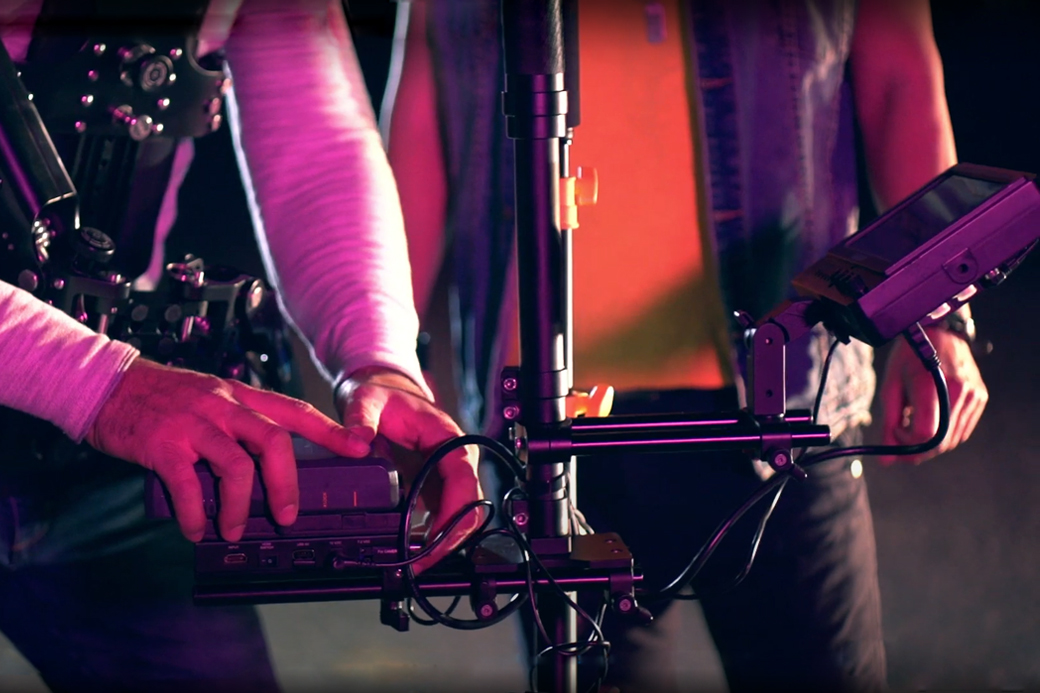

Flycam Zest Pro HDMI splitter with battery plate

05HDMI splitter

Power and video for your monitors.

The HDMI splitter with battery plate has multiple output ports to power LCD monitors and other accessories. It uses high-class electronic components and easily fits 15 mm rods.

4DC outputs: 15, 12, 7.2 & 5 V

LCDMonitors & accessories powered

15 mmRod fitting

Operator wearing the Flycam Vista II vest and arm with the Zest Pro stabilizer

06Experience relief with ergonomic Vista II vest

Comfort that lasts the whole shoot.

The foam-padded Vista II vest in highly breathable material gives excellent comfort, a perfect fit and unrestricted movement. Easy height adjustment and Velcro straps give a comfortable fit for all body types, and push-fit buckles let you remove the vest quickly during short breaks. A proprietary arm-to-vest connector lets you adjust the arm's angle relative to the vest.

38–52″Chest size

28–60″Waist size

Push-fitQuick-release buckles

07Naturally smooth shots with Vista II arm

Naturally smooth shots through the whole lift.

The lightweight, dynamic Vista II arm is designed to carry payloads up to 15 kg / 33 lb and optimise performance throughout its lifting range. Dual springs give quick, precise and smooth operation, and the spring tension adjustment knob sets the tension to the weight of your setup.

21″Maximum arm length

Dual-sectionCNC-machined arm

Tension knobAdjustable lift

Operator using the Flycam Zest Pro system

08User-friendly design for easy operation

The freedom of handheld, without the shake.

Zest Pro lets you shoot even while going to extremes, like running up and down stairs or travelling over rugged terrain. Its simple design makes it convenient and easy to use, and it comes in a foam-padded bag to carry around easily.

Free motionHandles extreme movement

3-pieceSled, arm & vest

Padded bagIncluded for transport

09Highlights

Details that save time on set.

V-mount battery plate

Included in the box.

Laser-marked post

Laser markings on the telescopic centre post.

Knurled balance knobs

On the micro-balance camera platform for precise horizontal balance.

0.125 kg weight discs

20 discs, 2.5 kg in total, on the adjustable base platform.

Full cable kit

HDMI, SDI, DC and RC-to-BNC cables in the box.

Velcro height adjust

Easy vest height adjustment with Velcro straps.

10In action

See the Zest Pro in action.

11Specifications

Zest Pro stabilizer

Construction	High-grade CNC aluminum
Load capacity	5–15 kg / 11–33 lb
Head dimensions (X, Y)	8 × 17 cmWith lever
Camera mounting	¼″-20 & ⅜″-16 screws
Centre post	Ø30 mm main · Ø25 mm telescopicHeight range 62–100 cm / 24–39″
Counter weights	20 pcs · 2.5 kg / 5.5 lb total0.125 kg / 0.27 lb each
Base platform rods	15 mm dia.200 mm & 450 mm lengths
HDMI splitter outputs	15 V · 12 V · 7.2 V · 5 V
Product weight (without packing)	7.36 kg / 16.2 lb
Product weight (with packing)	9.94 kg / 21.91 lb

Vista II arm

Construction	High-grade CNC-machined aluminum
Capacity	Up to 15 kg / 33 lb
Design	Dual-section arm
Maximum length	21″ / 53.3 cm
Spring payload	Blue: 2–6 kg / 4.4–13 lbRed: 6–15 kg / 13–33 lb
Weight (without packing)	4 kg / 8.8 lb

Vista II vest

Construction	CNC aluminum & synthetic breathable fabric
Chest / waist	38–52″ / 28–60″
Weight (without packing)	2.87 kg / 6.3 lb

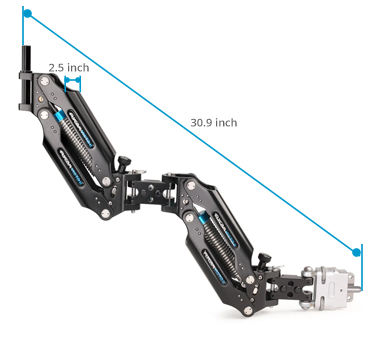

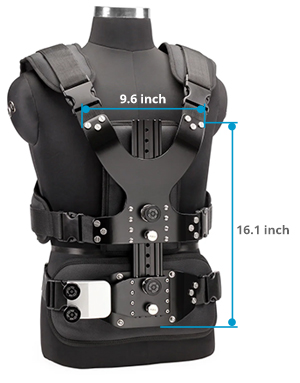

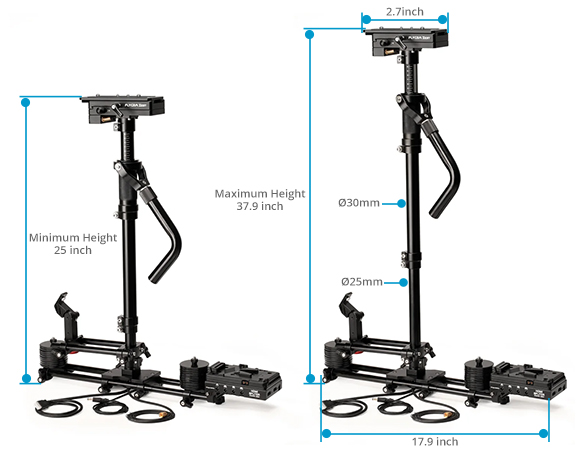

Dimensions

In the box

01Flycam Zest Pro telescopic center post
02Battery plate: V-Mount
03Weight plates: 20pcs
04Monitor mount
052 × 200mm inbuilt monitor rods
06Weight rods: 2 × 300mm male rods
072 × 150mm female rods
08HDMI/SDI/DC power cables (in-built)
09Extra cables: DC power, HDMI male to male, RC to RC male, RC male to BNC male cable
102 × RC female to BNC male connectors
11Vista II camera stabilizer arm
12Vista DV camera stabilizer vest
13Storage bags

Zest Pro user manualPDF ↓ Vista II arm & vest user manualPDF ↓

Fast deliveryOn all orders

Quick supportEfficient customer service

Easy returnsUp to 30 days

1-year warrantyOn all products

Q&A

Ask a Question

If the Zest weight 7kg and the arm can handle 15kg i have only 8kg for camera and accessories? if i use the Zest i need to put red springs (6 a 15kg) always?

Yes, you are right if you are using zest, you can only mount the camera and accessories up to 8kg, and also you will have to use the red springs.
What are the mm size inputs/output on the splitter, trying to run a cable from the bottom when the splitter/battery sits through the center shaft to a dummy battery with a 4.0mm/1.7mm DC female connection? to power my camera.

The sizes of connectors are 5.5*2.5mm and 3.5*1.3mm.
Is the Adapter bushings of Flycam Vista-II Stabilizer Arm compatible with the Tilta Float?

No, the Adapter bushings of Flycam Vista-II Stabilizer Arm will not be compatible, because the adapter size of tilta float is around 12-13 mm and the Size of the mounting post of the Vista-II Stabilizer Arm is 16mm
Does the HDMI connections from the top sled to the bottom sled support 4K or is it only 1080 HD?

The Proaim HDMI splitter box is compatible with 4K@30hz , so please give input to this splitter from camera through hdmi cable and can take 4K output video from splitter.
Hi, can I use this item with a rig that wheights less than 5kg? I own a Canon c70 ?

Yes, you can mount Canon c70 camera on the Flycam Zest Pro Electronic Video Camera Stabilizer with Vista-II Arm Vest.
