Proaim Paladin Professional Camera Dolly
VERSATILE. COMPACT. STABLE. FLEXIBLE.
Multifunctional Camera Support Modular System With A Wide Range of Assembling Possibilities!
Professional Dolly Kit For Your Daily Needs On Set.
THE SMART INVESTMENT FOR YOUR FUTURE!
Proaim has recently unveiled Paladin Dolly Kit which is a modular construction kit that provides various possibilities of composition. The super heavy-duty product is well-matched with most of the Proaim accessories range via a central mounting point which is Euro/Elemac Base Mount Adapter. The Universal Dolly is equipped with Levelling legs, Studio wheels and Track wheels. It is a rigging tool for building various sized bazooka bases, track dollies, as well as customized camera mounts, built on set to suit the operational requirements. Its components are of high-grade CNC aluminum ensuring protection, durability and stability. It will carry a huge amount of weight & remain absolutely rigid in operation. You can mount your Paladin Dolly Kit with three or four arms, on studio wheels or levelling legs, with a platform or without, on tracks or on the floor – whatever fits your needs!
"WHAT YOU SEE IS WHAT YOU GET"
Product Revised on 28-Jan-2020

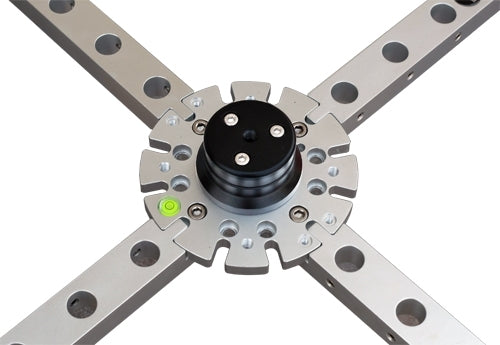

EURO/ELEMAC BASE MOUNT CENTRE PLATE
The centre plate is available as a Euro/Elemac base Mount Adapter accepting Bowl adapters, Telescopic / Fixed Bazooka as well as Camera Height Risers. The identical arms can be mounted in 12 positions, each 30° out of 360°, at the plate by M12 allen screws. Simultaneously 4 arms can be mounted.
The CNC aluminum constructed Steering Push Pull Bar provides full range of movement for greater turning flexibility. Its Telescopic length is secured with a knob. It tilts down 270° & stays where you leave for more convenience.
The set of 4 plates are constructed with high-grade aluminum to provide maximum durability and stability. These plates can be easily attached/detached and you can use the dolly with or without platform, as per your requirements.
PALADIN ON STUDIO WHEELS
The kit is suitable for a quick and uncomplicated use on plain studio floors. The silent and smooth studio wheels are equipped with brakes. It can be used with either three or four arms. The 28 mm receiving bores allow a wheel change in seconds. It can also be utilised as a Table Dolly as well as a Hi-Hat depending on the shooting requirements.
PALADIN AS TRACKING DOLLY
The kit is suitable for an even run on standard track rails for passionate movement via sturdy tracking wheels. The curlings of the wheels are made of hard rubber and its fitting is easily possible in a short time, by the universal receiving bores.
PALADIN ON LEVELLING LEGS
The levelling legs allow equalising small roughness in the floor as well as bigger holes in the surface. Counter nuts guarantee a stable positioning and the bottom pans are pivoted by ball ends.
The Supportive accessories are for demonstration purpose only.
- Load Capacity on track & floor : 200kg/ 440lb
- Hi-Hat: 250kg/ 550lb
- Track Wheel Dia : 53mm x 32mm
- Floor Wheel Dia : 100mm x 32mm
- Central Mounting: Euro/Elemac Base mount
- Standard Arm Size : 36cm
- Allen Key: 8mm & 3/16''
- Complete Product Weight with Hard case: 34kg/ 74.8lb
- 1 x Central Plate with Euro/Elemac Adapter
- 4 x Floor Wheel
- 4 x Track Wheel
- 4 x Levelling Feet
- 4 x Standard Arm
- 4 x End piece for arm
- 4 x Plates & Push Pull Bar with Foam Handle (PLDN-ACC) (Added on 28-Jan-2020)
- 1 x Hard Case
