Proaim Grip Master Vibration Isolator Magnetic Car Mount

For 3-Axis Camera Gimbals - DJI Ronin, Movi Etc.

€1.316,00
SKU : CM-GMST-00
Description

Ready for Every Action!
Vibration Isolator Magnetic Gripper System for 3-Axis Gimbals
Provides Ultimate Experience In Vehicular Stabilization.

Quick Installation, Modular, Safety for Car, Good Quality of Shooting & Easy Transportation

Proaim Grip-Master Cinema Car Mount!

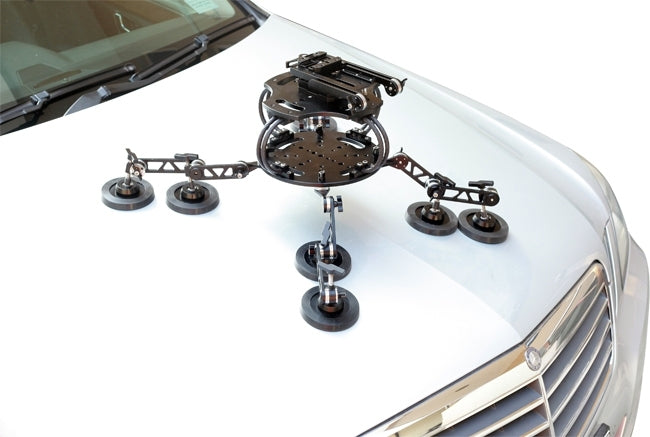

Want to mount a heavier cinema camera on a car, truck, boat or any non-porous surface? Proaim Grip Master, a multipurpose modular magnetic car grip, promises to deliver a wide variety of smooth, professional looking shots in conjunction with some of the most popular 3-axis gimbal stabilizers such as the DJI Ronin/Ronin M/Ronin MX and Movi models, when attached to a vehicle. This is an all-in-one solution and usually requires no additional grip and rigging hardware. It can be deployed to its standard configuration and ready for your gimbal in under one minute. The maximum payload at still position is 30kg/66lb while at running position is 15kg/33lb; which is more than enough to handle a DJI Ronin gimbal along with a camera body and a few additional accessories on top; and the vehicle driving at the maximum speed of 200km/h. What makes the Grip Master markedly unique is the versatility of the parts and the degree of fine-tuning and customization possible.

Car Suction Mount Gripper for DJI Roning
Logo
Video is for demonstration only
Actual Product may vary due to Product Improvements

POWERFUL MAGNETIC SUCTION CUPS

CNC Aluminum constructed Suction Cups with Strong magnets allow quick & easy mounting of gripper to your car/vehicle. It is equipped with special protective silicone pads to protect your vehicle from scratches or other damages.

Proaim Grip Master comes with 8 Magnetic Suction Cups with 6 magnets of diameter 25mm in each Suction Cup. There are a total 48 high power N52 neodium magnets with 500kg/1100lb pull power. It provides very strong gripping, which is necessary while working with expensive filmmaking equipment. You can use the number of Suction cups as per your set-up requirements. This powerful magnet gripping system completely protects your Camera, Gear & Car/Vehicle.

Gripper suction cup for Ronin car mount

STABILIZED GIMBAL VIBRATION ISOLATOR

This unique Vibration Isolator helps remove vibration and mechanical stress from camera gimbals mounted on vehicles. The Isolator system absorbs Jerky movements of the vehicle by utilizing strategically configured wire cables to support the gimbal and allow it to absorb inertial movements. This system is capable of leveling down outcome of vehicle moving on uneven road or rough terrains. The thickness of the wire cable is 5/16".

camera car mount with isolator and safety belt

The Isolator’s wide absorption range removes high frequency vibrations, while dampening low frequency oscillations. High frequency vibrations can be caused by motors, rotor blades, propellers, and anything that has fast moving parts. These can typically cause rolling shutter or 'jello' issues in the video. Lower frequency vibrations can be caused by a vehicle driving off road, or quick changes in direction. These movements can cause gimbal motors to 'slip' and throw off the stabilization. Also, if the camera is hard-mounted to the vehicle, any jerky moment will create huge amounts of stress on the gimbals bearings which cause permanent damage. The Vibration Isolator allows the gimbal to shift around and therefore reduce stress.

car mount with isolator

Wire modules can be removed for lighter camera systems

The Vibration Isolator is customizable to hold multiple payloads ranging in weight. This is achieved by removing the cable from module while using with lightweight gear.

RONIN MOUNTING PLATE

The quick release plate adapter for DJI Ronin, Ronin M & Ronin MX allows you to mount your DJI Ronin conveniently and quickly. It is also compatible with standard grip-related cheese plates.

dslr car mount

MULTI ANGLE RONIN WEDGE PLATE

It offers extreme versatility when shooting angled or vertical moves and is flawlessly adjustable from 0° to 90°.

camera gripper

ADJUSTABLE STEEL BEARINGS

Due to the adjustable steel bearings, you can easily control the angle of each arm which gives extra flexibility and allows users to attach the platform at multiple angles to virtually any part of the vehicle itself.

car suction cups

CUSTOMIZABLE

This modular-designed gripper with flexible rosette arms, allows you to build multiple setups as per your requirement, on the door or as close as possible to ground. Large, medium, small – three lengths of arms give creative mounting possibilities.

camera car Gripper mount
New Column New Column

SAFETY BELT


The gripper can be secured on your vehicle with the tough-gripped safety belt.

IMAGE GALLERY

car mount with safety belt
car mount with safety belt
car mount with safety belt

The Supportive accessories are for demonstration purpose only.

Specifications

- High-grade CNC Aluminum Construction
- Magnets Pulling Force: 500kg / 1100lb
- Load Capacity Still: 30kg/66lb
- Load Capacity Running: 15Kg/33lb
- Max speed: 200 km/h
- Gimbal Mounting Plate for DJI Ronin / Ronin-M / Ronin-MX brushless gimbals INCLUDED
Note: Compatible with other Gimbals, but other mounting plates are Not Included.
- Product Weight: 9.8kg / 21.6lb (Complete with belt)
- Box Dimensions: 66cm x 55.5cm x 41cm
- Gross Weight: 26.6 Kg / 58.5lb
- Volumetric: 35 kg / 77lb

Included

- 8 x Magnetic Suction Cups
- 8 x Silicone Dust Covers
- 4 x Small Rosette Arms (90mm)
- 4 x Medium Rosette Arms (120mm)
- 4 x Large Rosette Arms (150mm)
- 2 x Safety Belts
- Gimbal Vibration Isolator
- Ronin Mounting Plate
- Multi Angle Ronin Wedge Plate
- Flight Transport Case

Videos
User Manual
New Column New Column

Recently Viewed Items

Incredible Vehicular Stabilization!

Proaim Grip Master Vibration Isolator Magnetic Car Mount

Integrated Vibration Isolator

Removes high-frequency vibrations and dampens low-frequency oscillations. It gives you naturally smooth shots from any moving Platform.

Proaim Grip Master Vibration Isolator Magnetic Car Mount

A Complete Carrying Solution

Modular System with a Convenient Flight case simplifies travel and storage and makes it possible to take Grip Master as hand-luggage.

Proaim Grip Master Vibration Isolator Magnetic Car Mount

Compatible with All Major Gimbal Systems

The Grip Master comes equipped with a Quick Release for Ronin M/MX. However, it has all the necessary threading so you can adapt it to any major Gimbal System.

See how the Grip Master Works

        Specifications

Construction

  High-grade CNC Aluminum

Magnets Pulling Force

  500kg / 1100lb

Load Capacity

  Still: 30kg/66lb
  Running: 15Kg/33lb

Max speed

  200 km/h

Gimbal Mounting Plate

  For DJI Ronin / Ronin-M / Ronin-MX brushless gimbals     INCLUDED
  Note: Compatible with other Gimbals, but other mounting   plates are Not Included.

Product Weight

  9.8kg / 21.6lb (Complete with belt)

Product Weight (with packing)

  Gross Weight: 26.6 Kg / 58.5lb

Box Dimensions

  66cm x 55.5cm x 41cm

In the Box

  8 x Magnetic Suction Cups with Silicone Dust Covers
  4 x Small Rosette Arms (90mm)
  4 x Medium Rosette Arms (120mm)
  4 x Large Rosette Arms (150mm)
  2 x Safety Belts
  Gimbal Vibration Isolator
  Ronin Mounting Plate
  Multi Angle Ronin Wedge Plate
  Flight Transport Case

User Manual

Robust, Stable and Secure

Proaim Grip Master comes equipped with 8 Powerful Magnets that ensure a very strong grip necessary for working with expensive moviemaking equipment. Made by using high-grade Aluminum Alloys, this smart, reliable and robust design is capable of holding 15kg/33lb payload.

To save your car from scratching, chipping and other car surface damages, Our Proaim Grip Master comes with specially designed Protective Silicone Pads. The Grip Master comes with 2 Safety Belts to Setup safety lines for your Gimbal and Camera Setups.

Proaim Grip Master Vibration Isolator Magnetic Car Mount
Proaim Grip Master Vibration Isolator Magnetic Car Mount

Smart Design for Quick Setups

The Gripper usually requires no additional grip and rigging hardware. Just Pop it out from the box and place it on any Metal Platform.
Each joint has an Arri Rosette which makes it extremely simple to adjust the position of the magnets to curves and angles of different platforms.

Quick Levelling and Setup Mounting

The Grip Master comes equipped with a Multi Angle Wedge plate to level the gimbal and camera setup quickly.

Included is a Ronin M/Mx Quick Release Plate so you can easily attach Ronin M/MX to the Grip Master. For all other Gimbal system we have Quick Release plates available which can be mounted on the Gripper easily.

Proaim Grip Master Vibration Isolator Magnetic Car Mount
Proaim Grip Master Vibration Isolator Magnetic Car Mount

Get the Smoothest Shots even at High Speed

The Wire Isolator incorporated into the Proaim Grip Master absorbs the shocks, bumps and high-frequency vibrations while also damping low-frequency oscillations by utilizing strategically configured cables. You can be going as fast as 200km/h and the isolator in conjunction with the camera gimbal makes sure you get incredibly smooth shots even on rough terrains.

Protect your Gimbal

If you hard-mount a gimbal setup to a moving platform, any Jerky movement creates an Enormous amount of stress on the Motors and Bearings of the Gimbal as it tries to stabilize the camera. High-Frequency Vibrations created by moving parts such as motors, rotor blades or propellers and Low Frequency are all absorbed by the sudden changes in direction are all absorbed by the Wired Isolator. This reduces the stress on your gimbal motors that now have to work only to stabilize a softened range of vibrations which in turn increases the life of your Gimbal.

Proaim Grip Master Vibration Isolator Magnetic Car Mount
